Inspection Procedure

CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks on map disc.

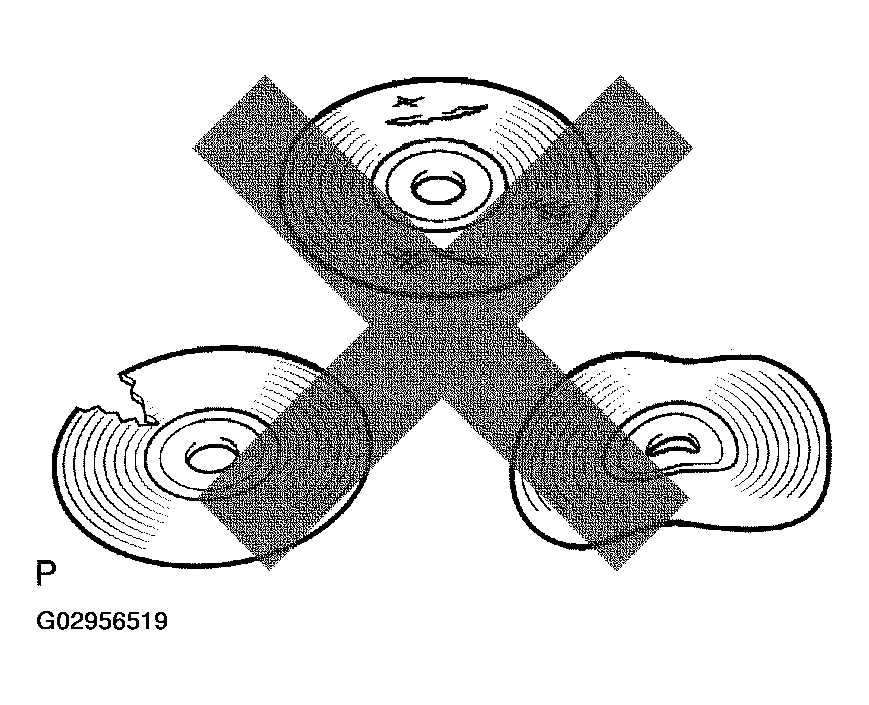

  Fig 1: Checking Map Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: Go to next step.
SET DESTINATION
1. Set another destination and check if the system can calculate the route correctly.
  OK: Route can be correctly calculated.
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
2. OK: NORMAL OPERATION
