Power Door Lock Control System - Diagnostics: Location

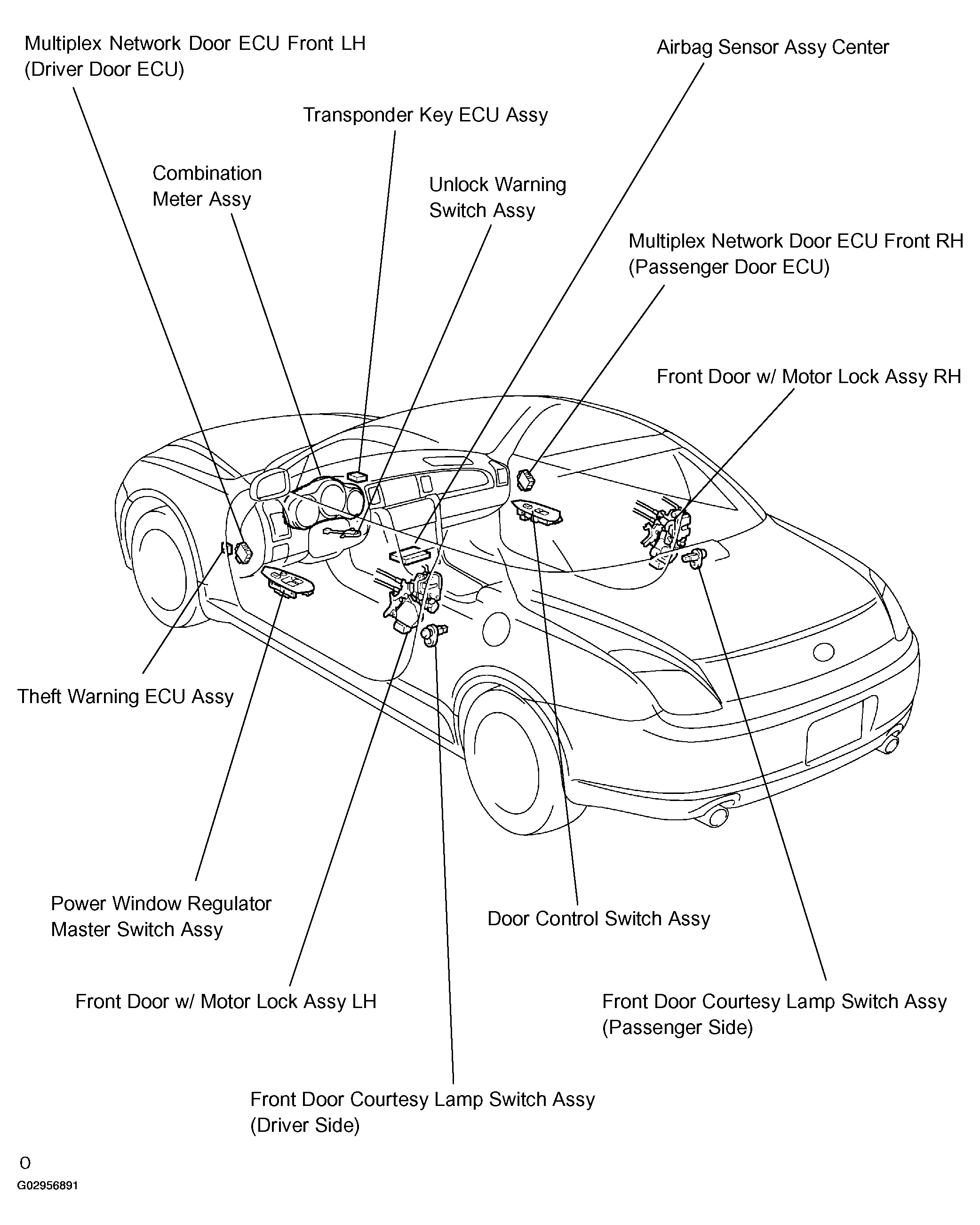

Fig 1: Locating Power Door Lock Control System
G02956891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
