Wireless Door Lock Control System - Diagnostics: Registration

HINT:

• Add mode is used to register new recognition codes while still retaining codes already registered. This mode is used when a new transmitter is added. If the number of registered codes exceeds 4, the previously registered codes will be erased, starting from the first registered code.
• Rewrite mode is used to erase all the previously registered recognition codes in order to register all-new recognition codes. This mode is used when the transmitter or the door control receiver is replaced.
• Confirmation mode is used to confirm how many recognition codes have already been registered before another recognition code is registered.
• Prohibition mode is used to erase all the registered codes and disable the wireless door lock function. This mode is used when the transmitter is lost.
• All of the following registration procedures must be performed in order.

1. REGISTER RECOGNITION CODE

   When using the hand-held tester:

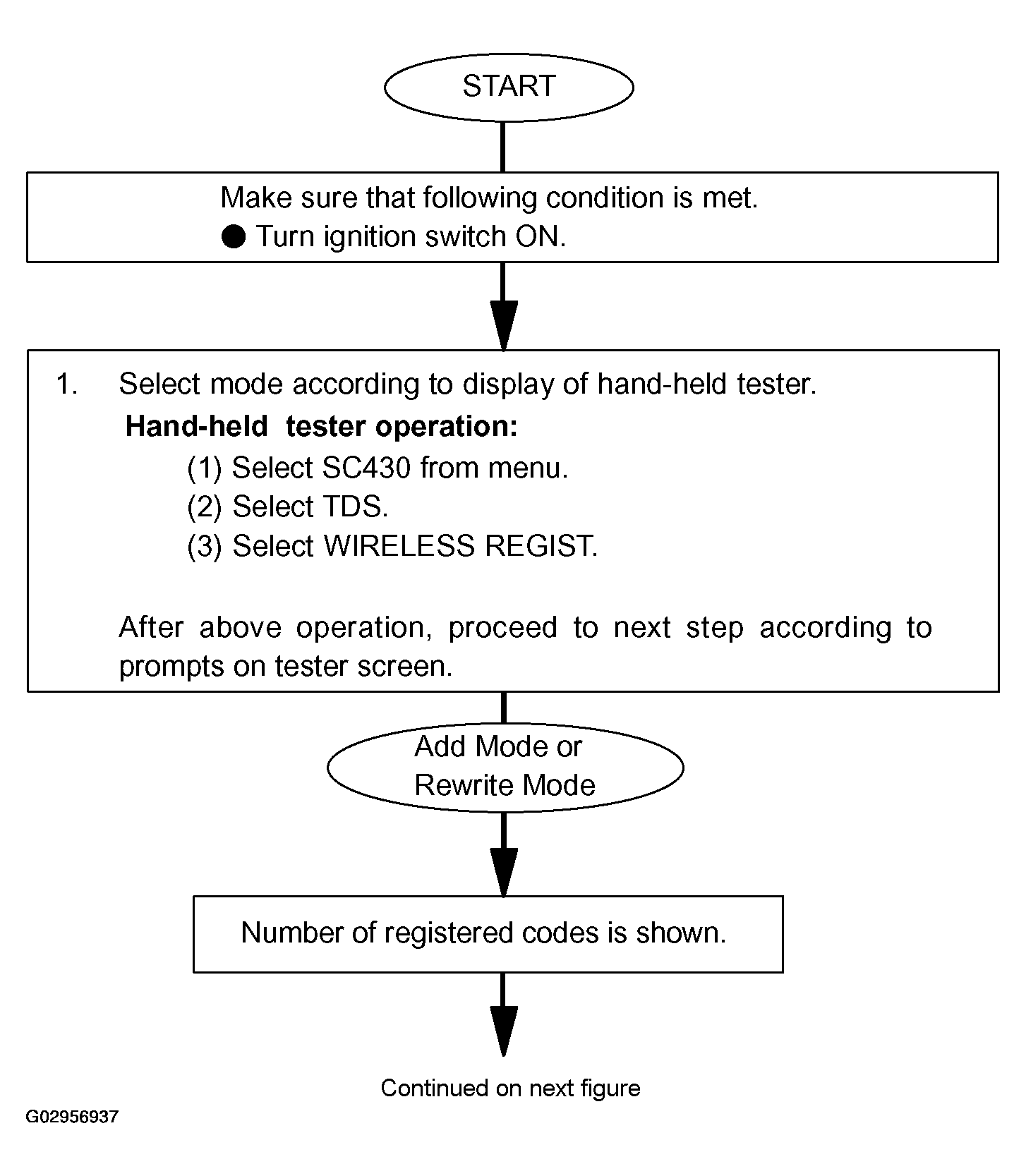

   Fig 1: Register Recognition Code Flow Chart - Using Hand-Held Tester (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

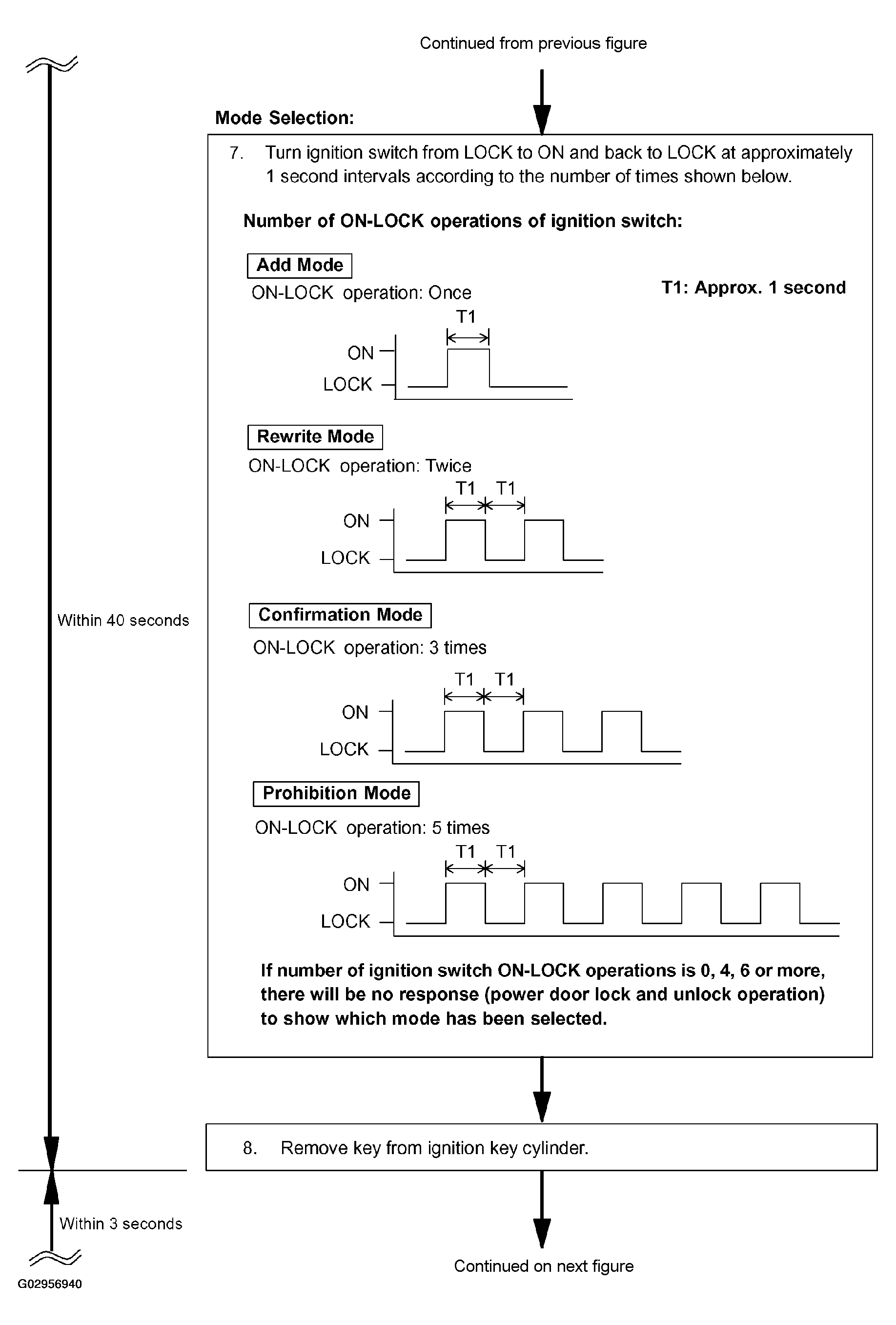

   Fig 2: Register Recognition Code Flow Chart - Using Hand-Held Tester (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   When not using the hand-held tester:

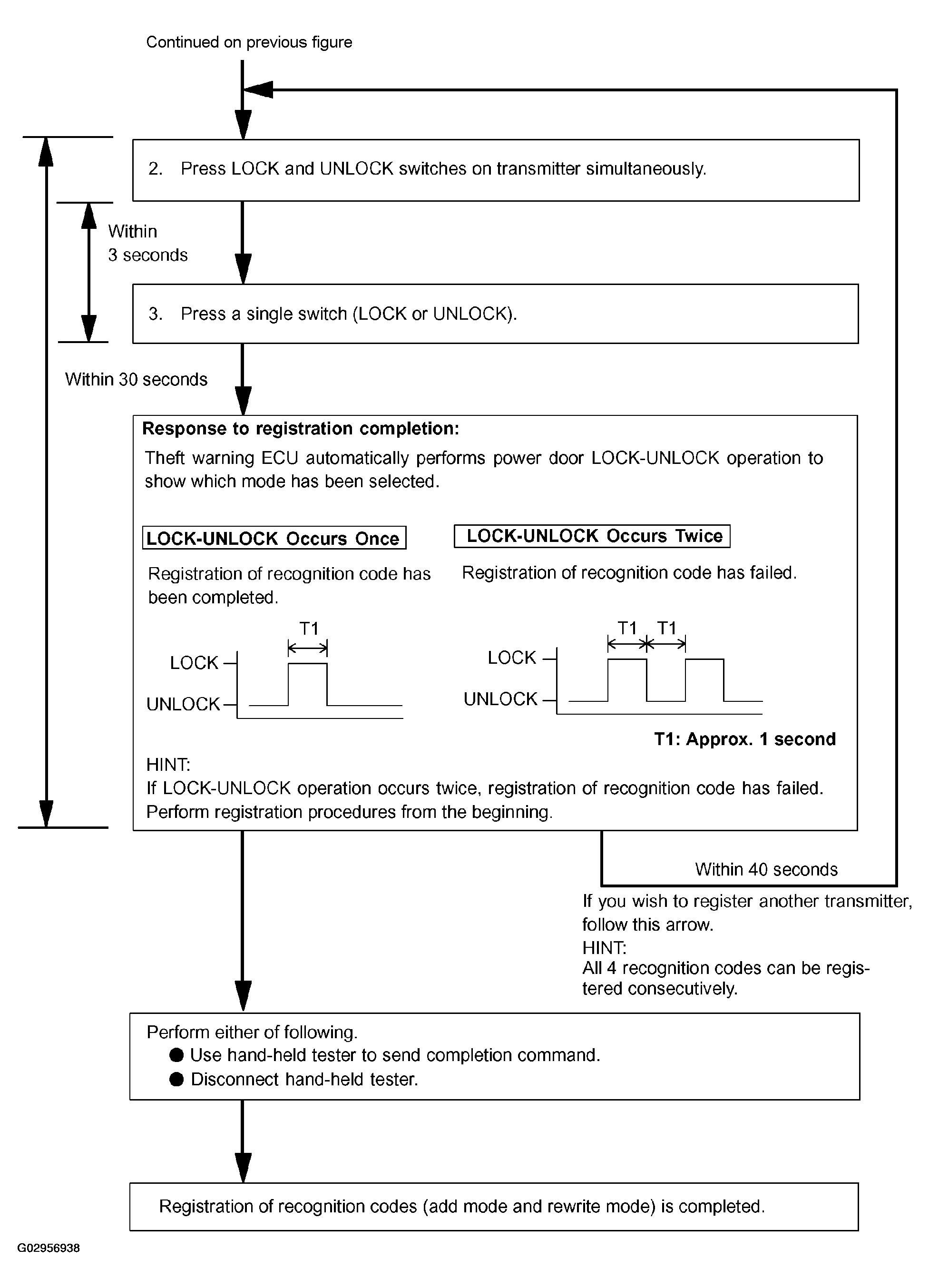

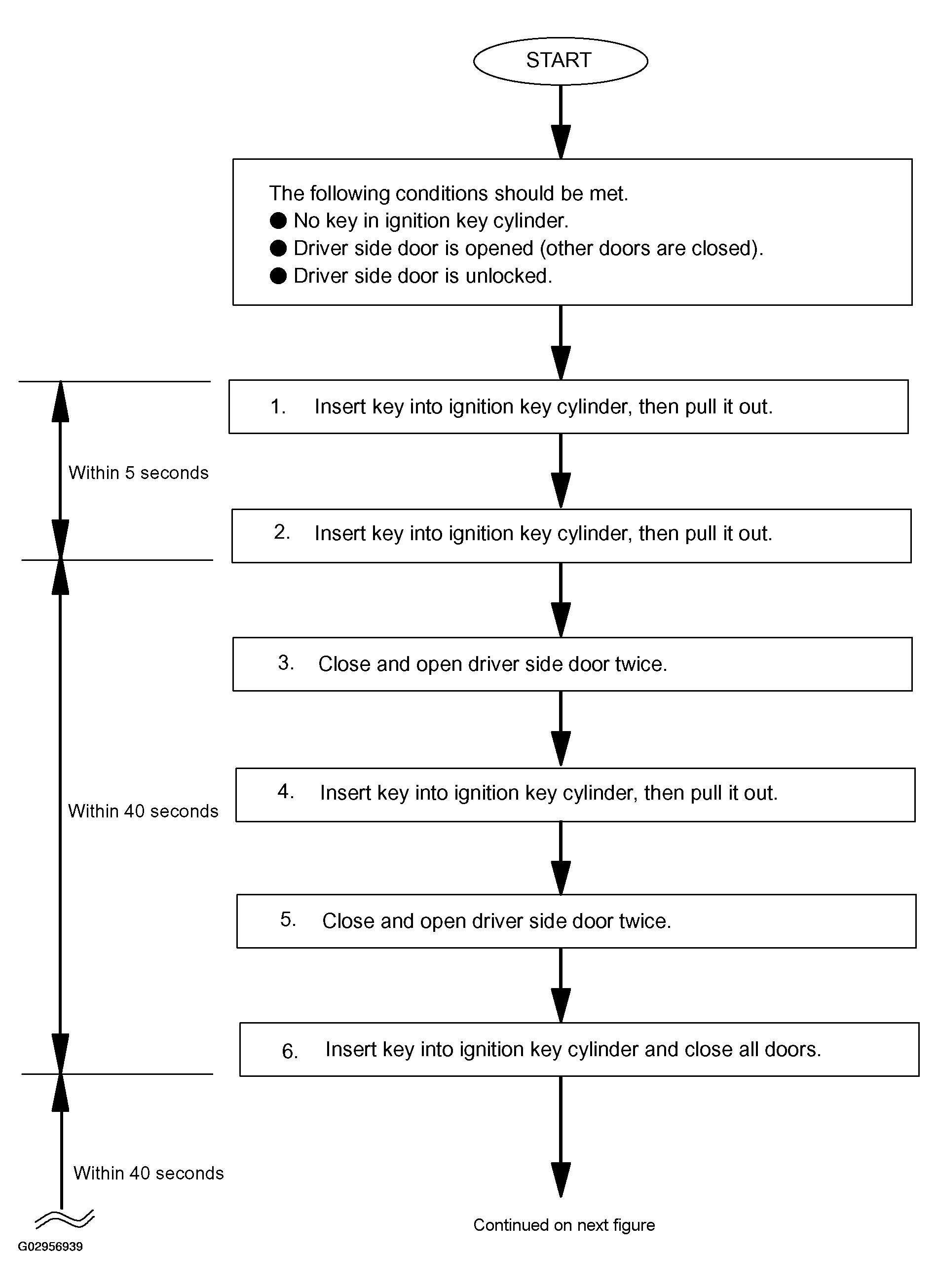

   Fig 3: Register Recognition Code Flow Chart - Not Using Hand-Held Tester (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

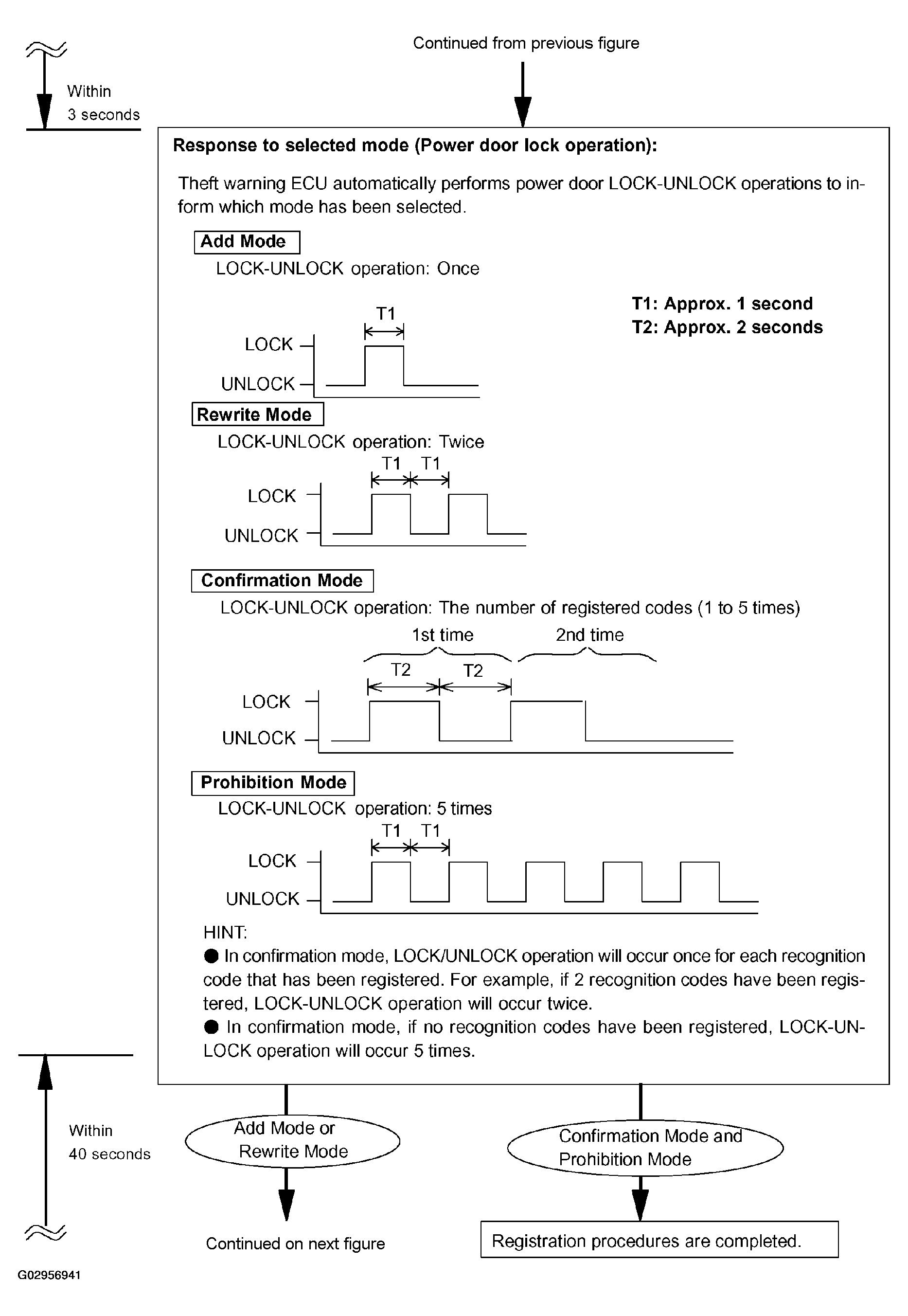

   Fig 4: Register Recognition Code Flow Chart - Not Using Hand-Held Tester (2 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 5: Register Recognition Code Flow Chart - Not Using Hand-Held Tester (3 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

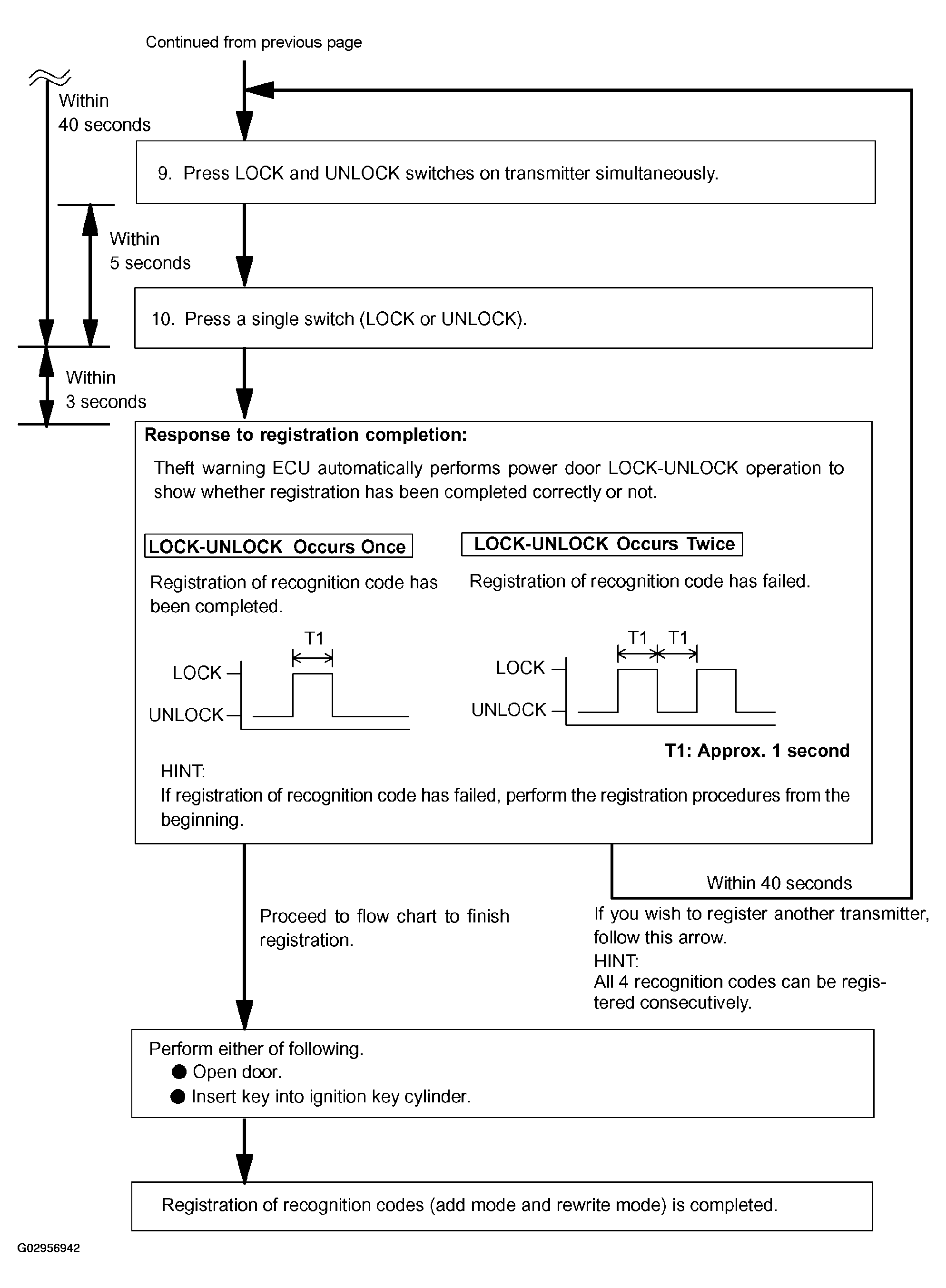

   Fig 6: Register Recognition Code Flow Chart - Not Using Hand-Held Tester (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
