Back Window Frame Sub-ASSY Upper: Components

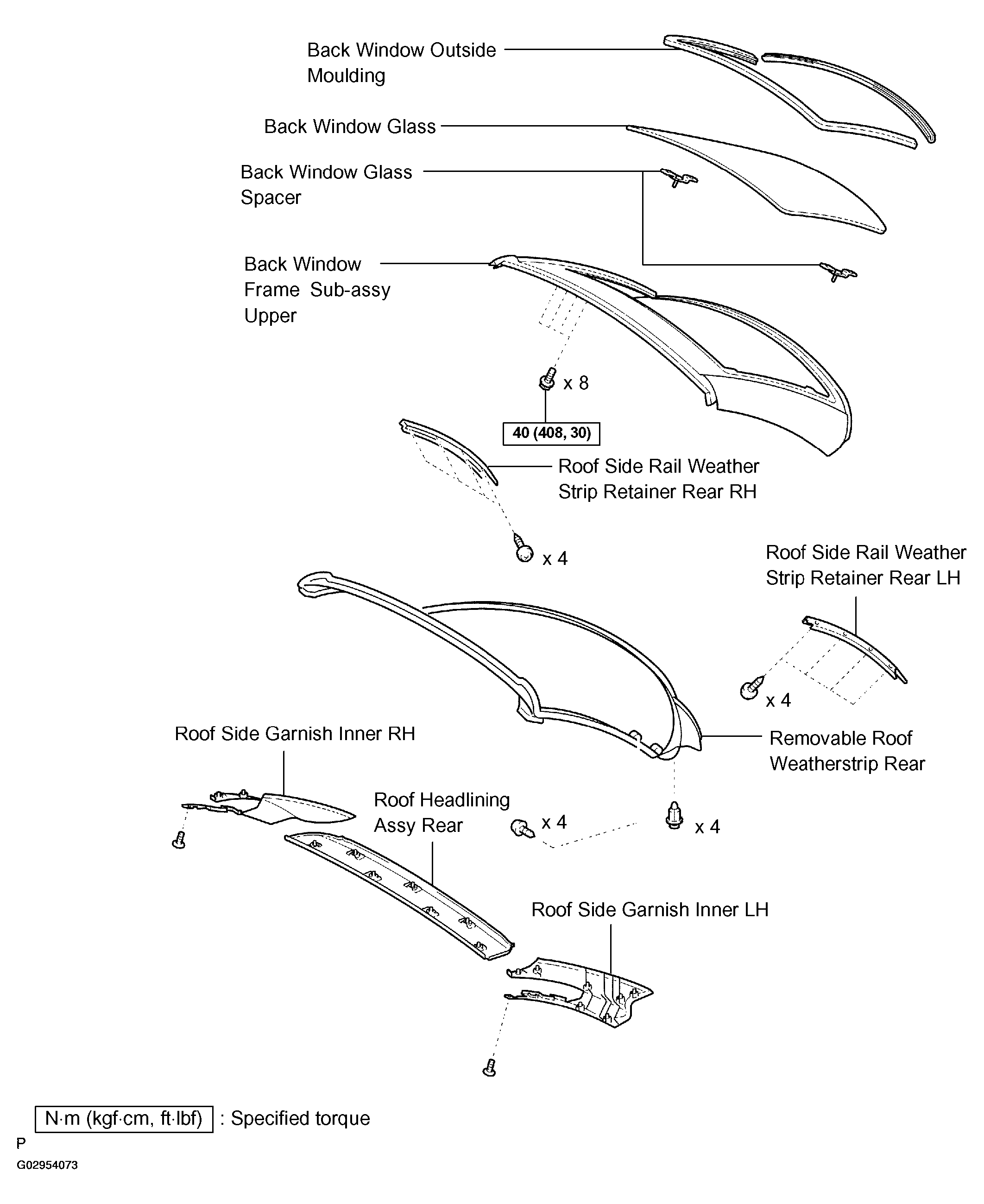

Fig 1: Exploded View Of Back Window Frame Sub-Assy Upper Components
G02954073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
