Cooling System (Mechanical): Cooling: Thermostat: Components

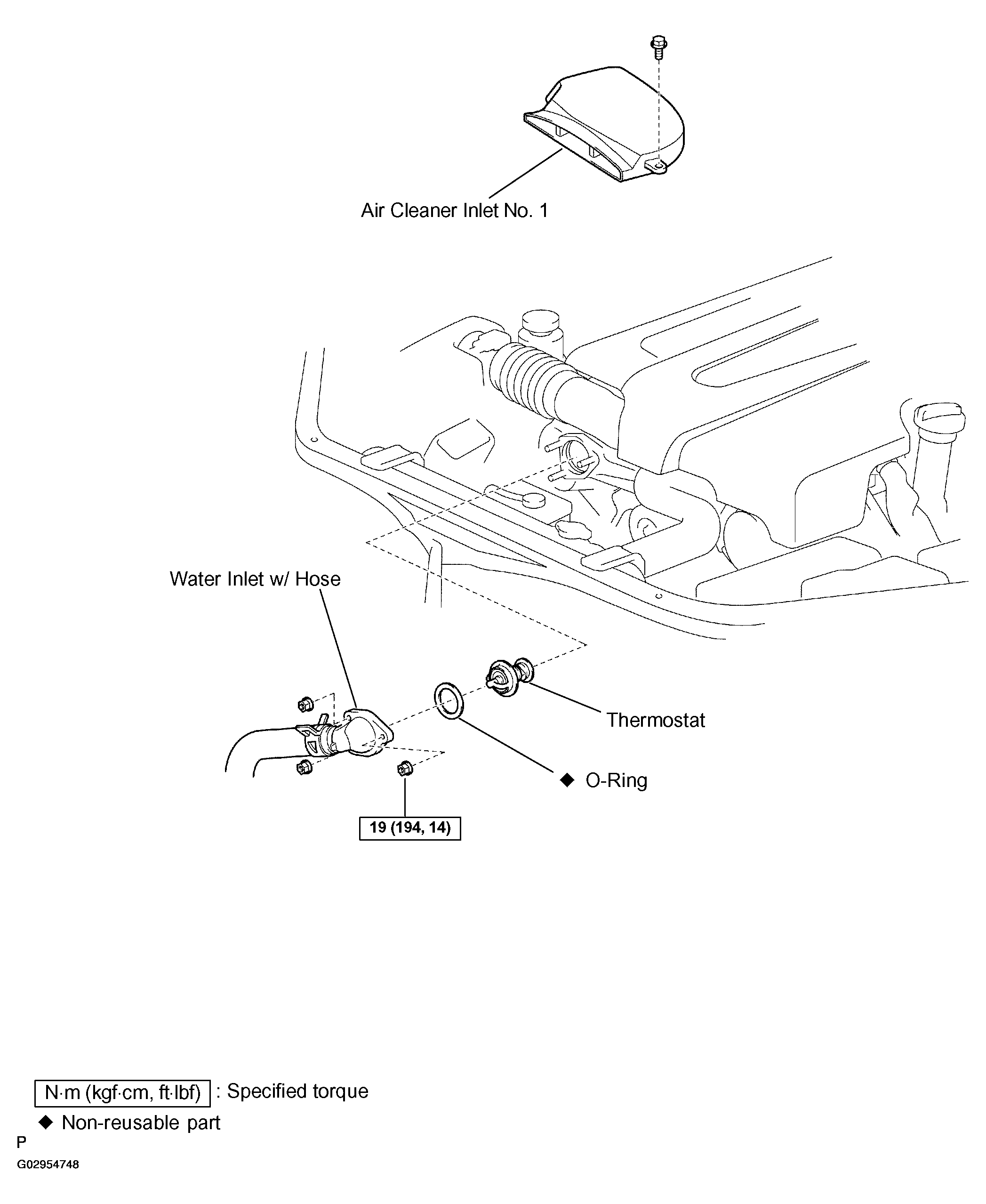

Fig 1: Identifying Thermostat Components & Replacements
G02954748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
