Data List/Active Test

READ DATA LIST
HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

NOTE: In Fig 1, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester to the DLC3.
4. Turn the ignition switch ON.
5. Turn the hand-held tester ON.
6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
7. According to the display on the tester, read the DATA LIST.

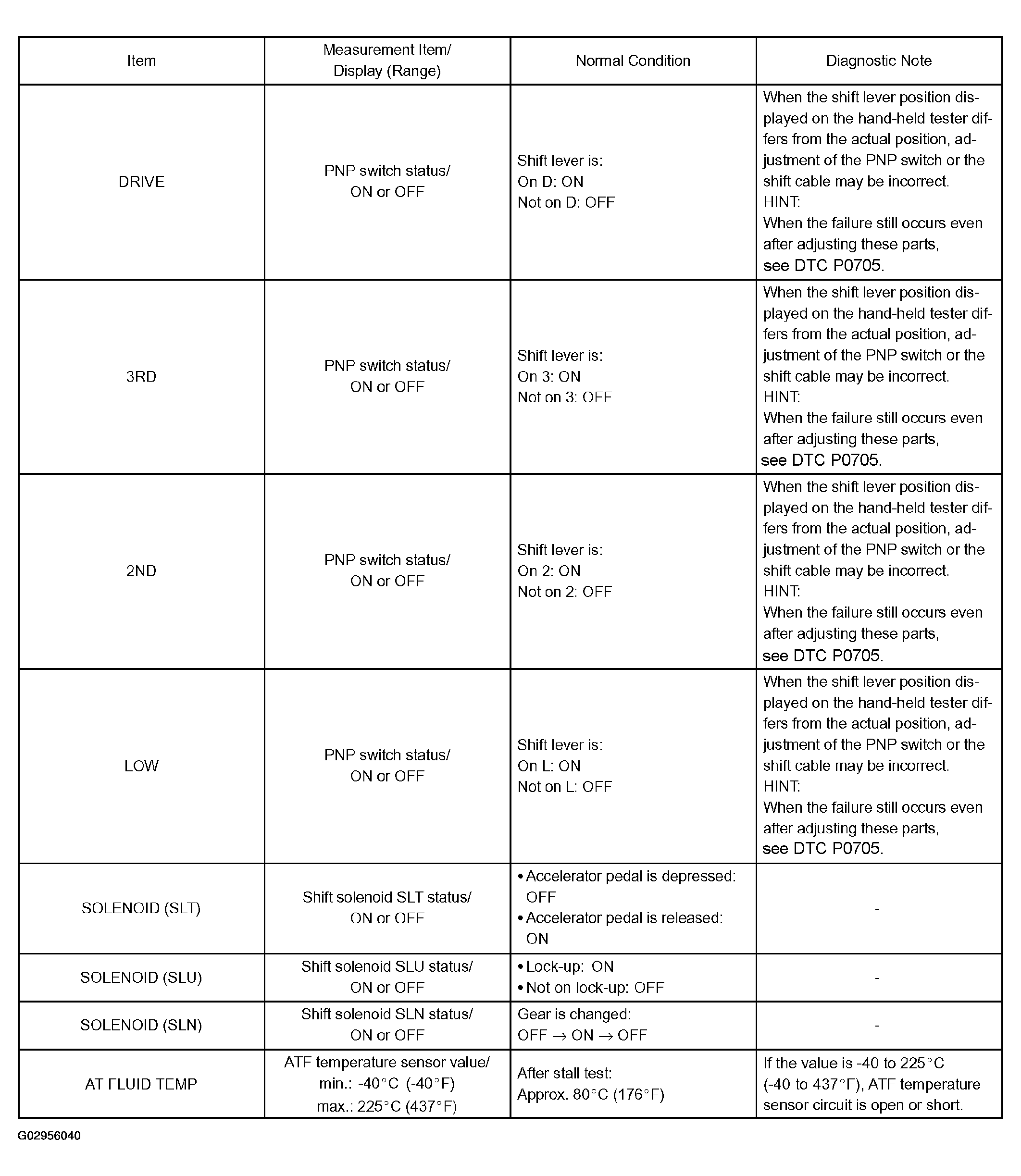

  Fig 1: Data List/Active Test Table (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

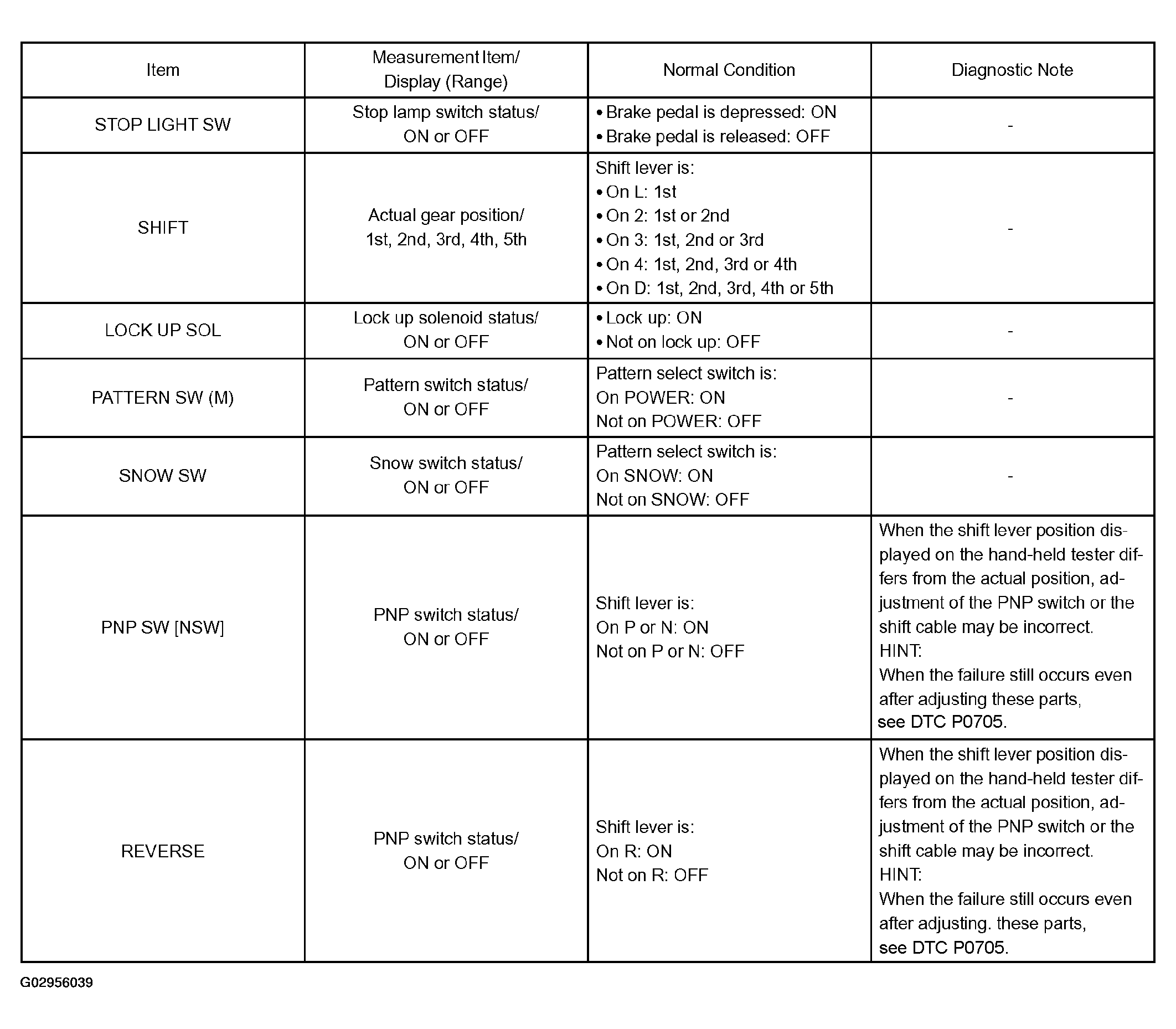

  Fig 2: Data List/Active Test Table (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM ACTIVE TEST
HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, Vacuum Switching Valve (VSV), actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Turn the ignition switch OFF.
2. Connect the hand-held tester to the DLC3.
3. Turn the ignition switch ON.
4. Turn the hand-held tester ON.
5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II /ACTIVE TEST.
6. According to the display on tester, perform the ACTIVE TEST.

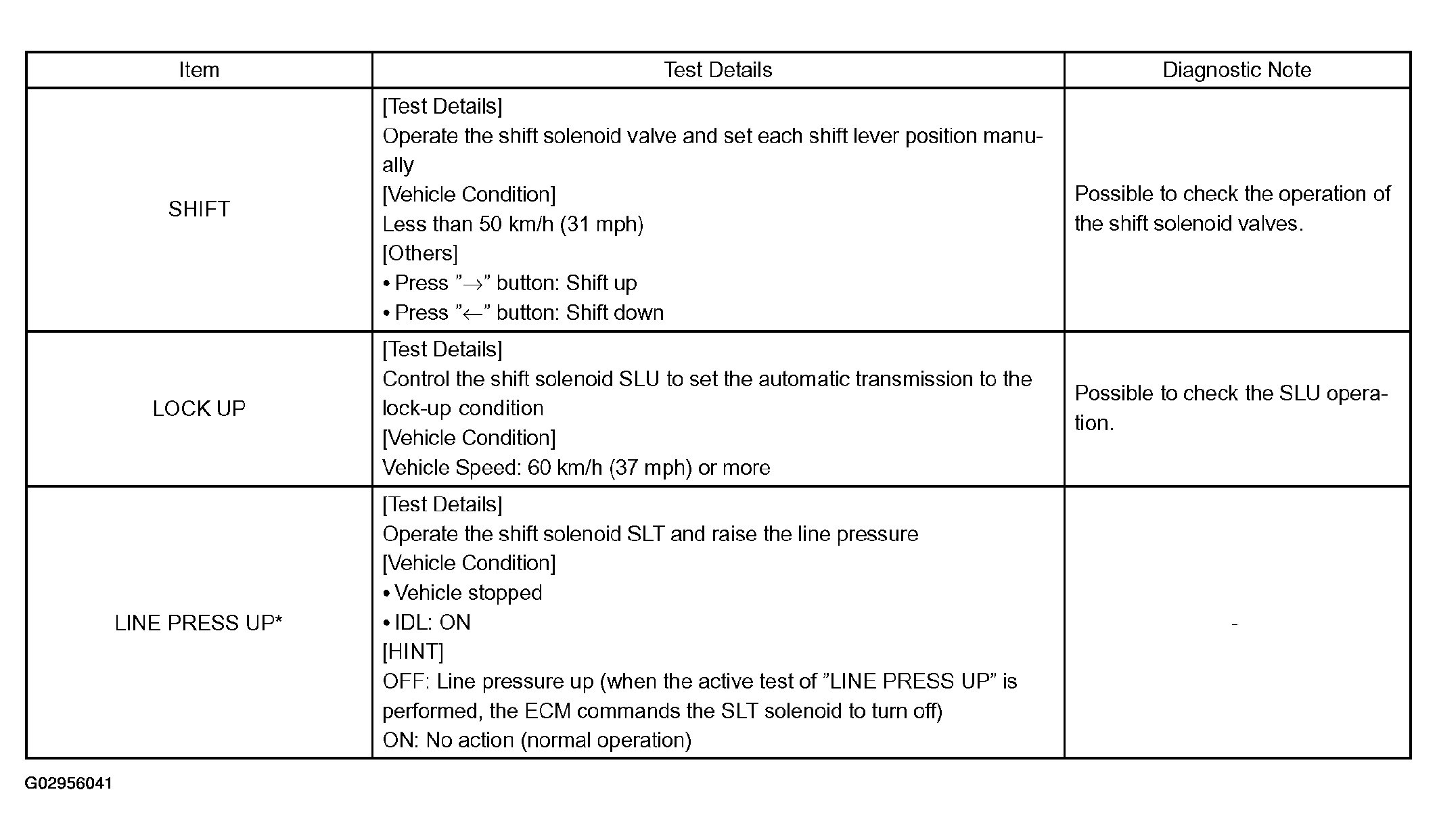

  Fig 3: Perform Active Test Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  *: The ACTIVE TEST's "LINE PRESS UP" and the HYDRAULIC TEST both require SST to be connected to the automatic transmission to check line pressure changes. However, the pressure values are different.
