Chapter 1: Electronic Circuit Matrix Table

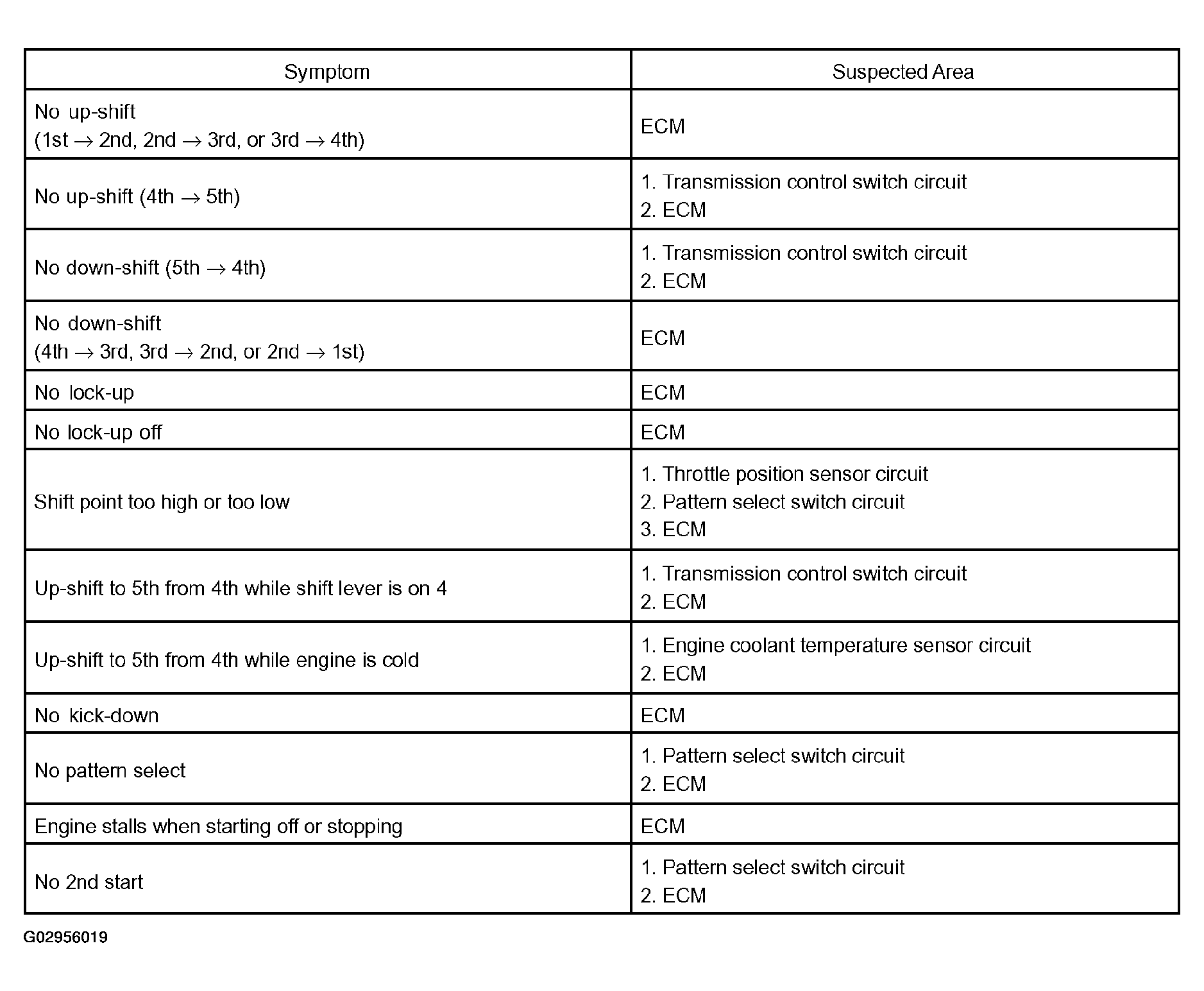

Fig 1: Problem Symptoms Table (1 Of 5)
G02956019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
