Chapter 2: On-Vehicle Repair

(See  OVERHAUL - A650E  article for mechanical repair information.)

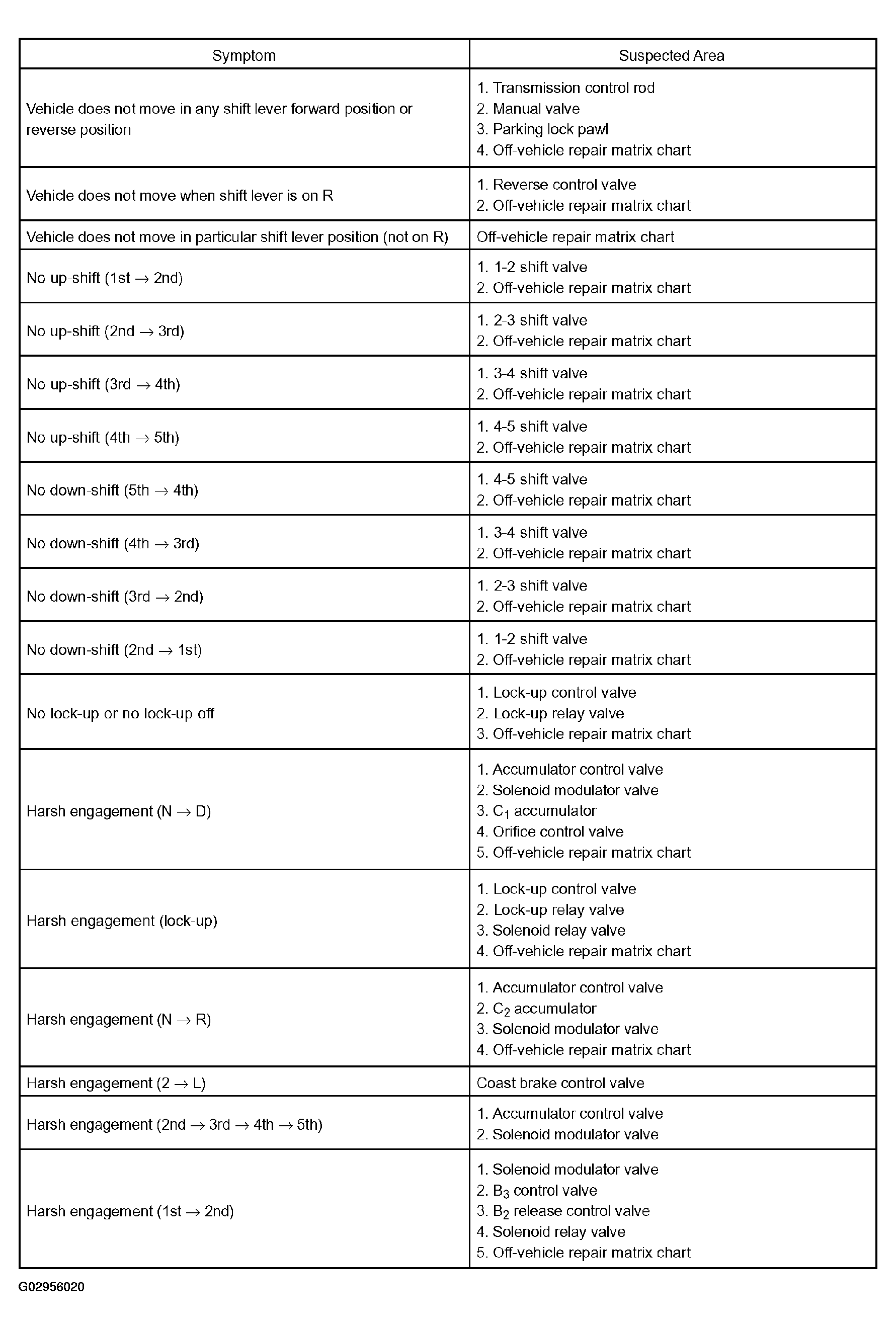

Fig 1: Problem Symptoms Table (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

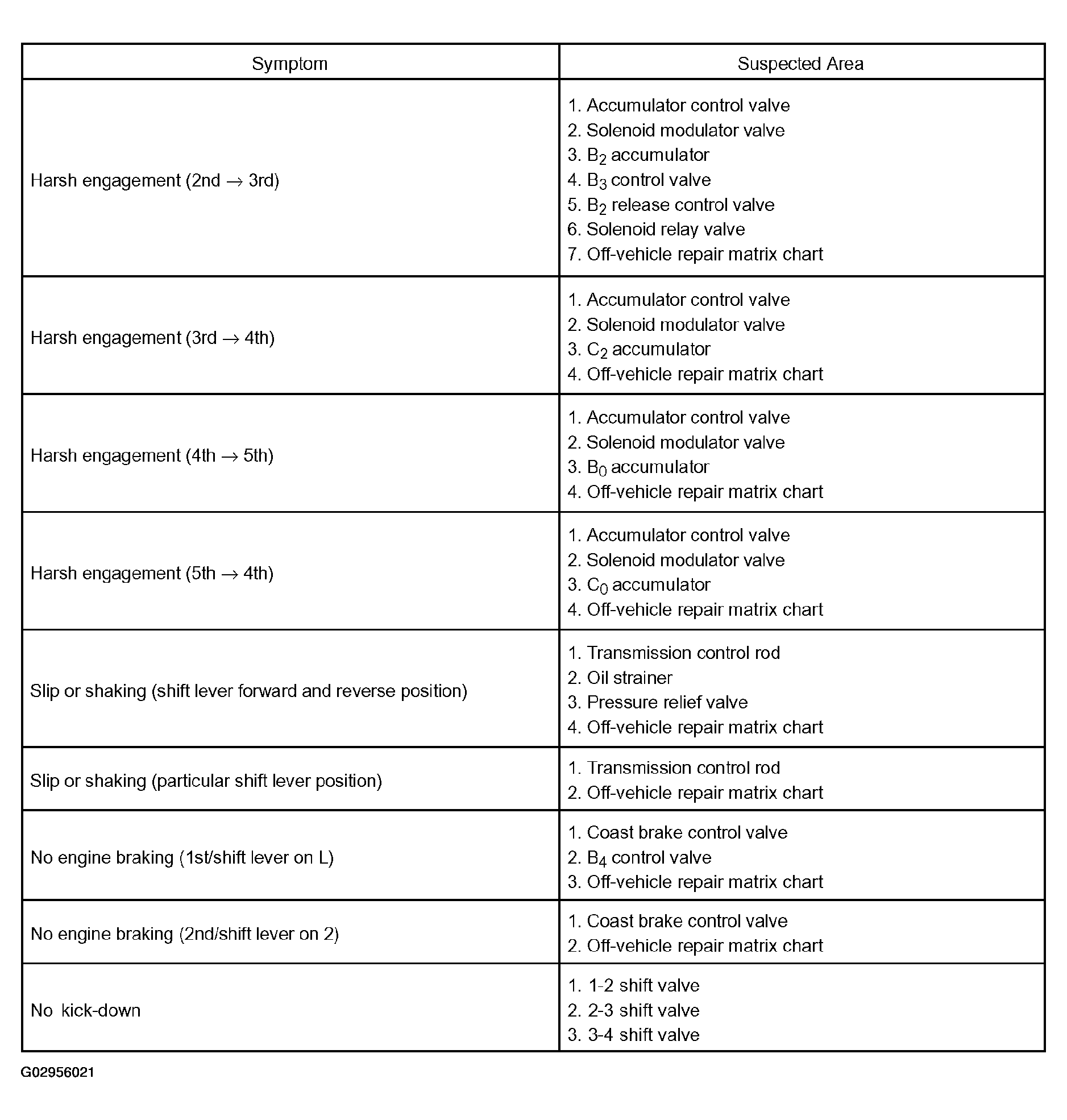

Fig 2: Problem Symptoms Table (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
