Disc Player Changer: Replacement

HINT:

See LOCATION

1. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
2. REMOVE CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
3. REMOVE CONSOLE BOX CARPET (See  REPLACEMENT  )
4. REMOVE RR CONSOLE BOX (See  REPLACEMENT  )
5. REMOVE DISC PLAYER CHANGER
   1. Disconnect the connector.
   2. Remove the 4 nuts and the disc player changer.

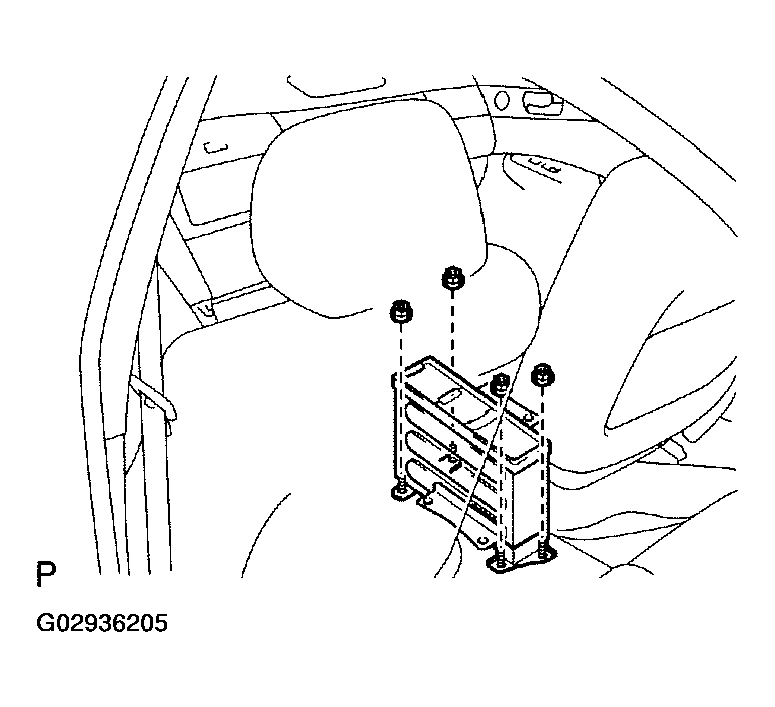

   Fig 1: Removing Disc Player Changer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
