Circuit Description

Refer to DTC P2120  .

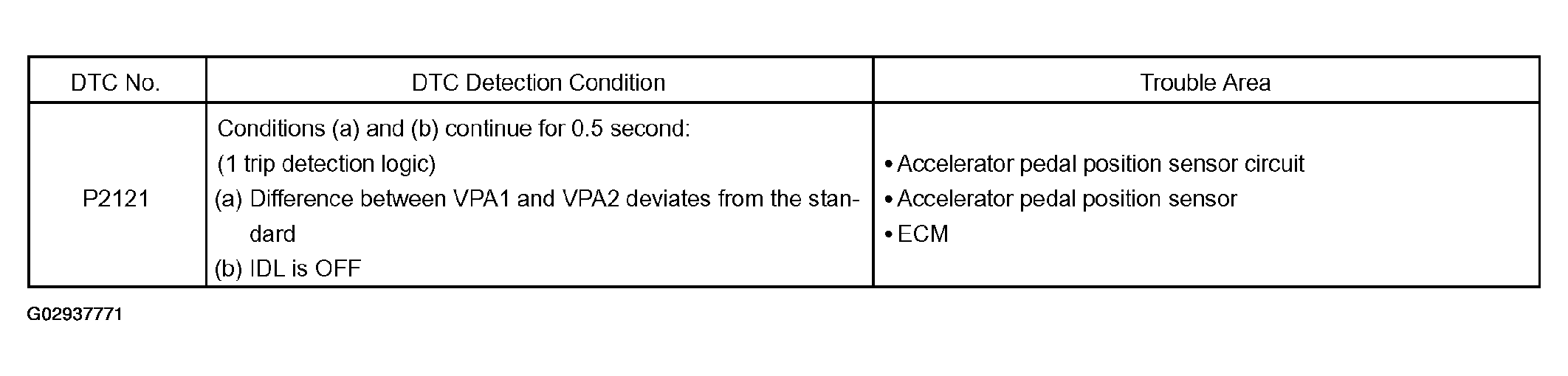

Fig 1: DTC Trouble Detection Table
G02937771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
