Cold Start Injector: Components

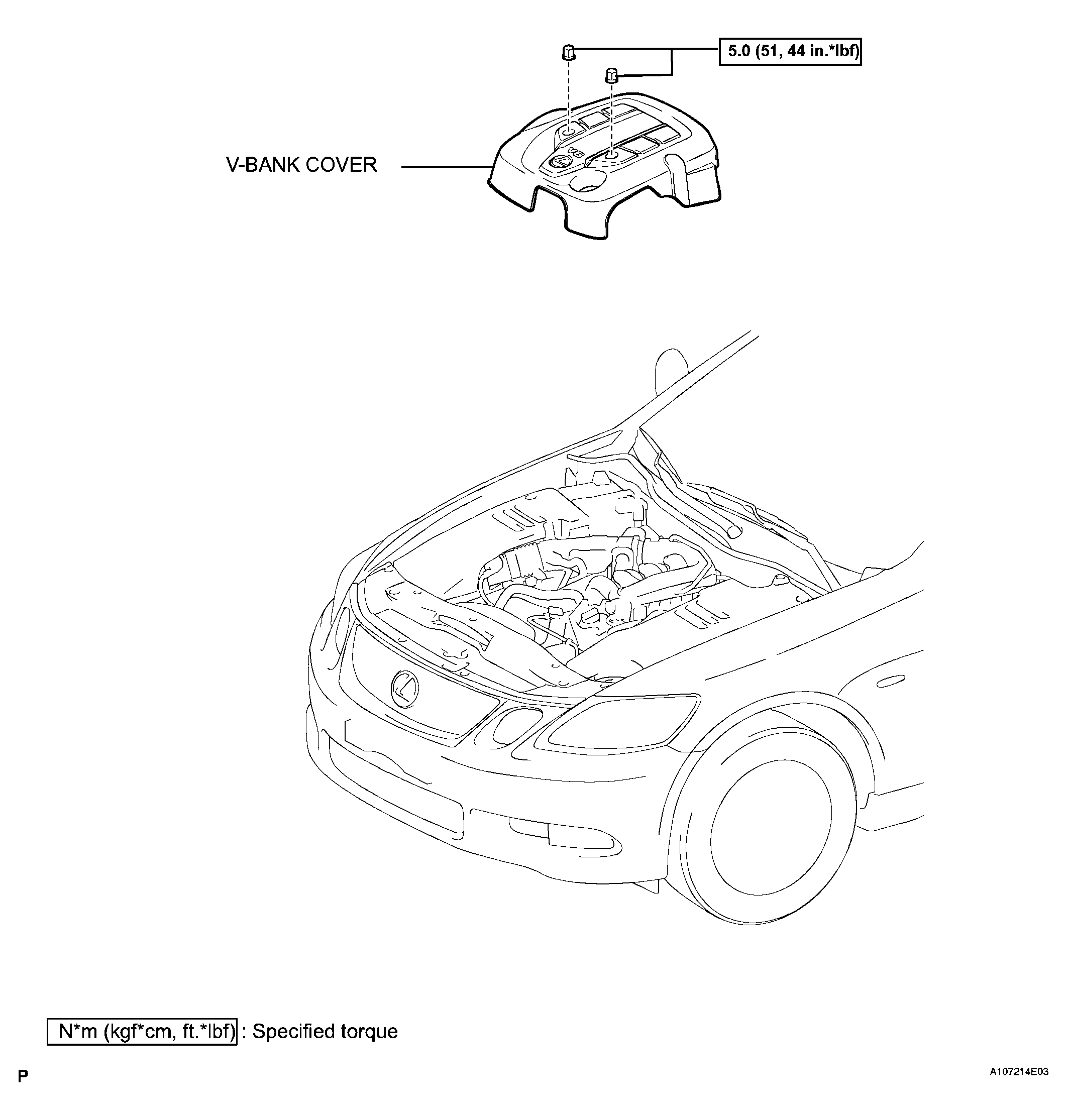

Fig 1: Cold Start Injector Replacement Components With Torque Specifications (1 Of 3)
G04018653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

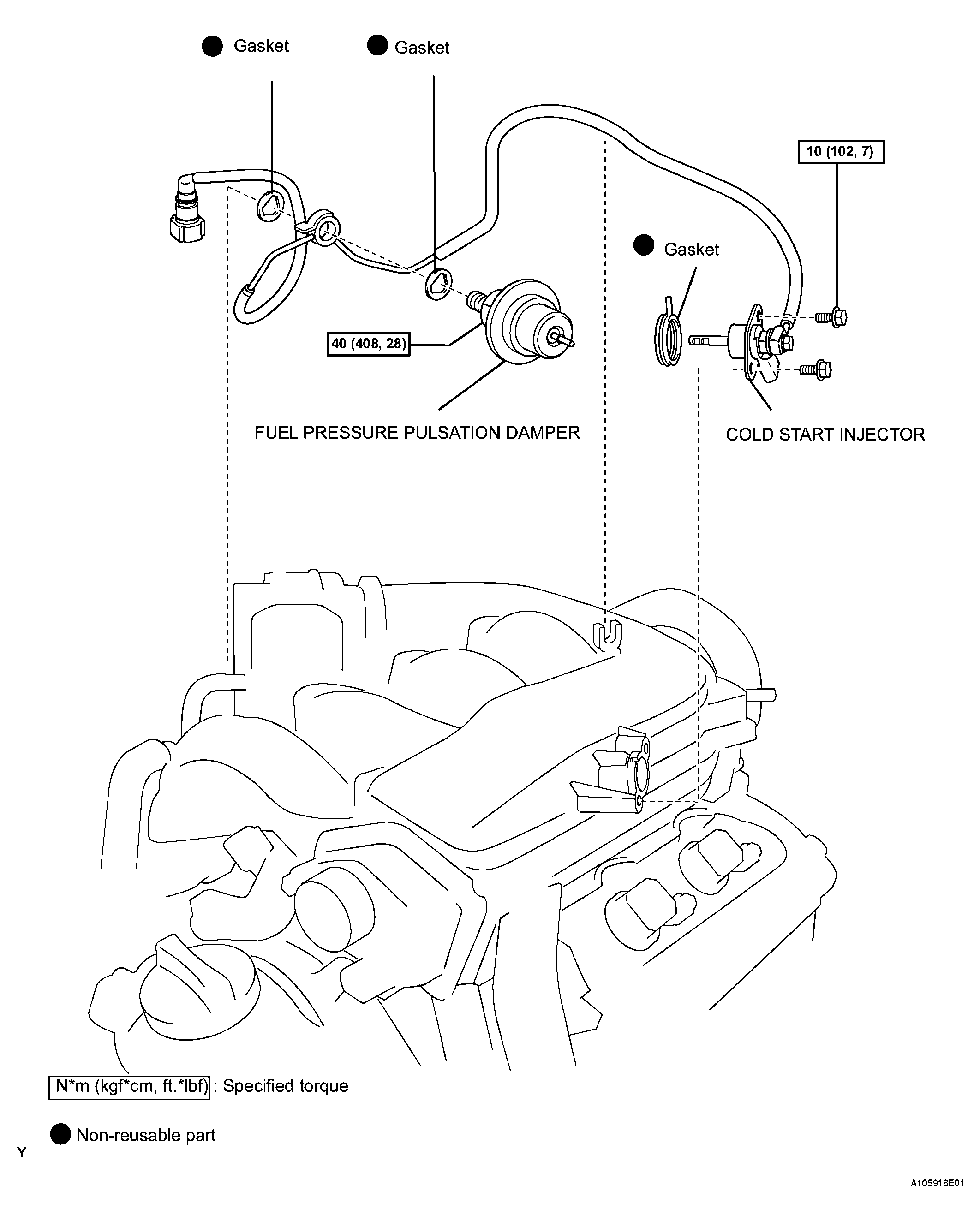

Fig 2: Cold Start Injector Replacement Components With Torque Specifications (2 Of 3)
G04018654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

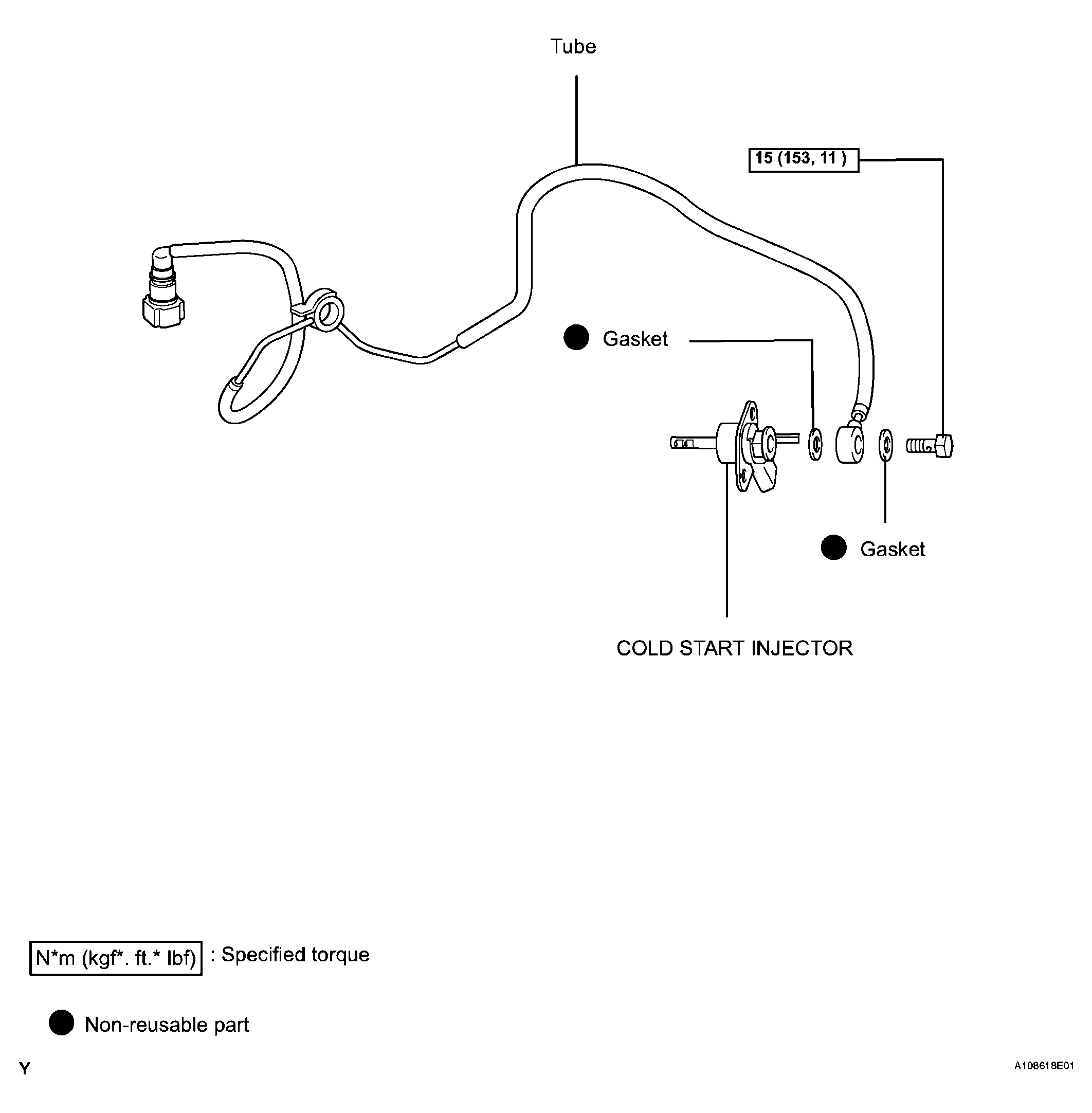

Fig 3: Cold Start Injector Replacement Components With Torque Specifications (3 Of 3)
G04018655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
