Fuel Injector: Components

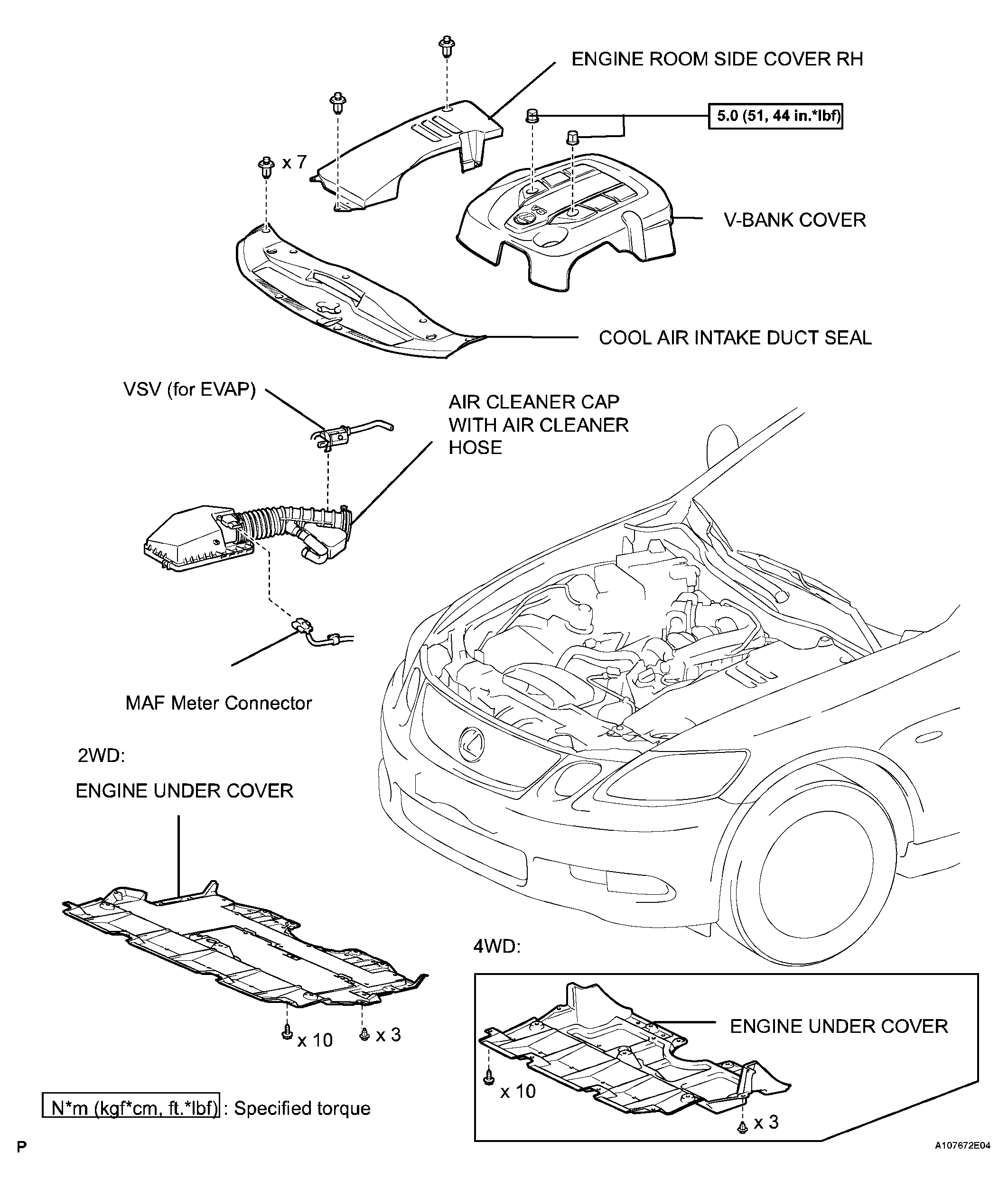

Fig 1: Fuel Injector Replacement Components Assembly With Torque Specifications (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

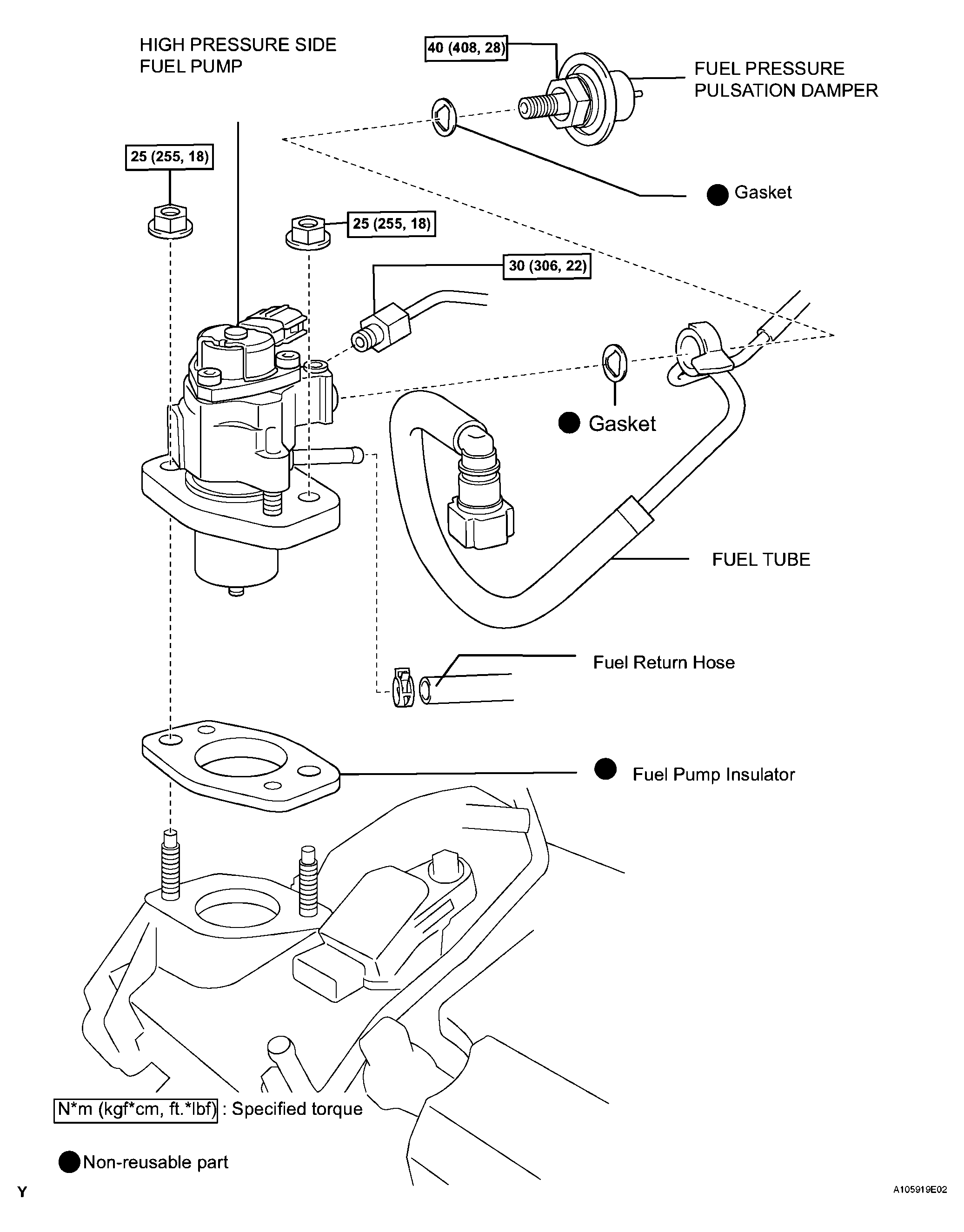

Fig 2: Fuel Injector Replacement Components Assembly With Torque Specifications (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

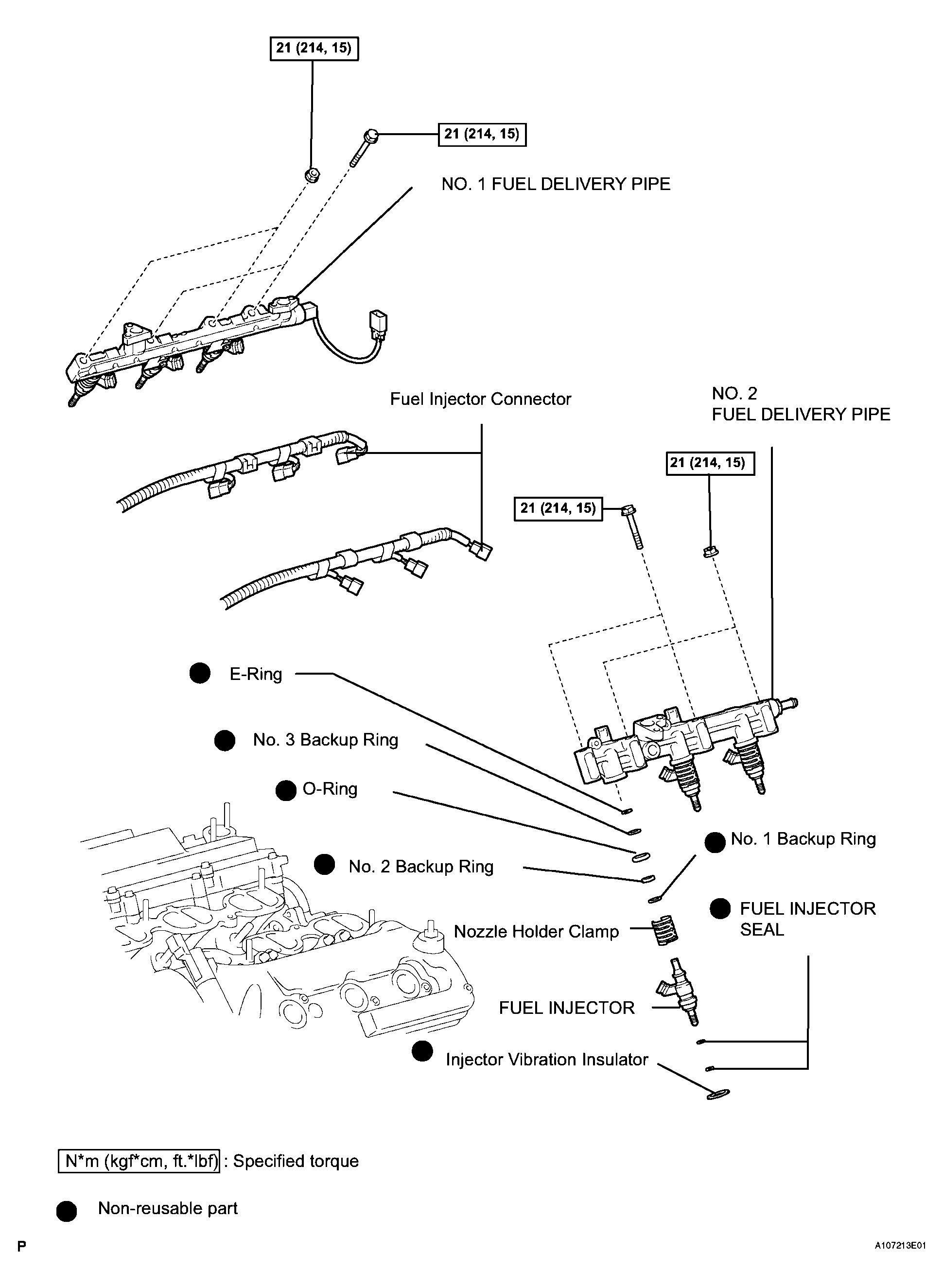

Fig 3: Fuel Injector Replacement Components Assembly With Torque Specifications (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

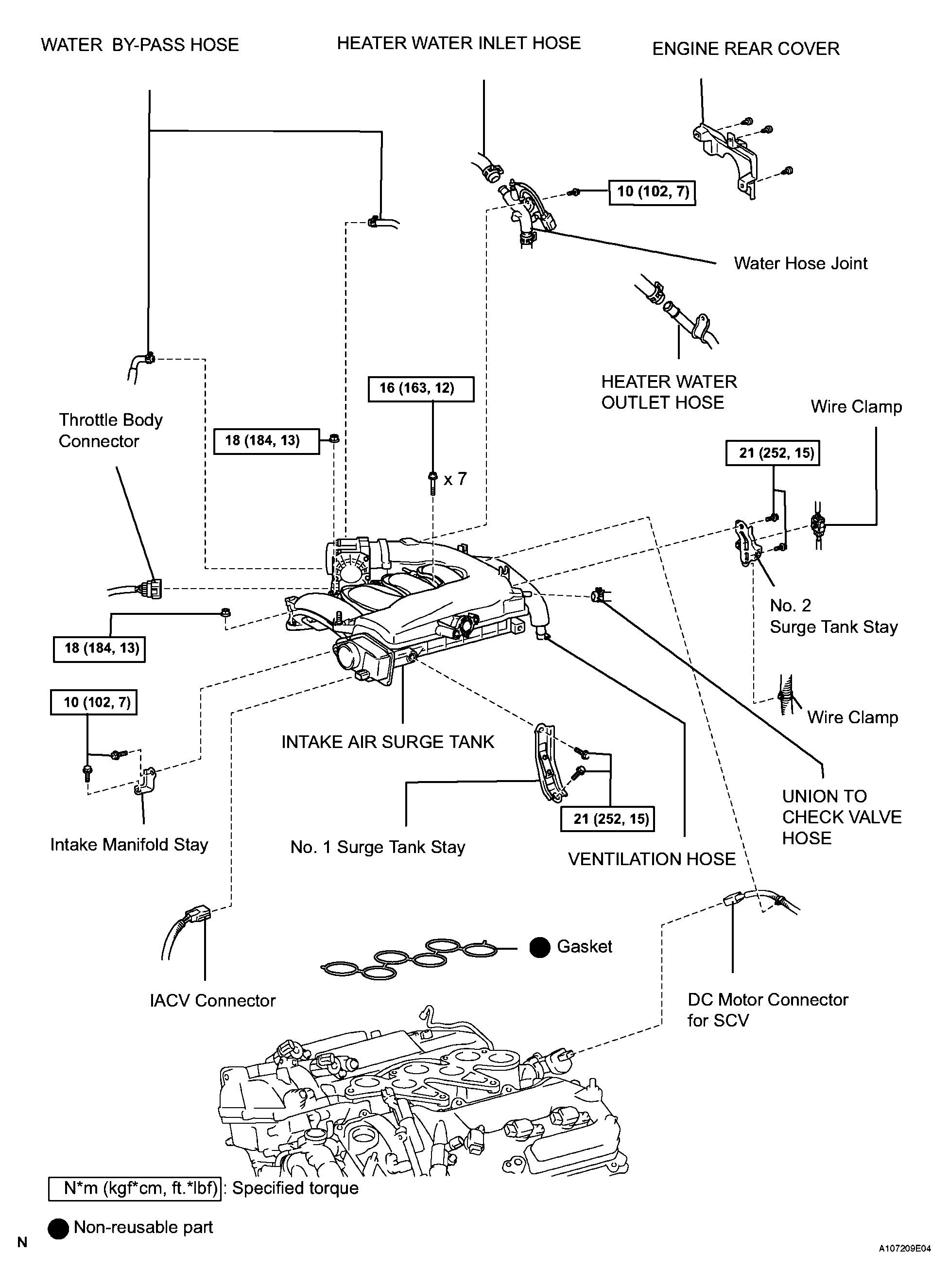

Fig 4: Fuel Injector Replacement Components Assembly With Torque Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

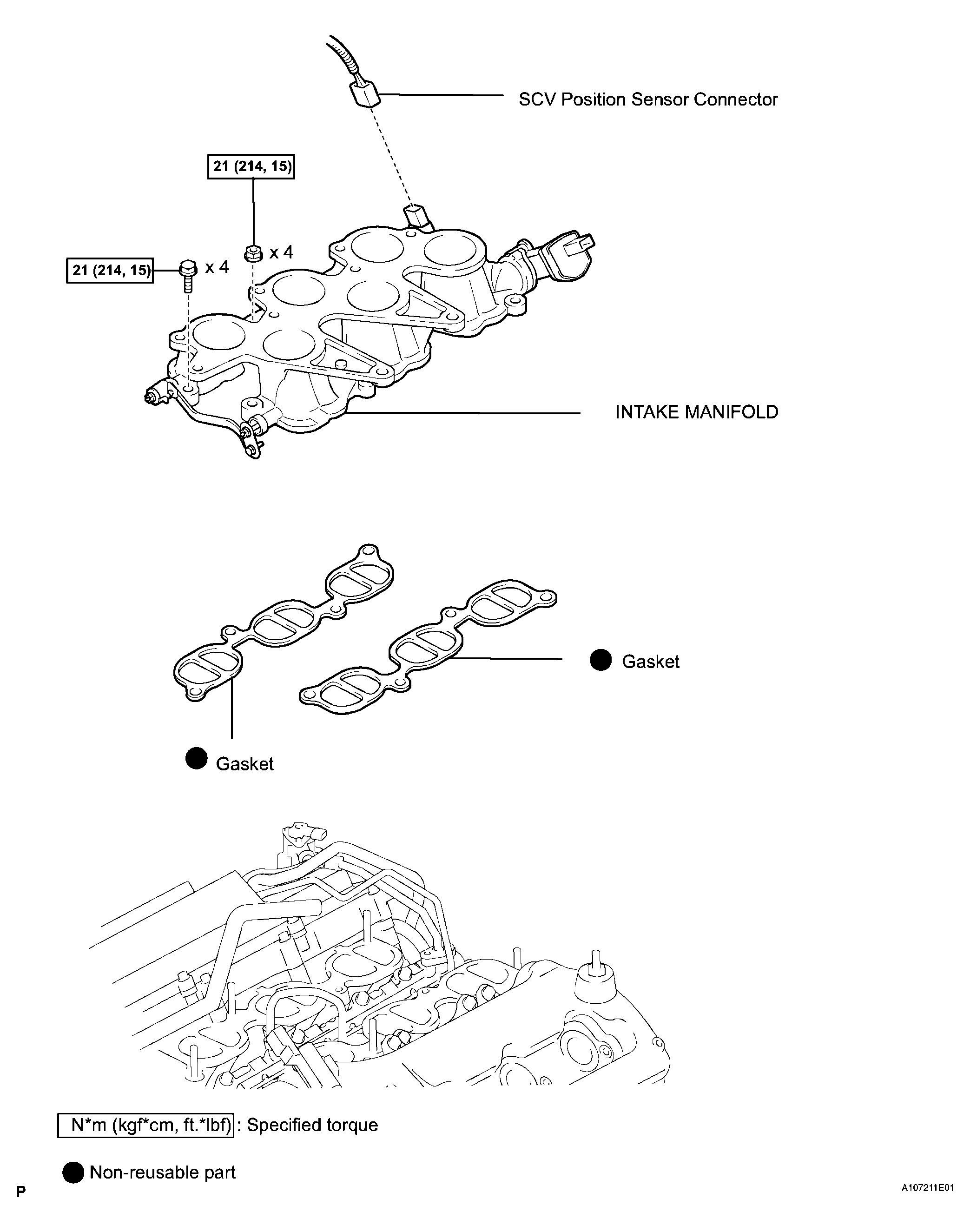

Fig 5: Fuel Injector Replacement Components Assembly With Torque Specifications (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

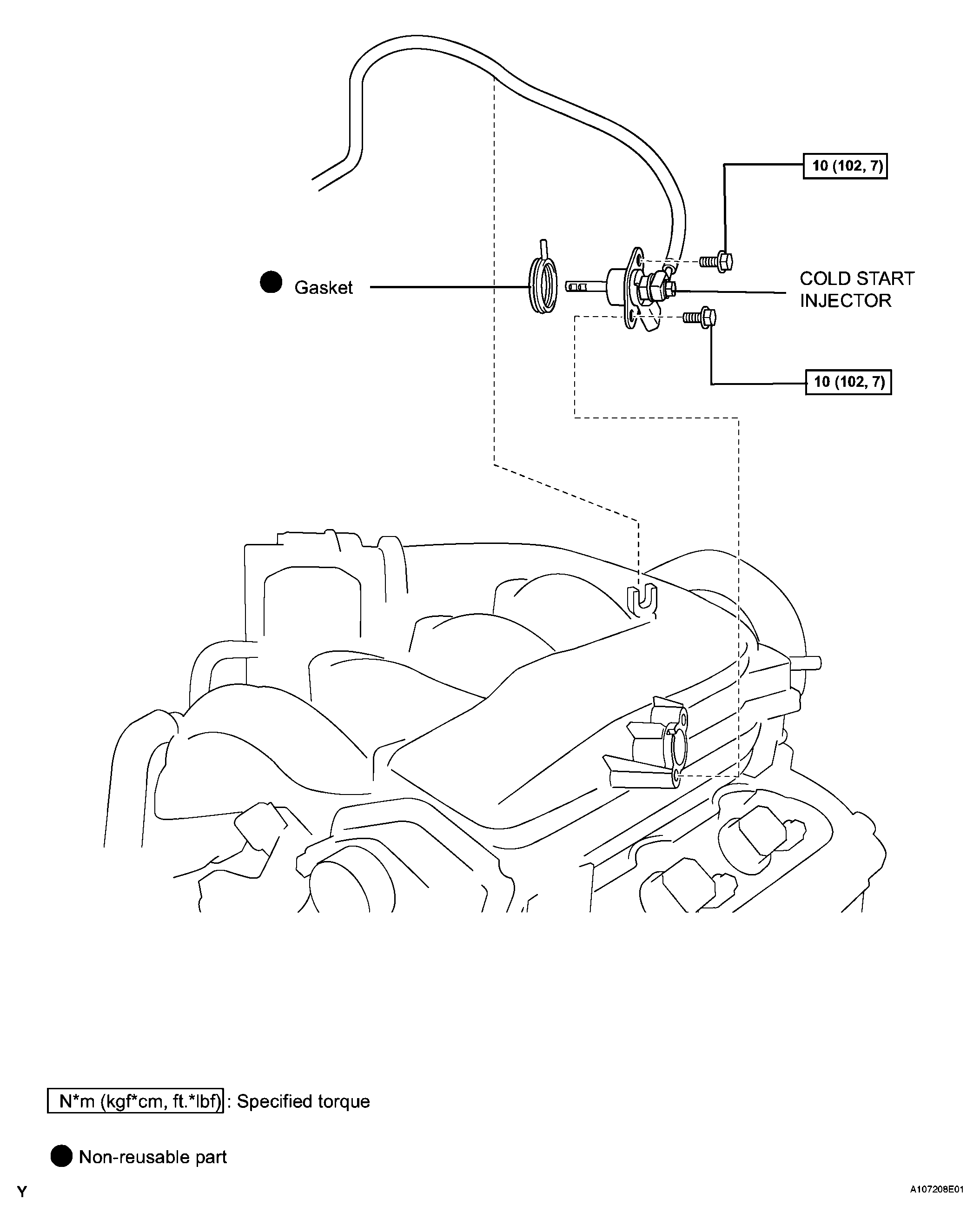

Fig 6: Fuel Injector Replacement Components Assembly With Torque Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

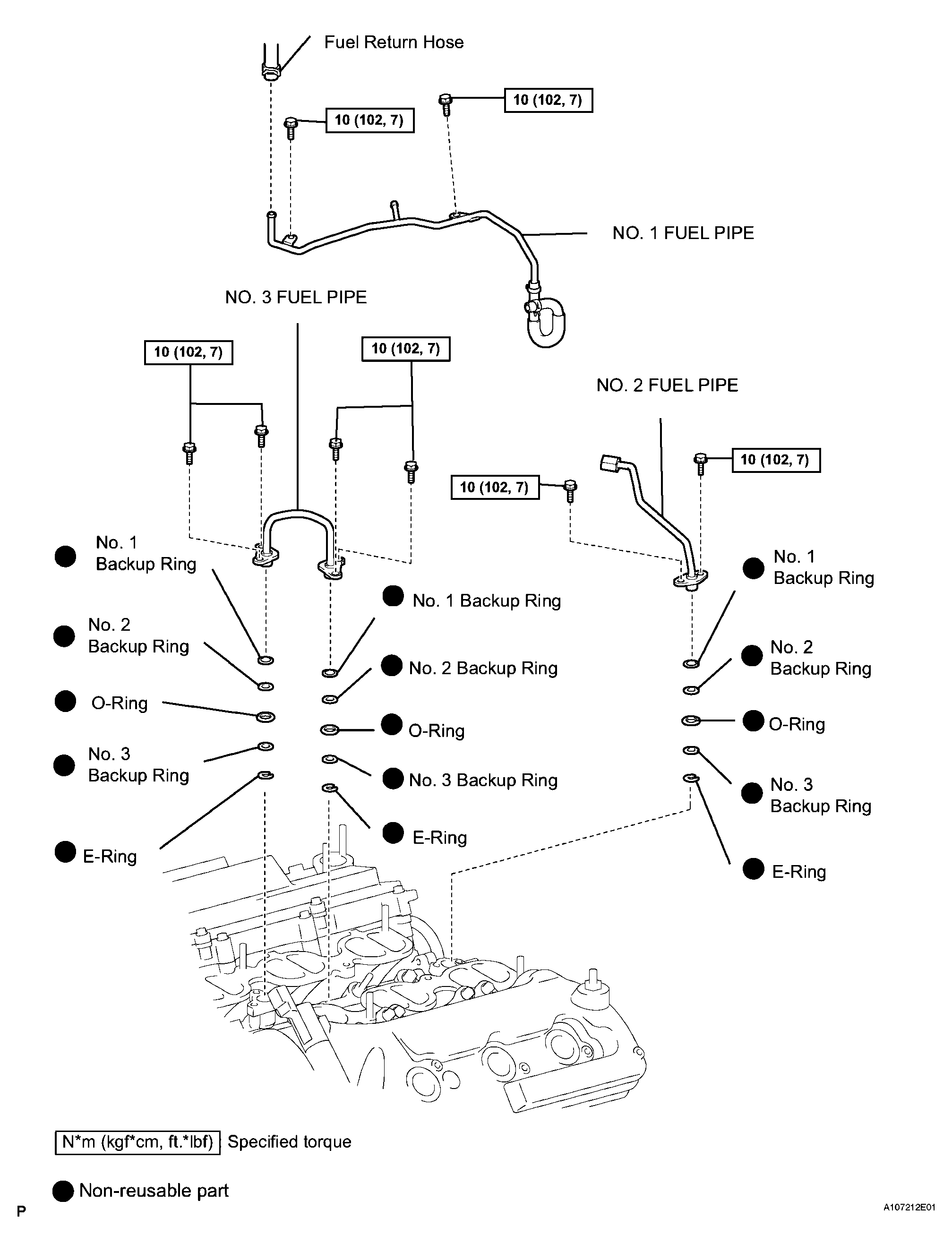

Fig 7: Fuel Injector Replacement Components Assembly With Torque Specifications (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
