Fuel Pressure Sensor: Components

Fig 1: Fuel Pressure Sensor And Components With Torque Specifications (1 Of 5)
G04018666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pressure Sensor And Components With Torque Specifications (2 Of 5)
G04018667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

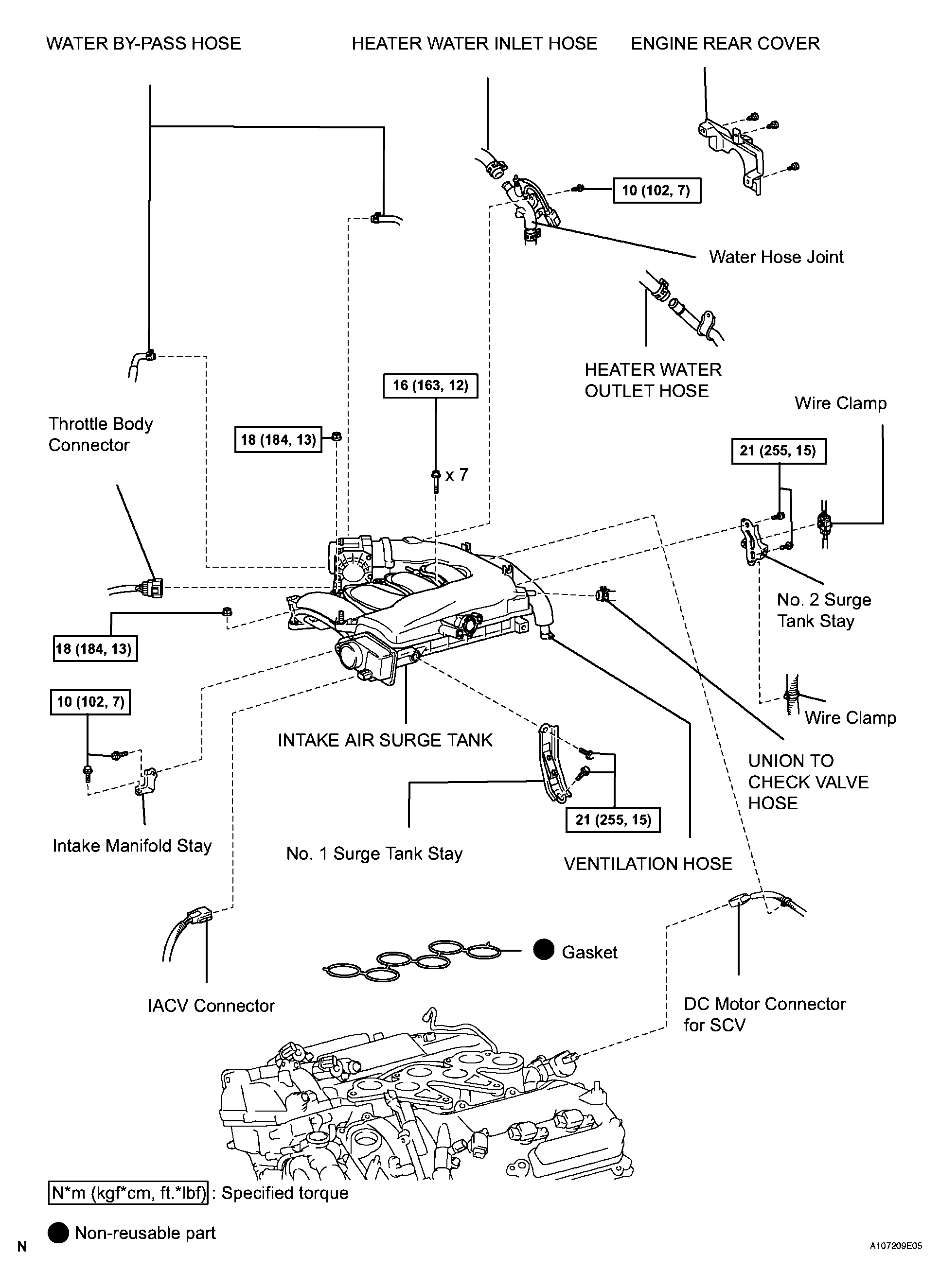

Fig 3: Fuel Pressure Sensor And Components With Torque Specifications (3 Of 5)
G04018668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

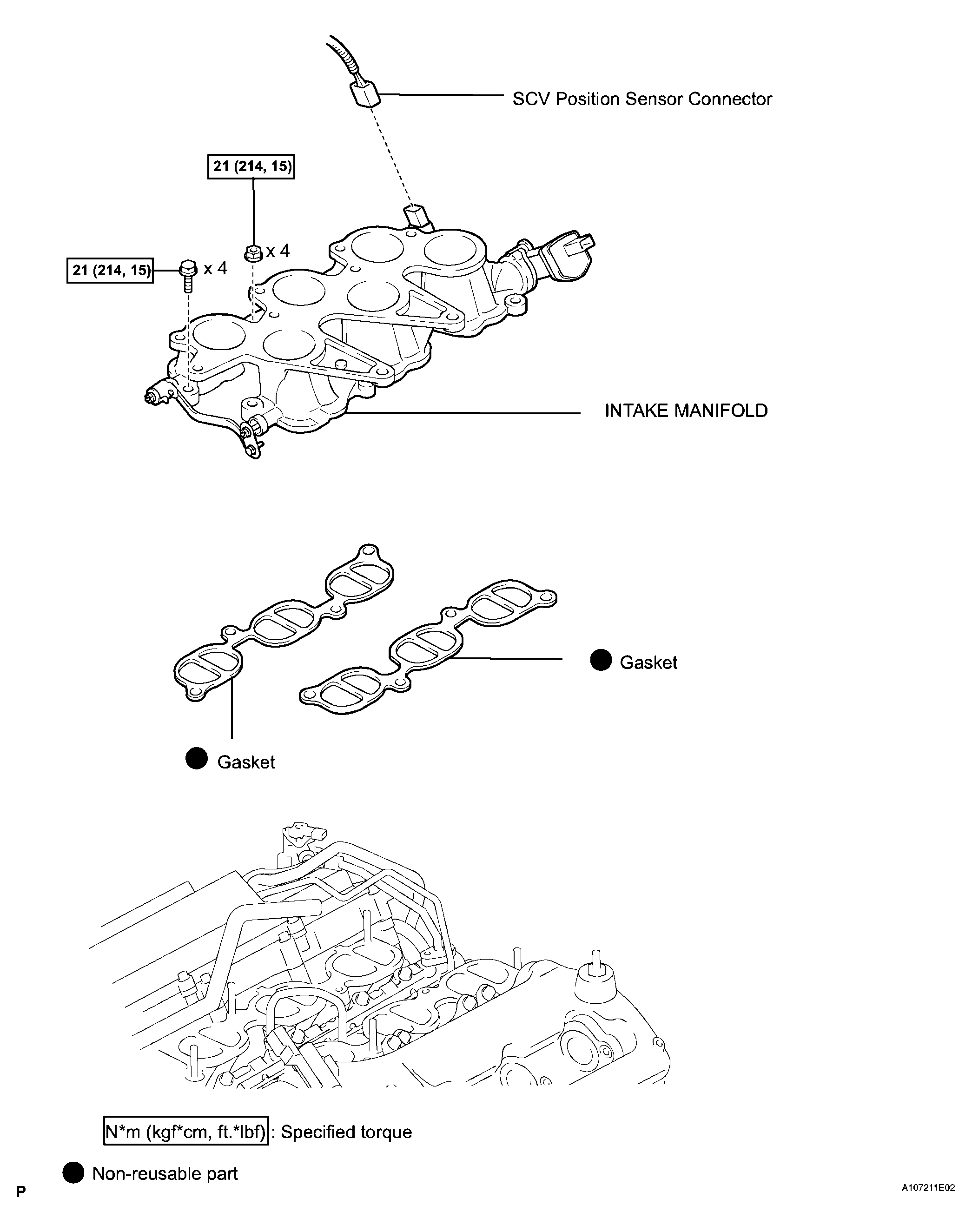

Fig 4: Fuel Pressure Sensor And Components With Torque Specifications (4 Of 5)
G04018669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

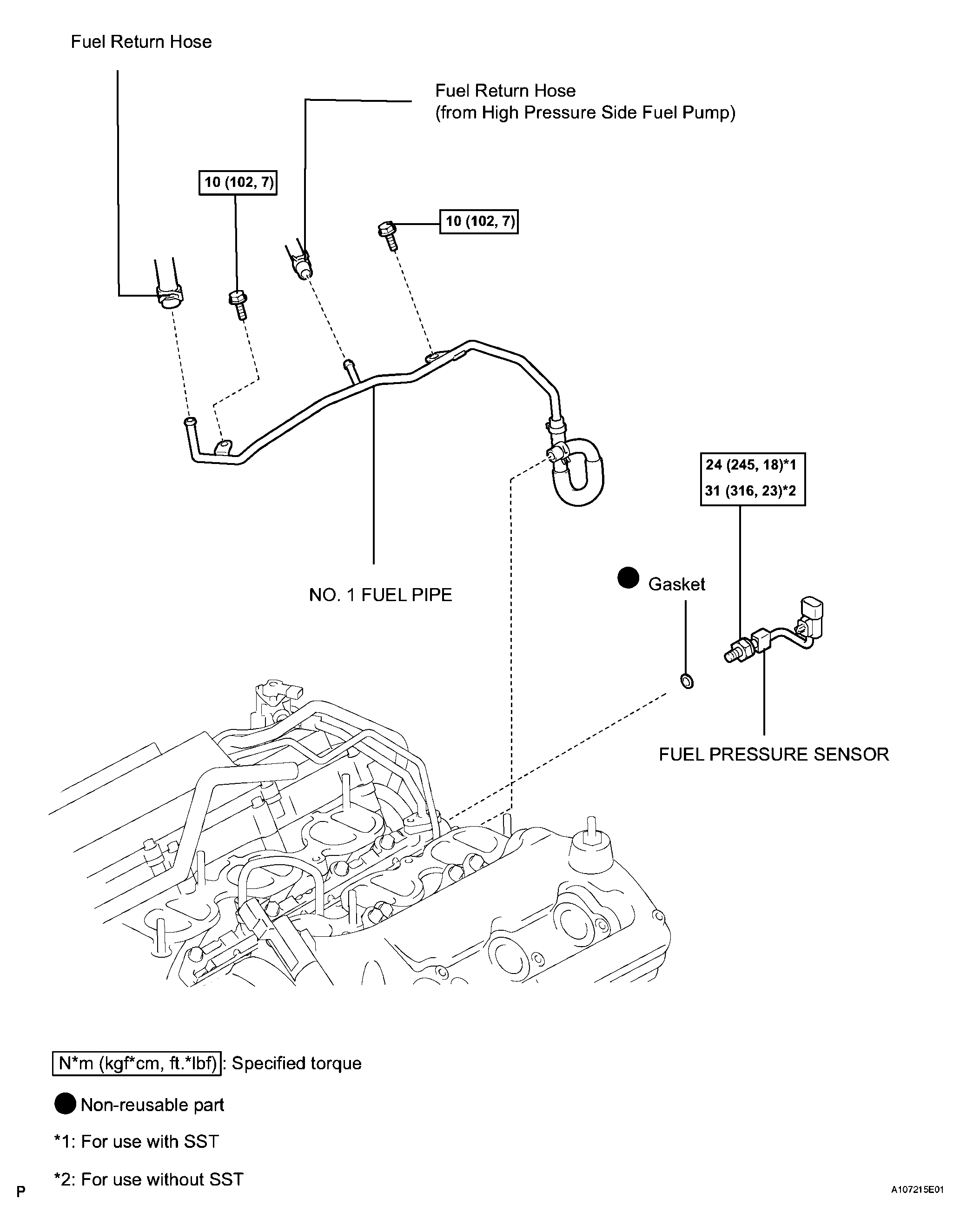

Fig 5: Fuel Pressure Sensor And Components With Torque Specifications (5 Of 5)
G04018670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
