Injector Driver: Installation

INSTALL INJECTOR DRIVER
NOTE:
- Be careful not to drop or strike the injector driver.
- The injector driver is grounded at the bolt and nut.
  To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
1. Install the injector driver with the bolt and 2 nuts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

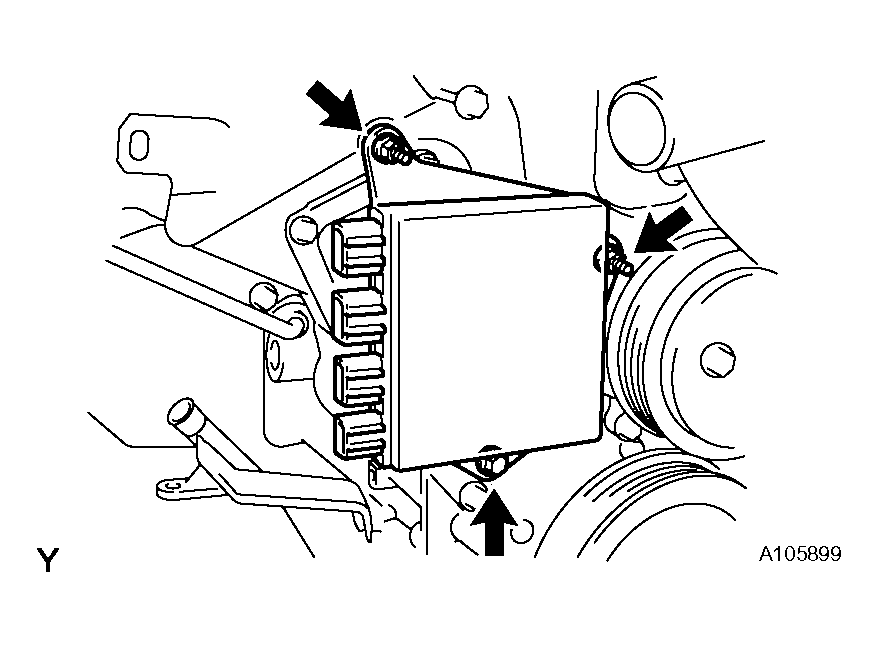

  Fig 1: Identifying Injector Driver, Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO.1 ENGINE COVER
1. Install the cover with the 3 clips.
2. Connect the 4 connectors.
  NOTE: Clip the connector securely.
Fig 2: Identifying Cover With Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER INLET
1. Install the air cleaner inlet with the bolt.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

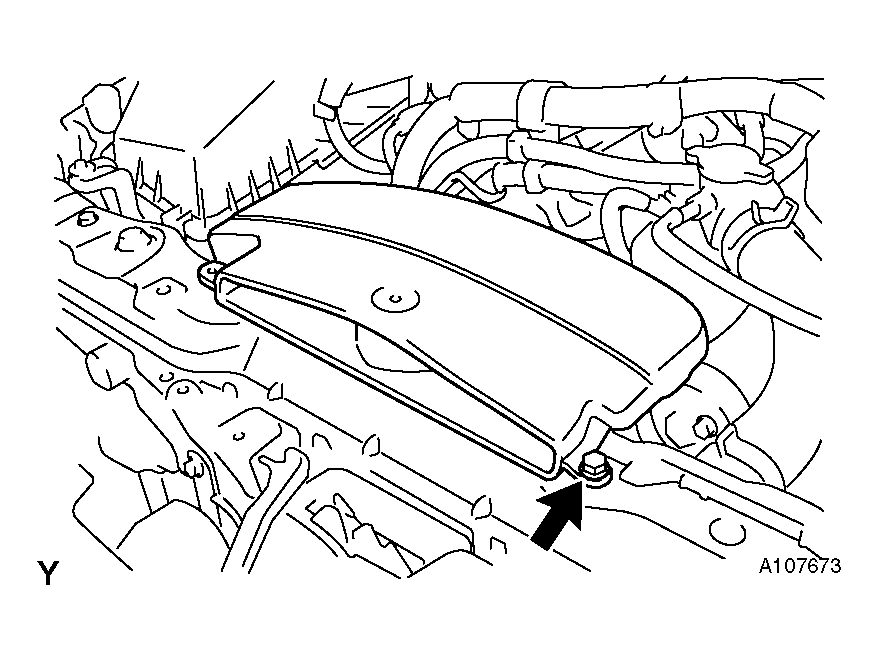

  Fig 3: Identifying Air Cleaner Inlet With Bolt
