Accelerator Pedal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and accelerator pedal.
      NOTE:
      • Avoid physical shock to the accelerator pedal.
      • Do not disassemble the accelerator pedal assembly.

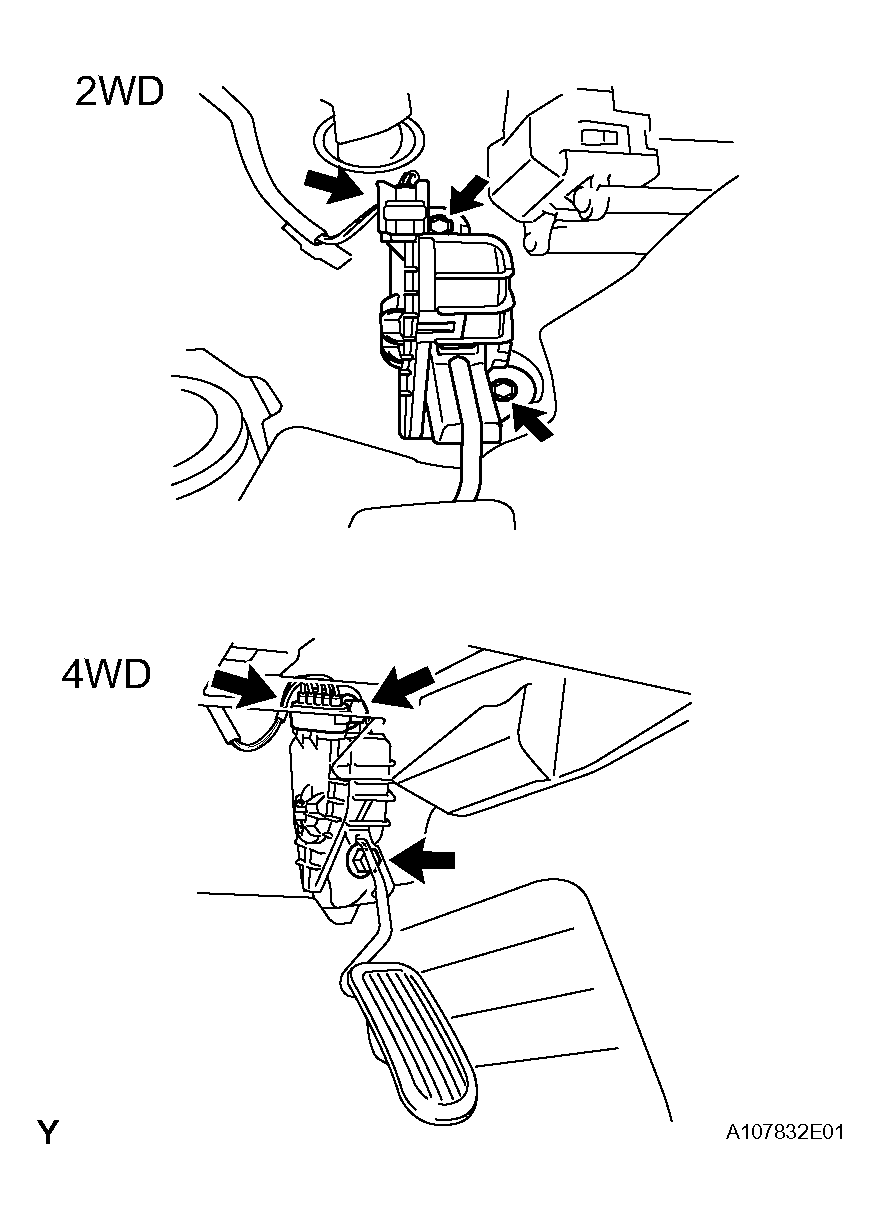

        Fig 1: Identifying Accelerator Pedal
        G04018135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
