Crankshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL (see  REMOVAL   )
  3. REMOVE ENGINE ROOM SIDE COVER RH (see  REMOVAL   )
  4. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL   )
  5. REMOVE NO. 1 AIR CLEANER INLET
    1. Remove the bolt and air cleaner inlet.
  6. REMOVE V-BANK COVER
    1. Remove the 2 nuts and V-bank cover.
  7. REMOVE FAN AND GENERATOR V-BELT (See  REMOVAL  )

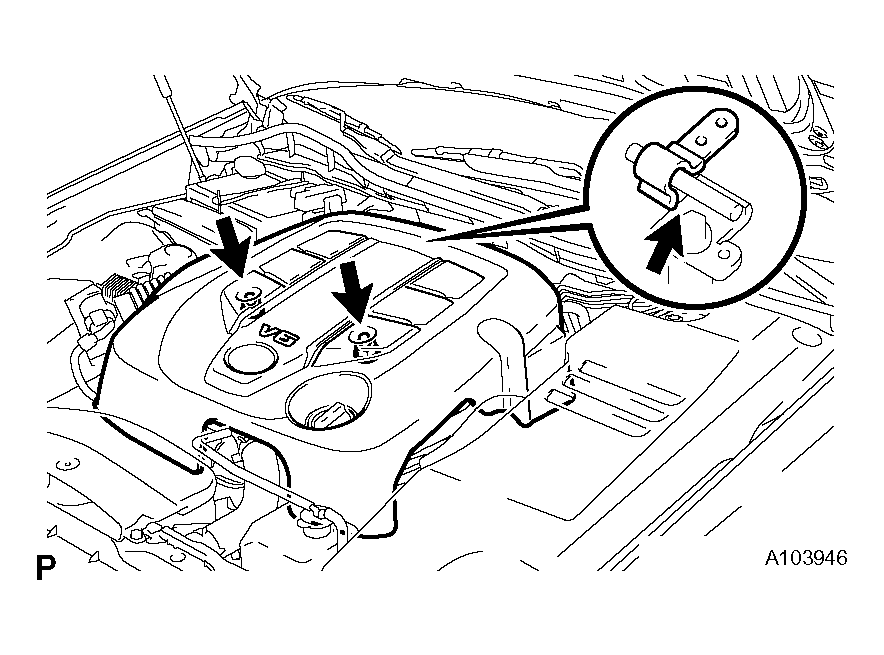

    Fig 1: Identifying V-Bank Cover
    G04018061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ENGINE UNDER COVER
    1. Using a clip remover, remove the 3 clips.
    2. Remove the 10 screws and under cover.
  9. DISCONNECT COMPRESSOR WITH PULLEY ASSEMBLY (See  REMOVAL  )
    Fig 2: Identifying Engine Under Cover
    G04018066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

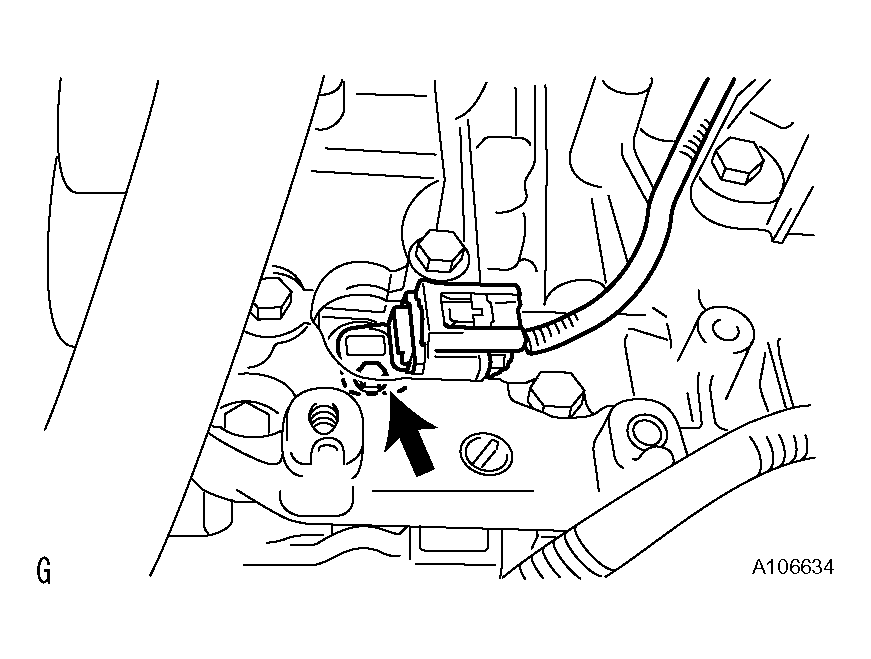

      Fig 3: Identifying Crankshaft Position Sensor
      G04018063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
