Mass Air Flow Meter: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL   )
  3. REMOVE ENGINE ROOM SIDE COVER RH (See  REMOVAL   )
  4. REMOVE MASS AIR FLOW METER
    1. Disconnect the MAF meter connector.
    2. Remove the 2 screws and MAF meter.
    3. Remove the O-ring from the MAF meter.

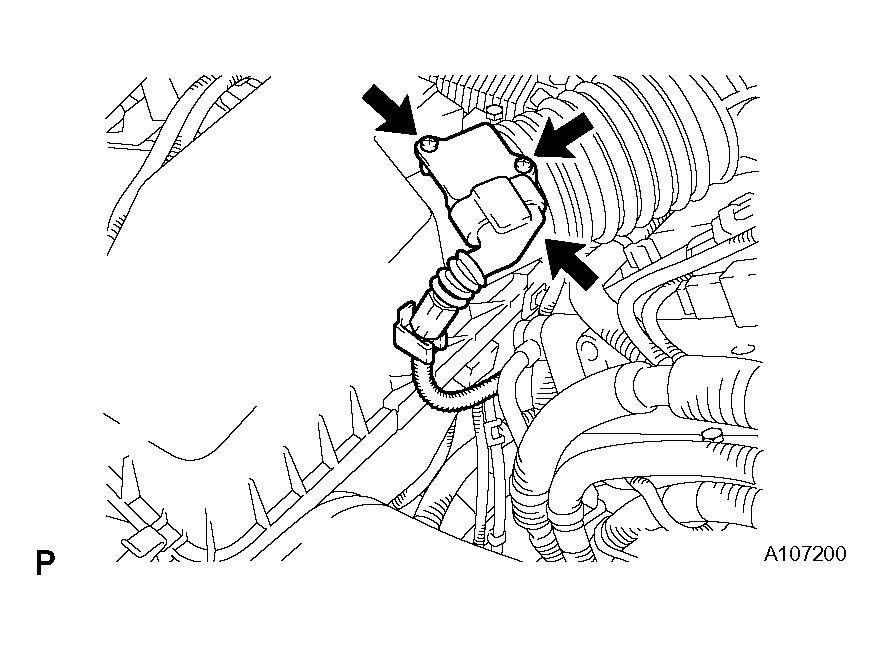

      Fig 1: Identifying Mass Air Flow Meter
      G04018038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
