System Diagram

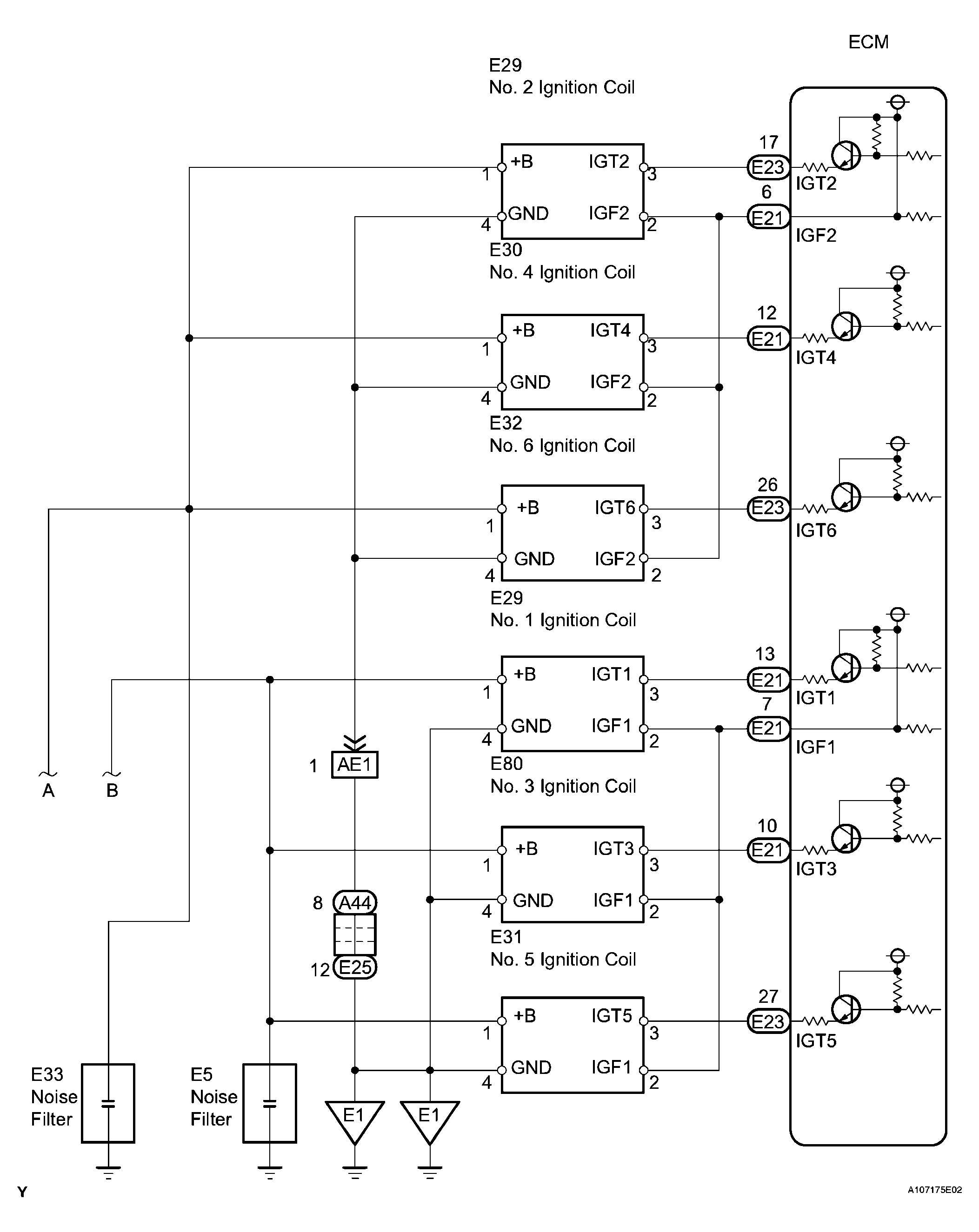

Fig 1: System Diagram - Ignition (1 Of 2)
G04018994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

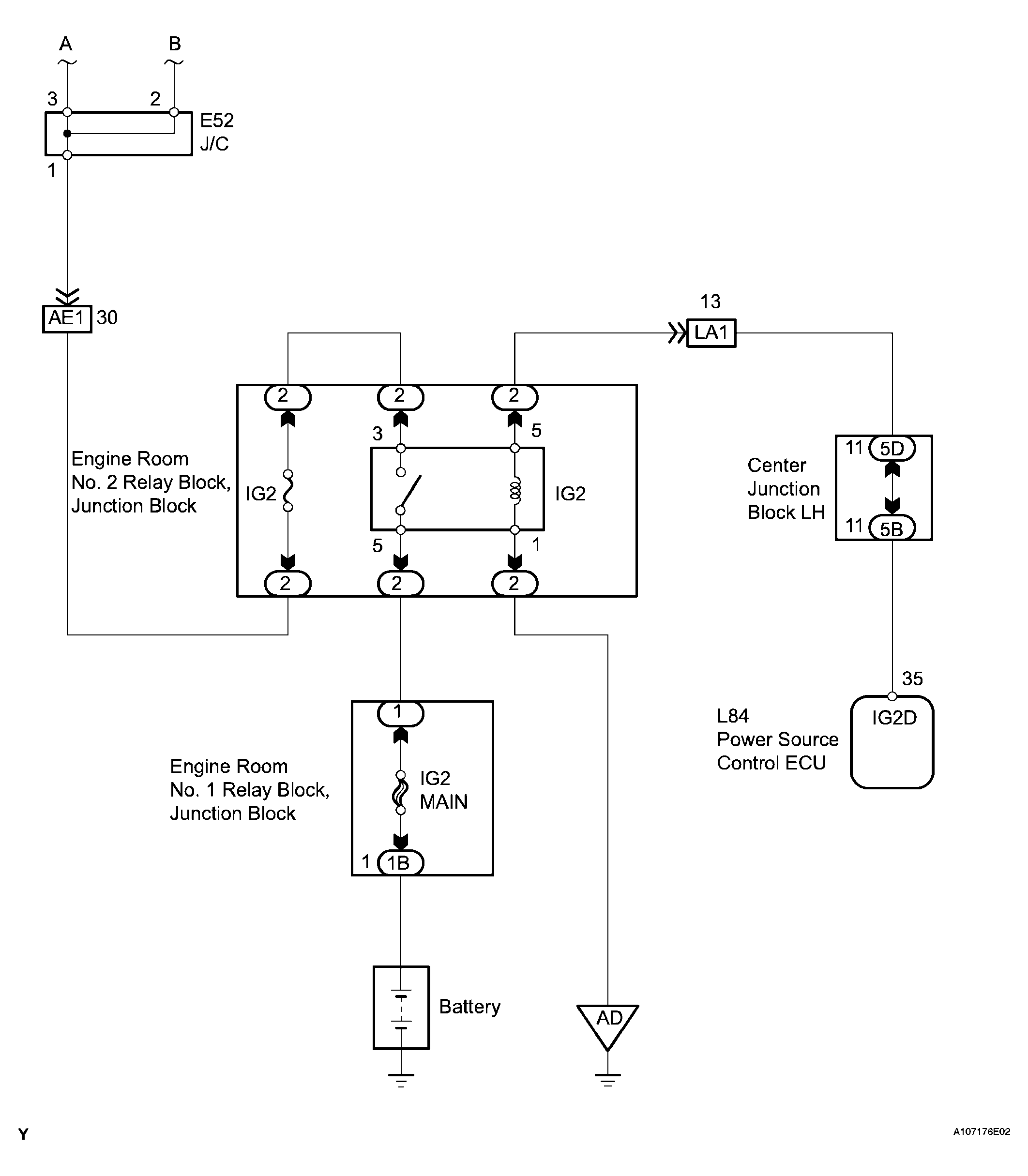

Fig 2: System Diagram - Ignition (2 Of 2)
G04018995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
