Parts Location

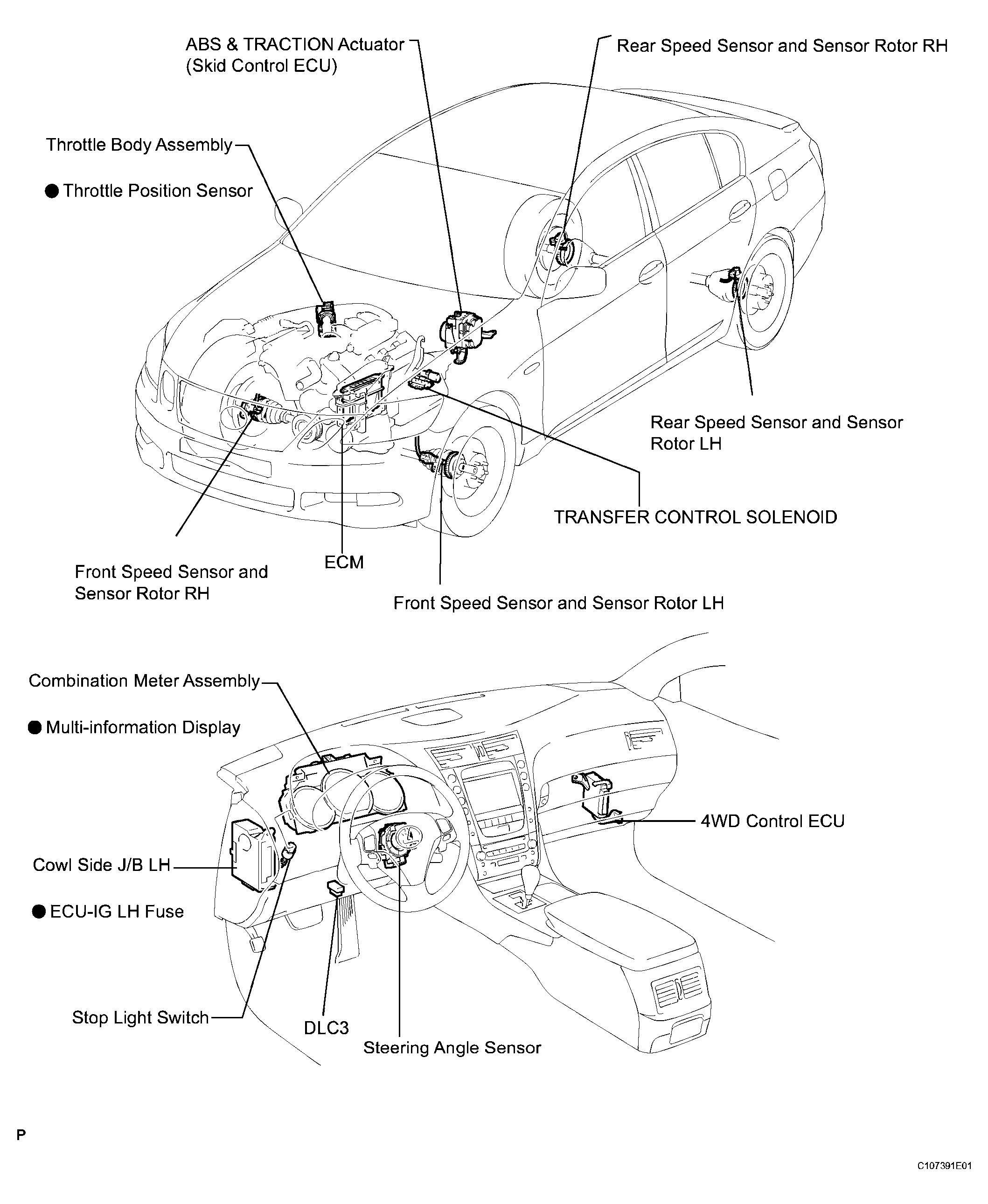

Fig 1: Identifying UF1AE Transfer Parts Location

G04020302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
