Transfer Wire: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Transfer Wire Replacement Components With Torque Specifications (1 Of 2)
G04020471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

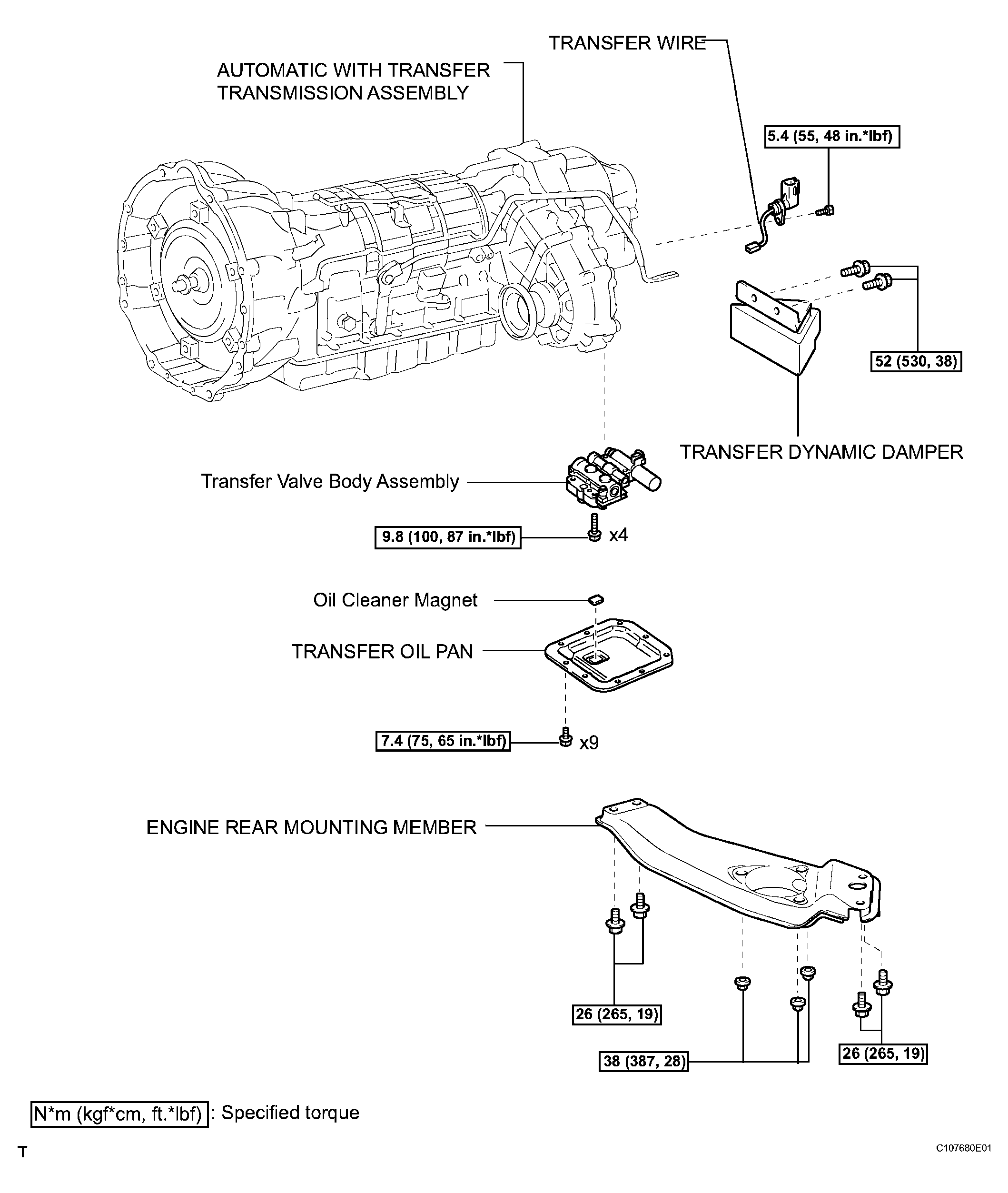

Fig 2: Transfer Wire Replacement Components With Torque Specifications (2 Of 2)
G04020472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
