Roof Headlining: Components

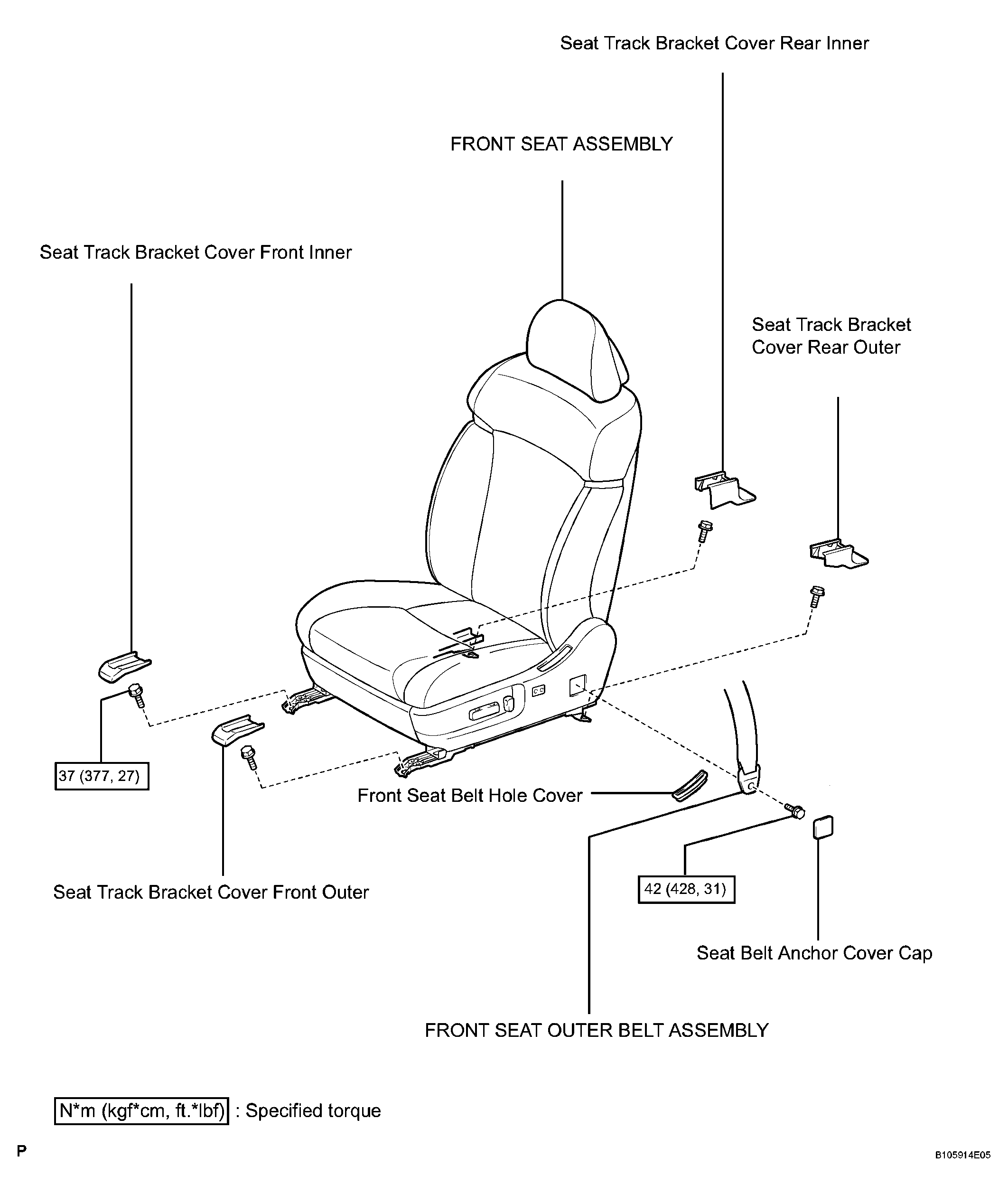

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 7)
G04023925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

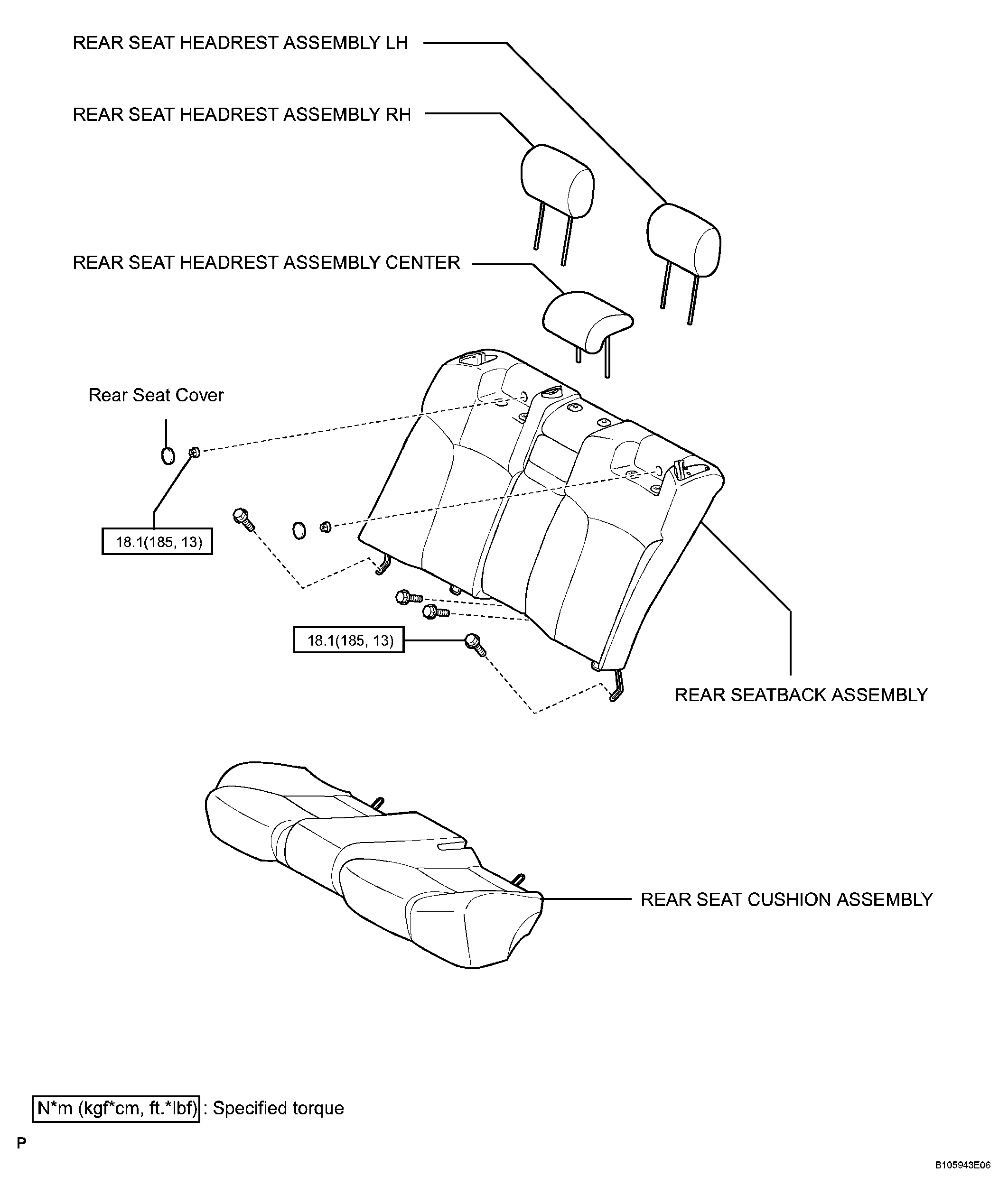

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 7)
G04023926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

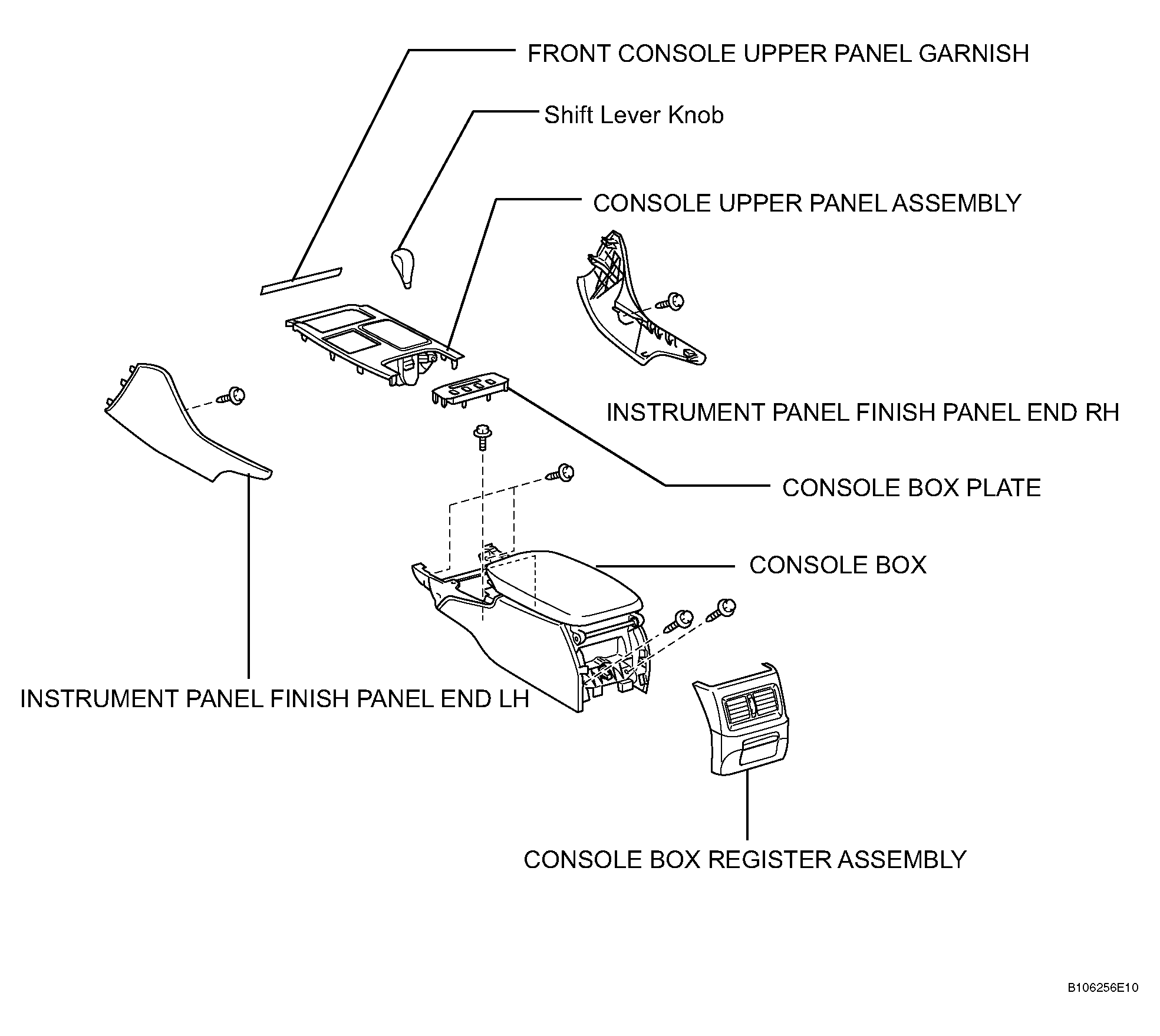

Fig 3: Identifying Roof Headlining Components (3 Of 7)
G04023927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

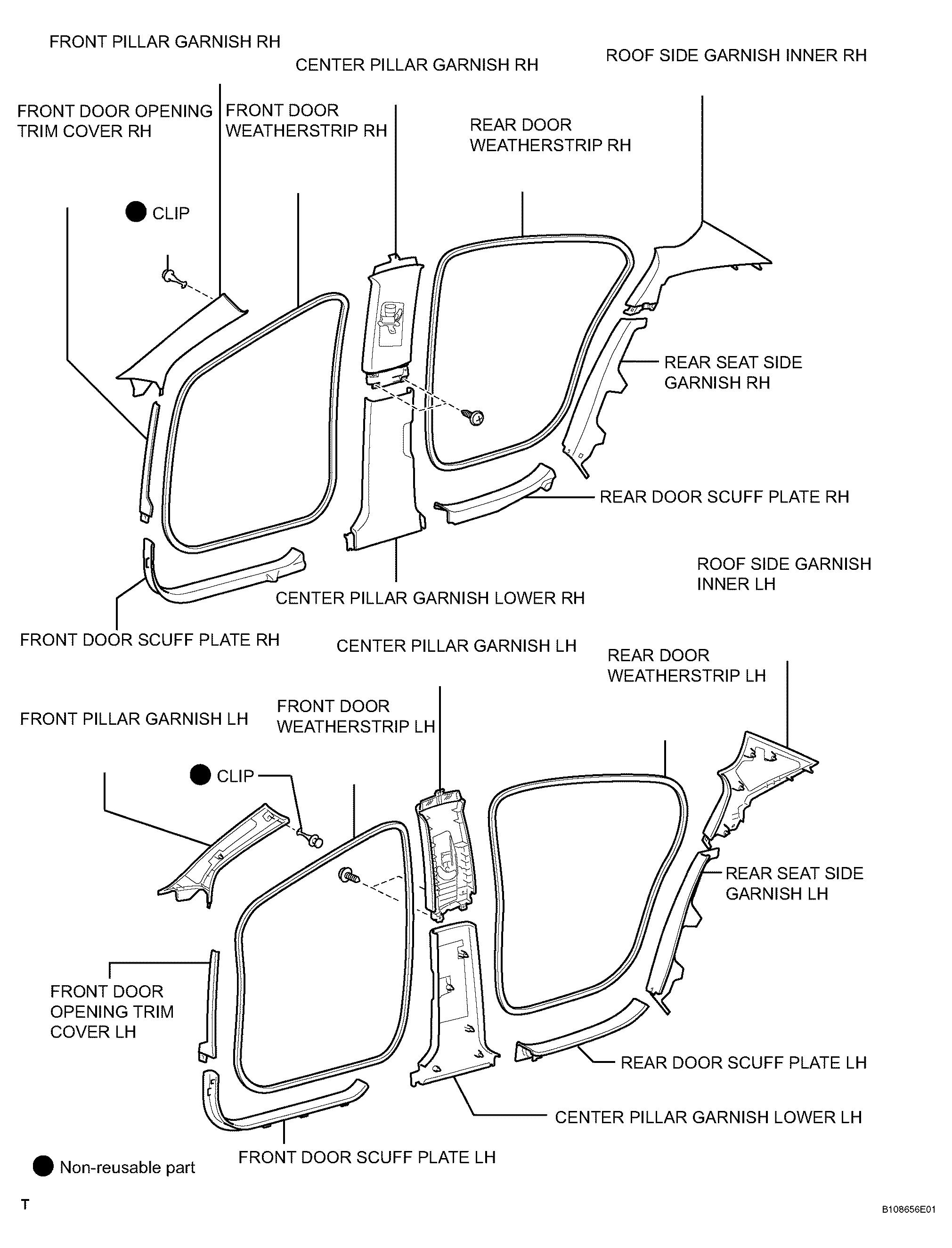

Fig 4: Identifying Roof Headlining Components (4 Of 7)
G04023928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

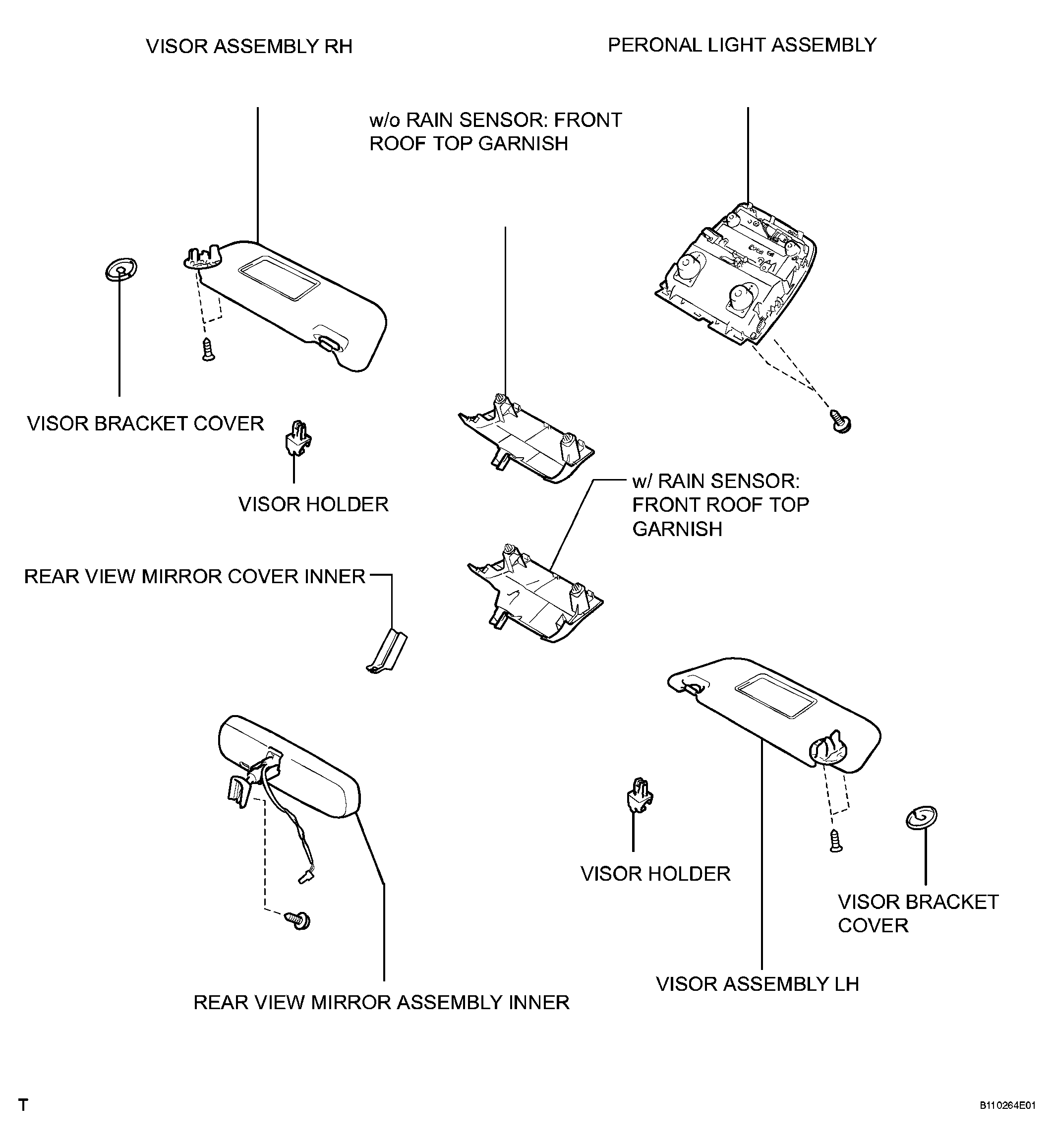

Fig 5: Identifying Roof Headlining Components (5 Of 7)
G04023929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

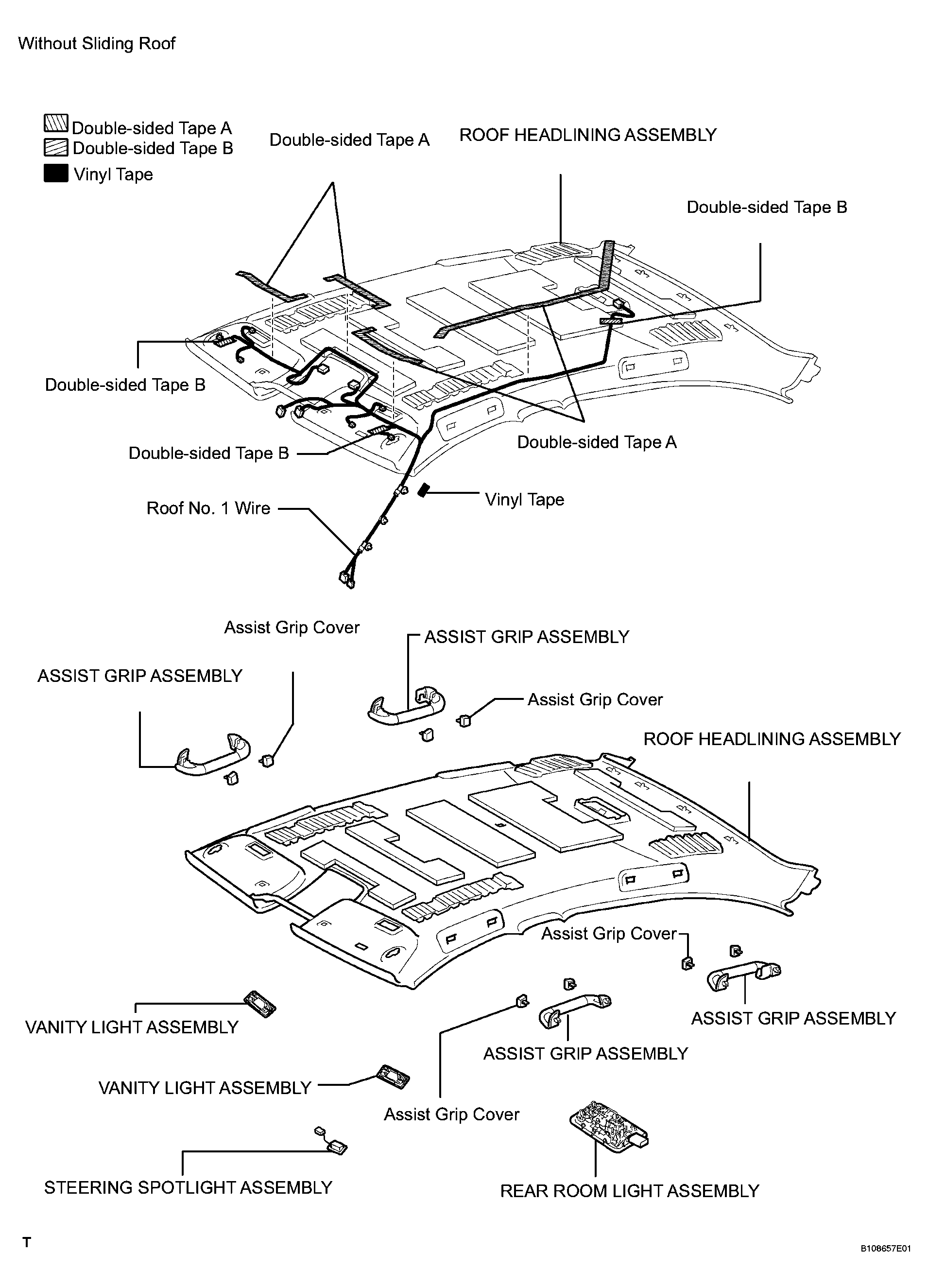

Fig 6: Identifying Roof Headlining Components (6 Of 7)
G04023930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

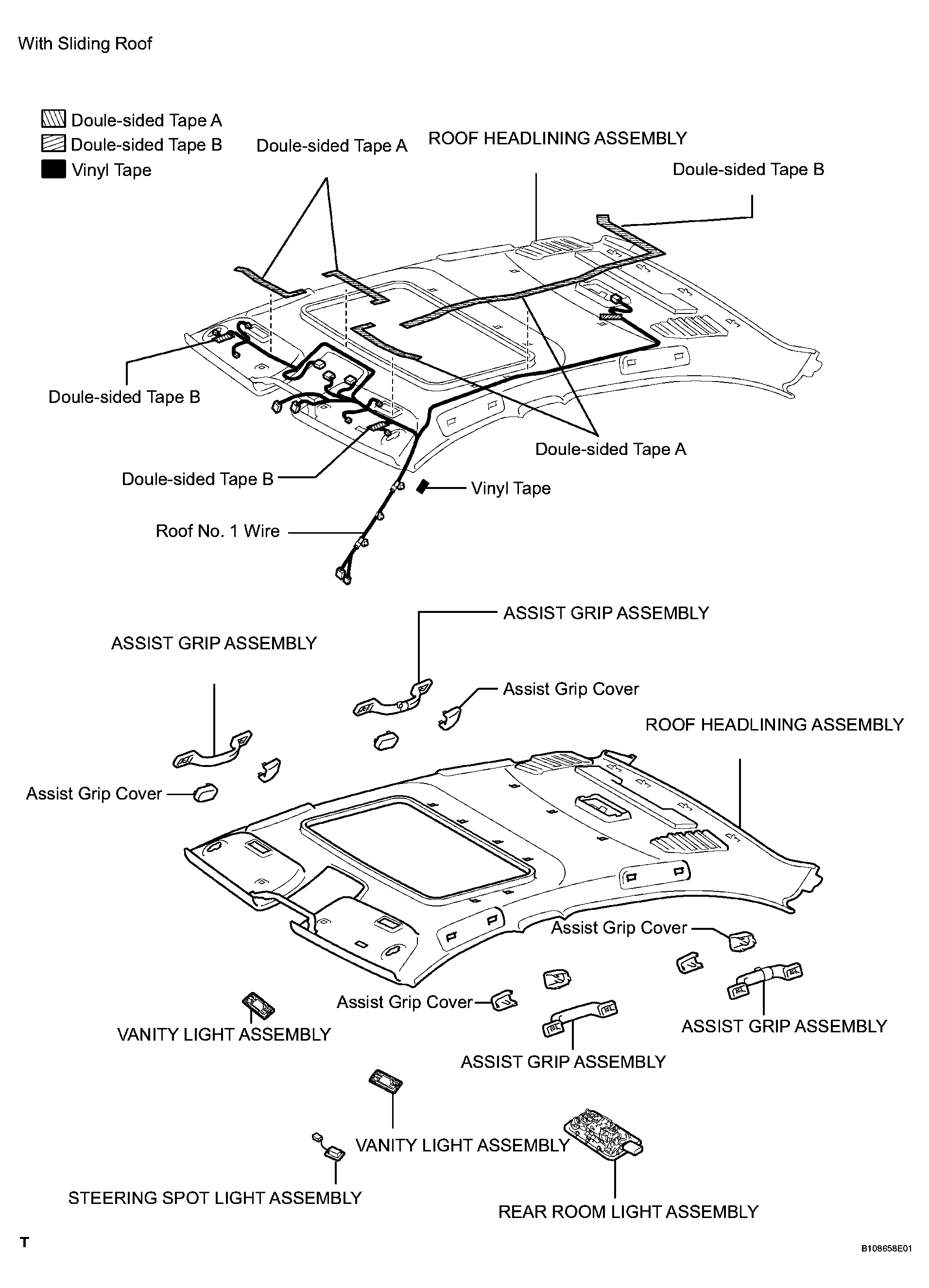

Fig 7: Identifying Roof Headlining Components (7 Of 7)
G04023931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
