Seat Memory Switch: Installation

HINT:

• Use the same procedures for the RH and LH side.
• A bolt without a torque specification is shown in the standard bolt chart. (see SPECIFIED TORQUE FOR STANDARD BOLTS )

1. INSTALL SEAT MEMORY SWITCH
   1. Install the switch with the 2 screws.
   2. Connect the connector.
      Fig 1: View Of Screws And Memory Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT DOOR TRIM COVER LH
   1. Connect the 2 cables to the inside handle.
   2. Attach the 9 clips and install the trim cover.

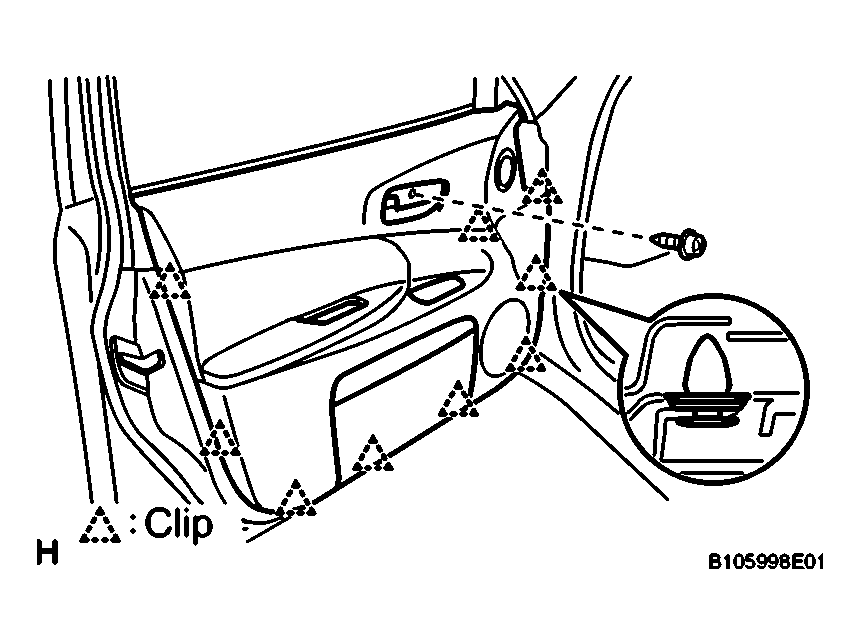

      Fig 2: Attaching Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Attach the 2 claws to install the trim lower cover.
   4. Install the screw.
      Fig 3: Identifying Trim Lower Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL DOOR INSIDE HANDLE BEZEL
   1. Attach the 3 claws to install the bezel.
      Fig 4: Identifying Door Inside Handle Bezel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
