System Diagram

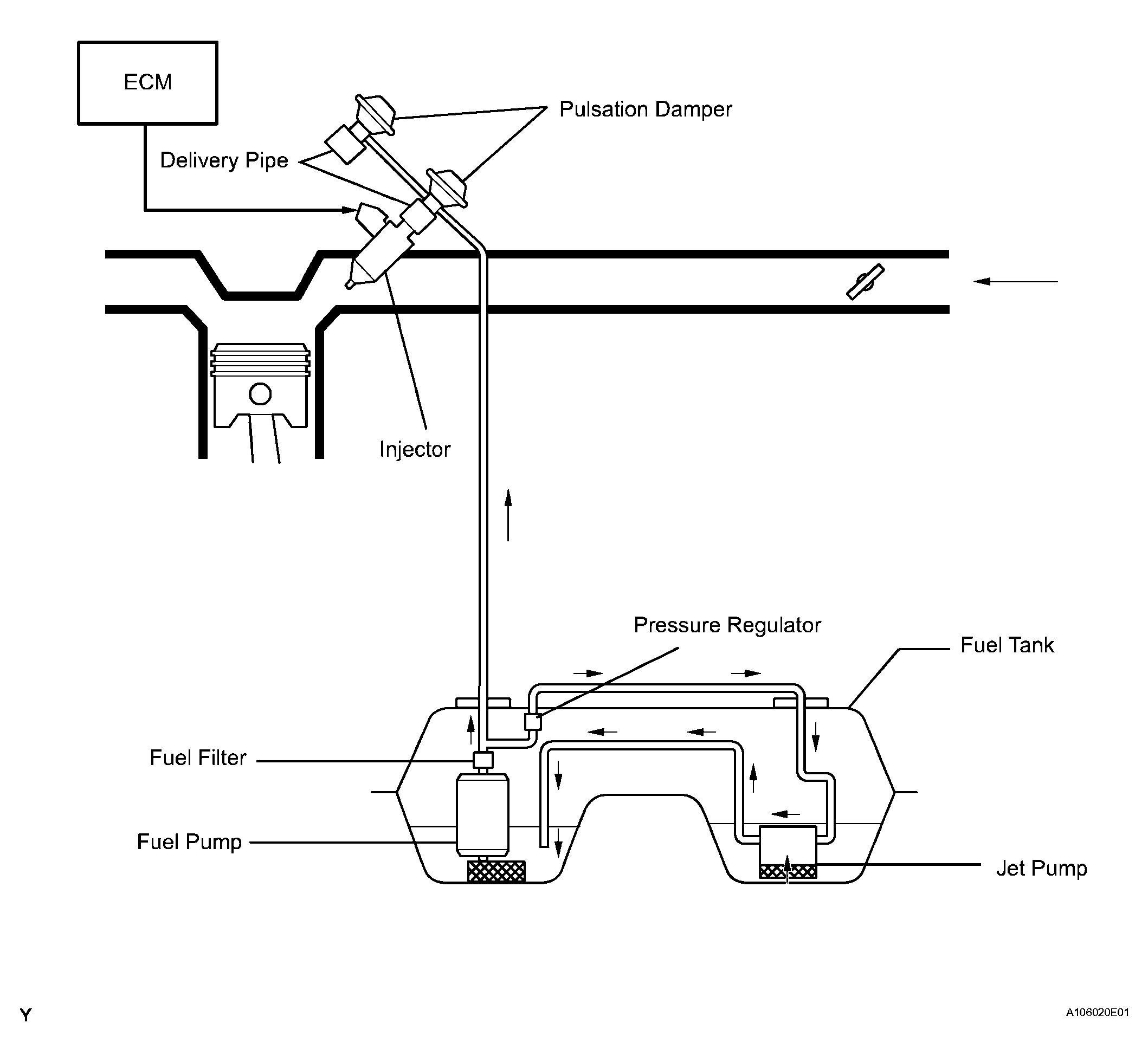

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow Diagram
    G04027769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

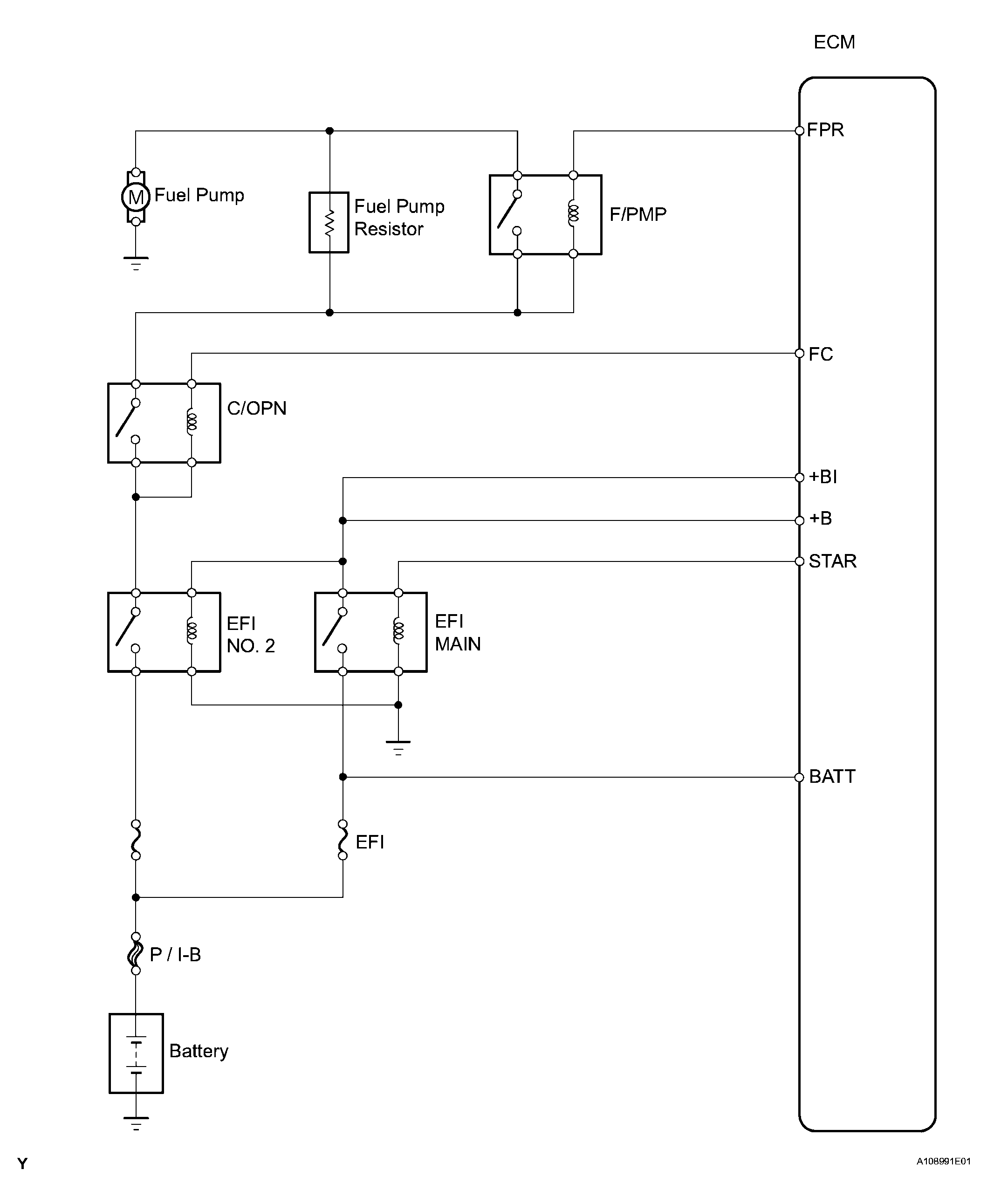

  2. FUEL SYSTEM WIRING DIAGRAM
    Fig 2: Fuel System Wiring Diagram (1 Of 2)
    G04027770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

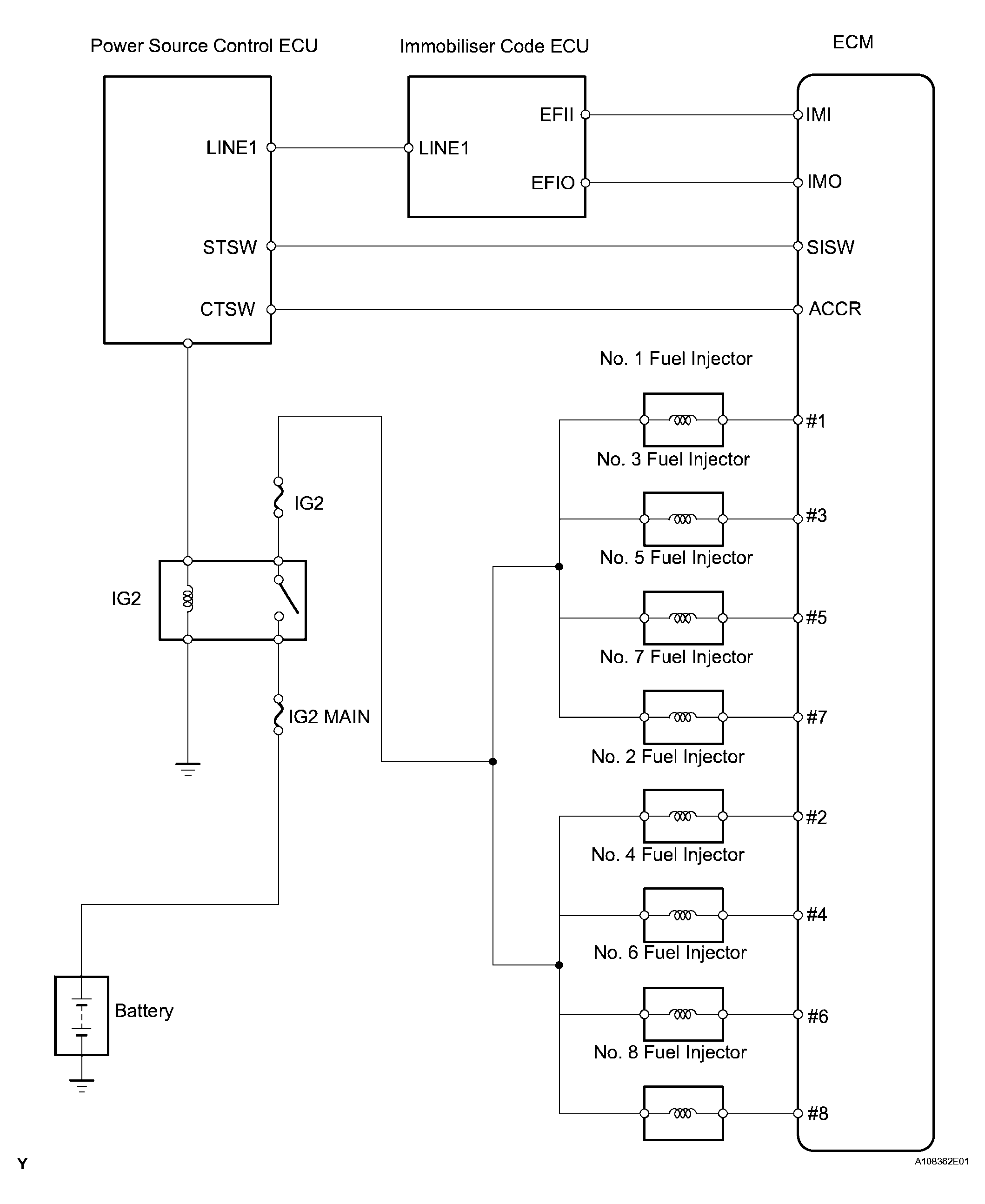

  3. FUEL SYSTEM WIRING DIAGRAM 2
    Fig 3: Fuel System Wiring Diagram (2 Of 2)
    G04027771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
