EVAP Inspection Procedure: Wiring Diagram

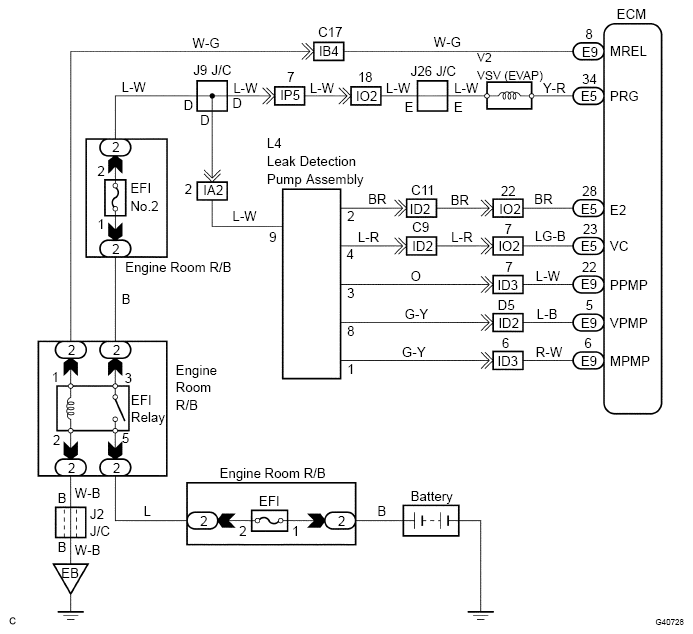

Fig 1: Wiring Diagram Of EVAP

G04676470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
