Combination Meter: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER GLASS
1. Install the glass and attach the 7 claws.

  Fig 1: Identifying Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter glass's wire harness with the clamps.

  Fig 2: Identifying Combination Meter Glass'S Wire Harness With Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 3 connectors.

  Fig 3: Identifying Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Close the cover.
5. Attach the 2 claws.

  Fig 4: Closing Cover And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.

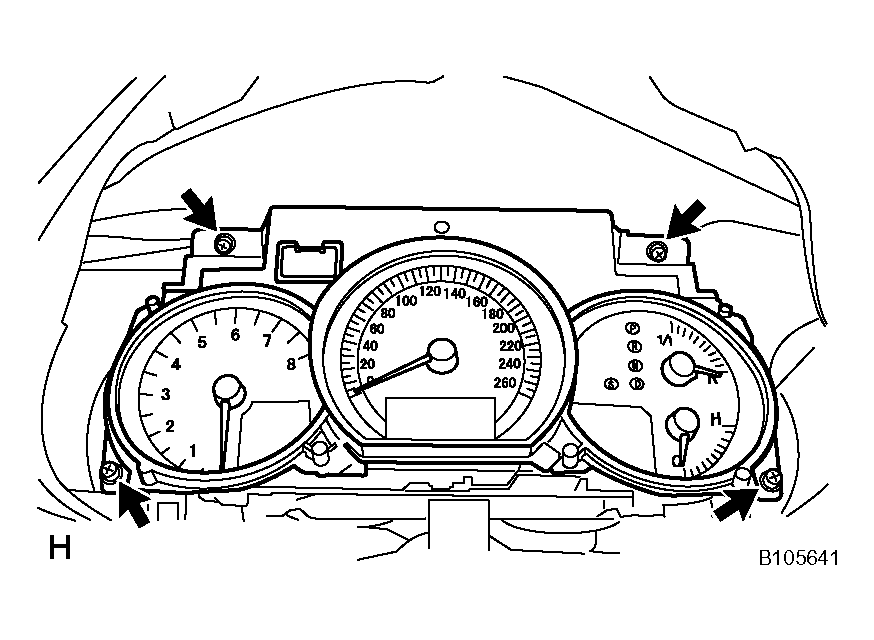

2. Install the combination meter with the 4 screws.

  Fig 5: Locating Combination Meter Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Connect the connector.

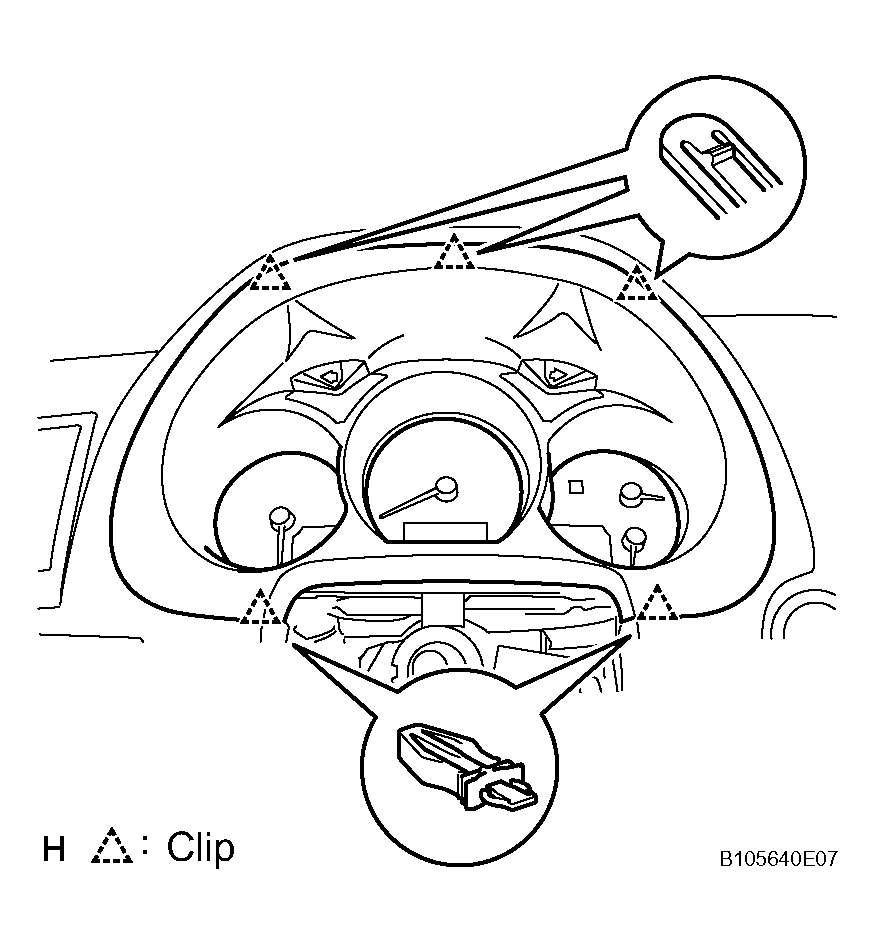

2. Attach the 5 clips to install the cluster finish panel.
INSTALL STEERING COLUMN COVER UPPER
For 3GR-FSE (see INSTALLATION )

For 3UZ-FE (see INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Perform initialization (see INITIALIZATION ).
CHECK SRS WARNING LIGHT
Check SRS warning light (see PRECAUTION ).

Fig 6: Identifying Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
