License Plate Light Assembly: Components

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

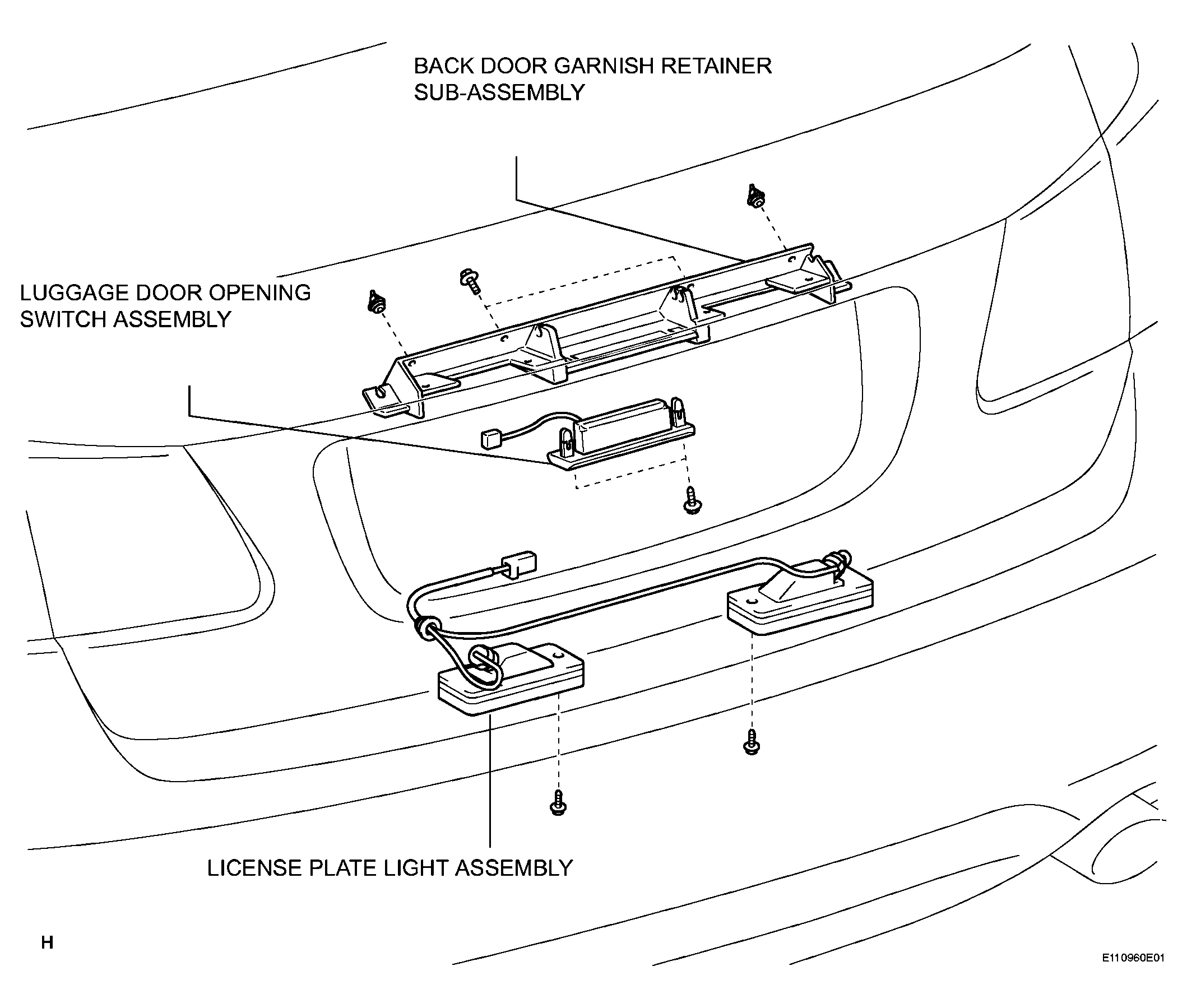

Fig 1: Identifying License Plate Light Component Assembly
G04021692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
