Section 43 (Cigarette Lighter Assembly): Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CIGARETTE LIGHTER ASSEMBLY
1. Rotate the ring nut in the directon indicated by the arrow mark and install the cigarette lighter to the console panel.

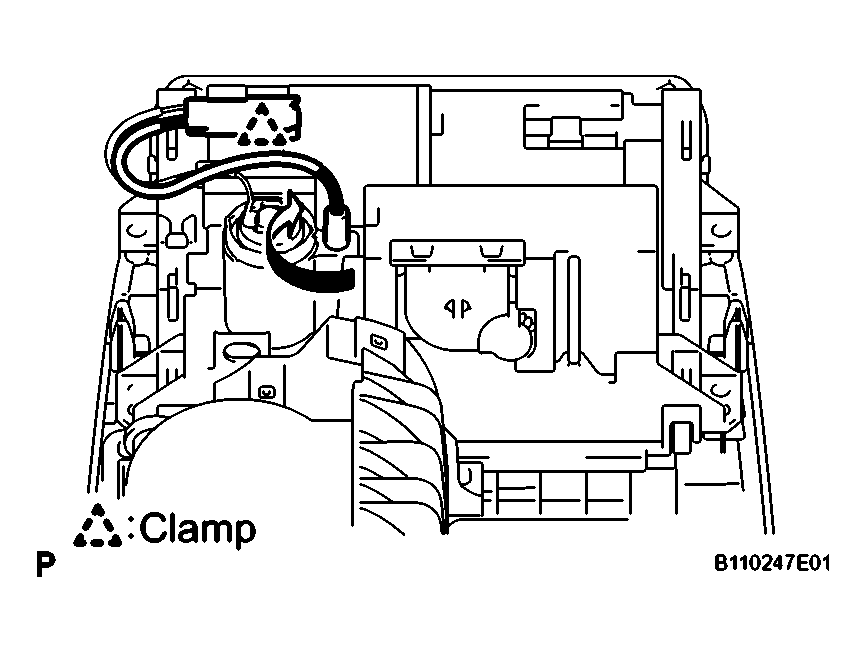

  Fig 1: Installing Cigarette Lighter To Console Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rotate the socket body in the direction indicated by the arrow mark, and install the socket body to the cigarette lighter.
INSTALL CONSOLE UPPER PANEL ASSEMBLY (See INSTALLATION )
INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

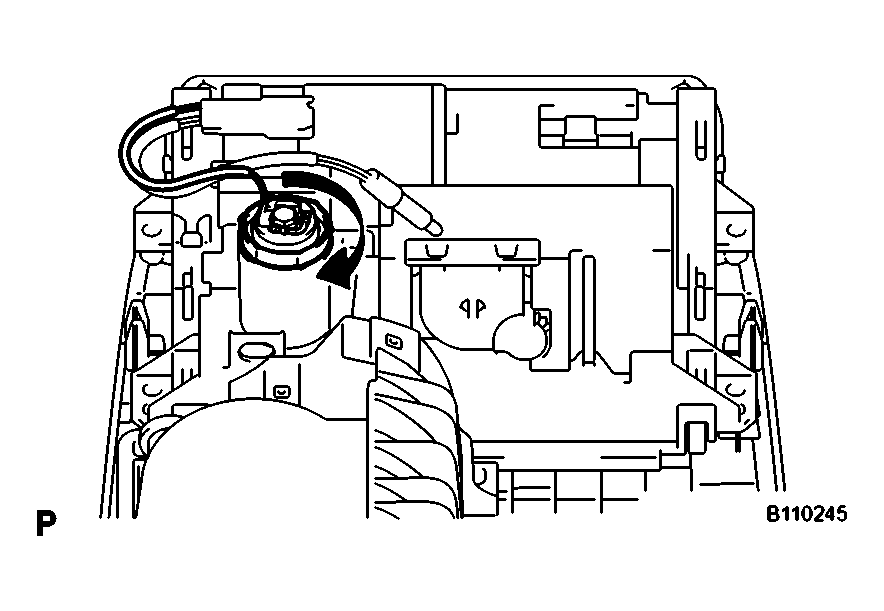

Fig 2: Installing Socket Body To Cigarette Lighter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION )
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
