Clutch Start Switch: Components

WARNING: This page is about a different variant/trim than selected.

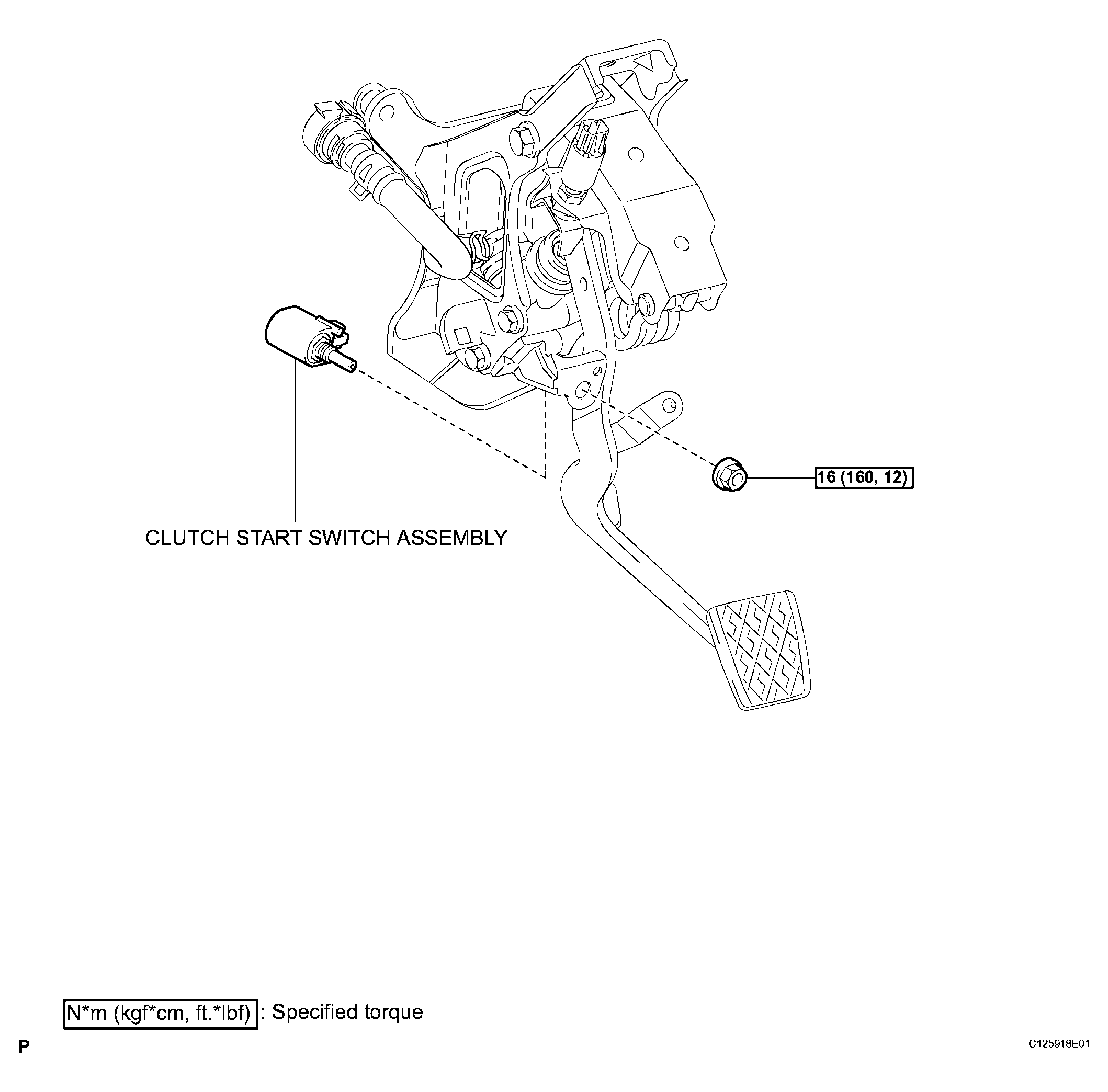

Fig 1: Clutch Start Switch Replacement Components With Torque Specifications
G04046380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
