Fuel Injector

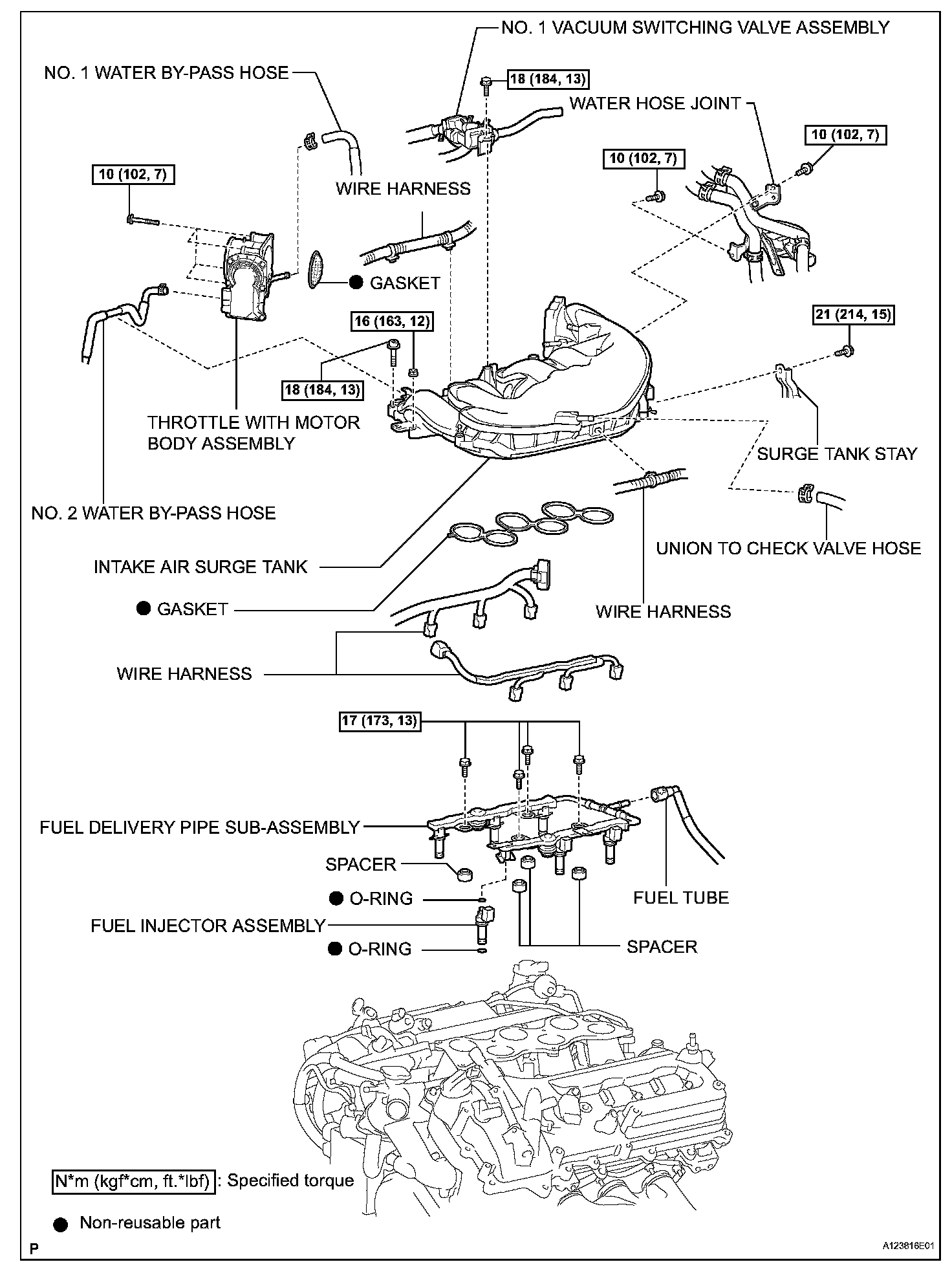

Fuel Injector (for Port Injection):

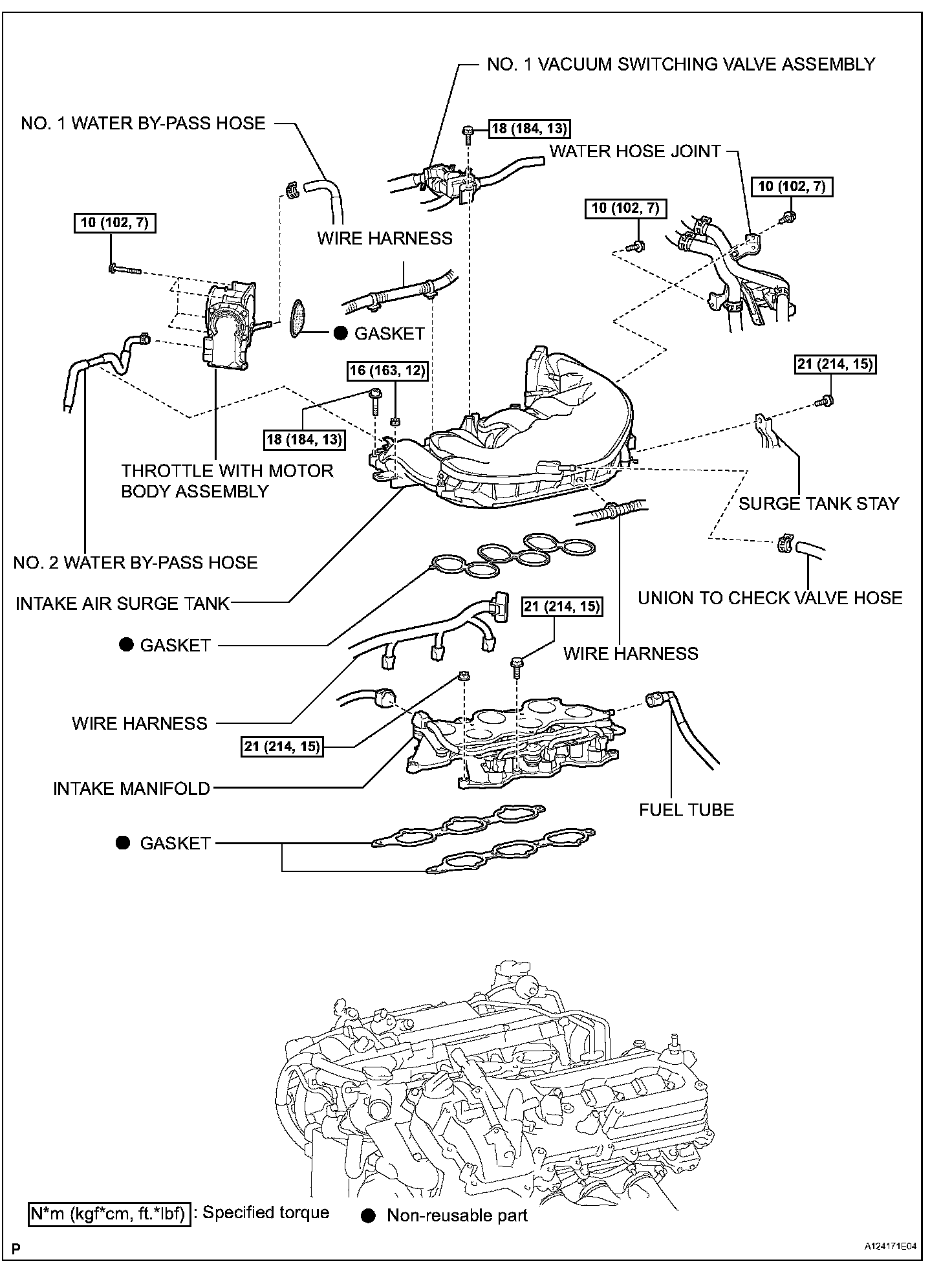

Fuel Injector (for Port Injection):

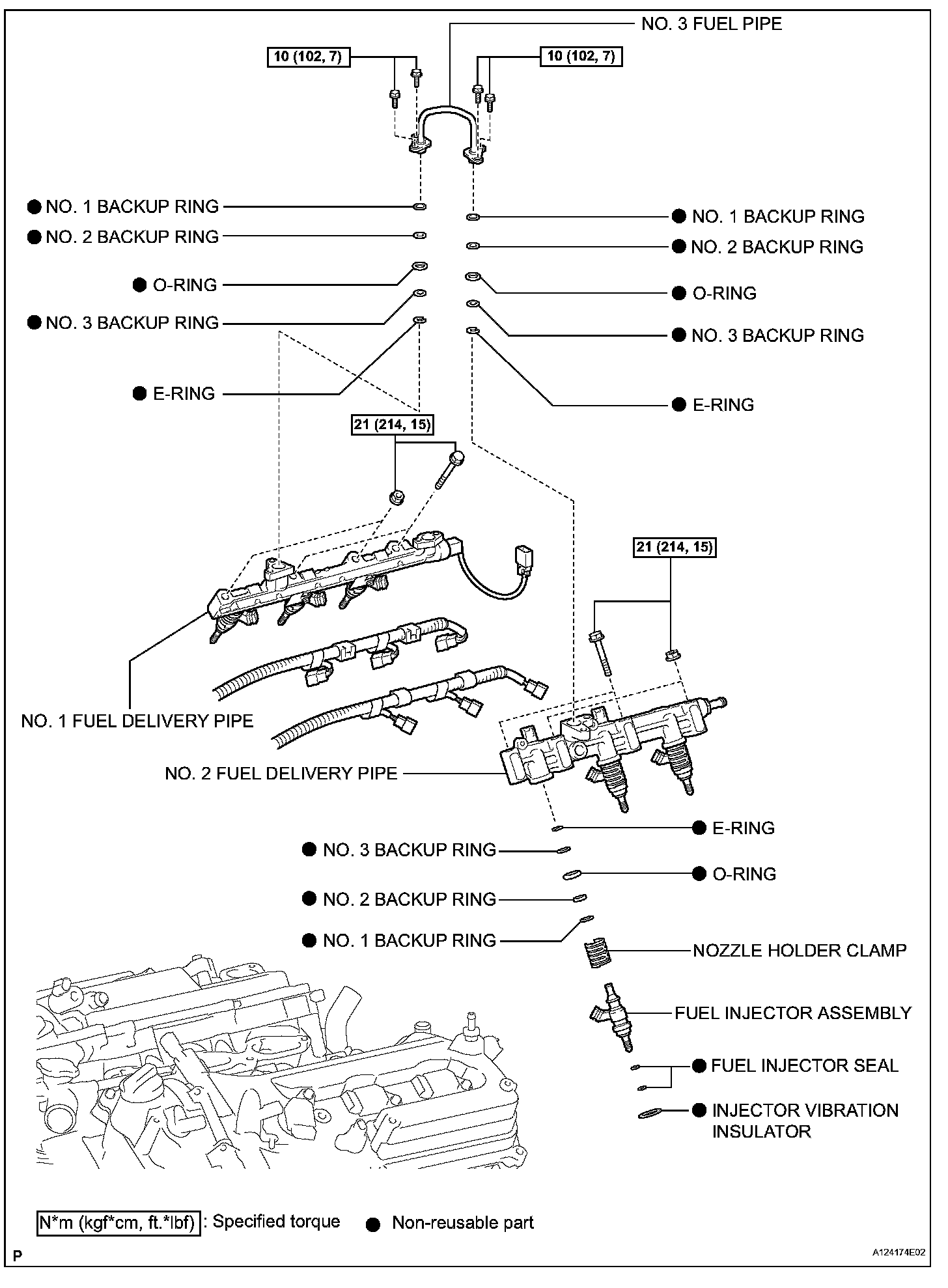

Fuel Injector (for Direct Injection):

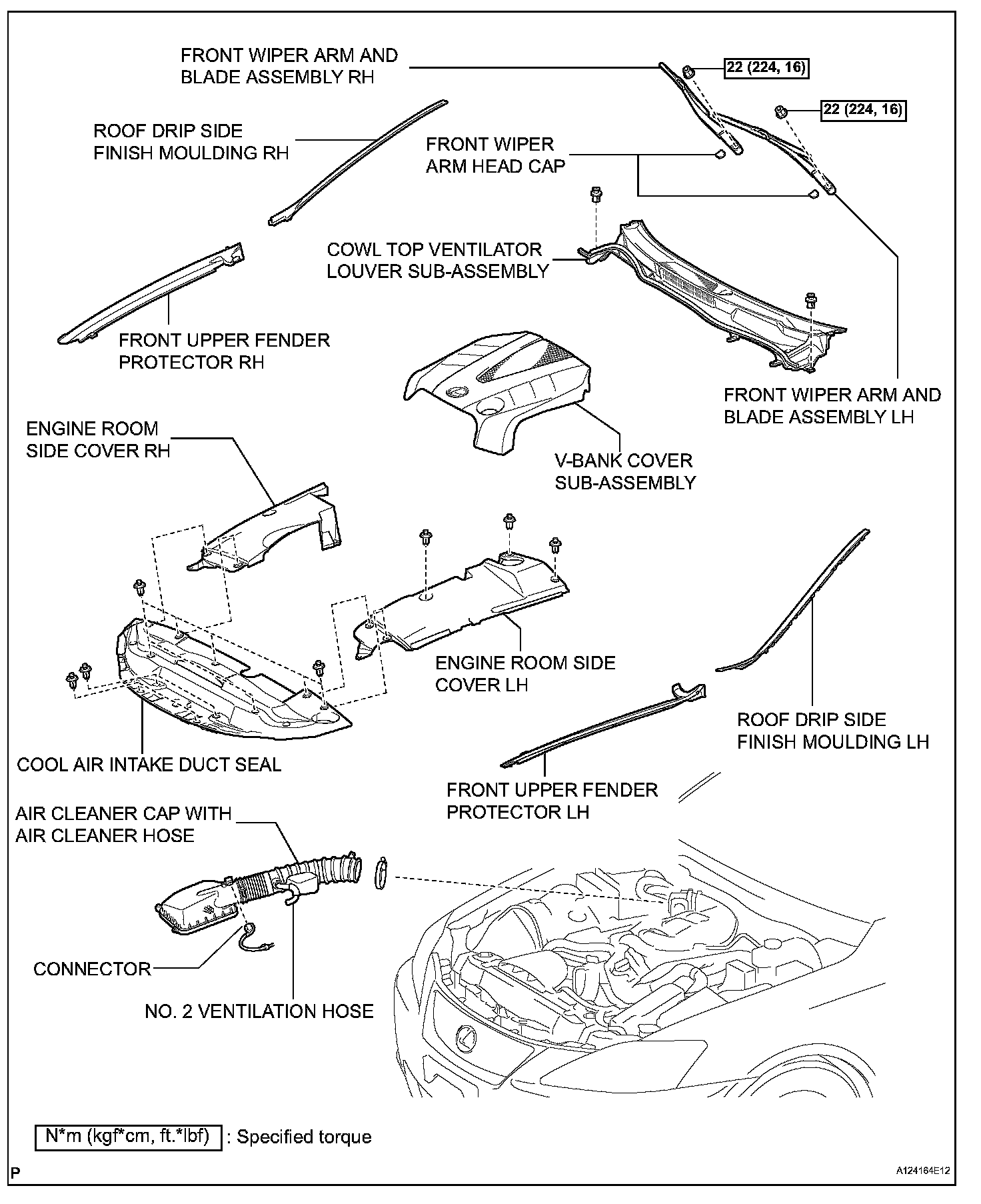

Fuel Injector (for Direct Injection):

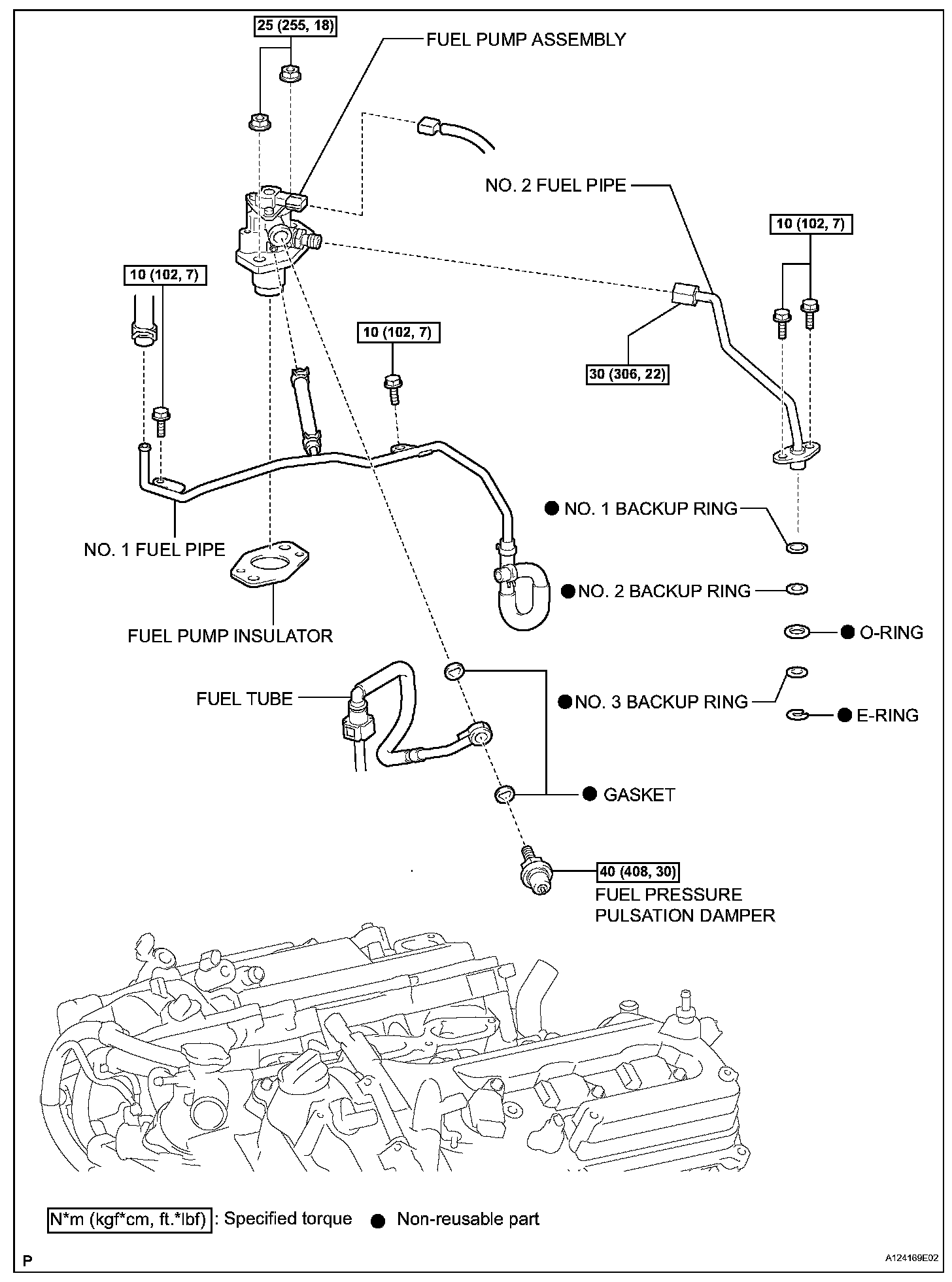

Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):
