Multiplex Communication System
PROBLEM SYMPTOMS TABLEProceed to the reference shown in the table for each malfunction symptom and troubleshoot each circuit.

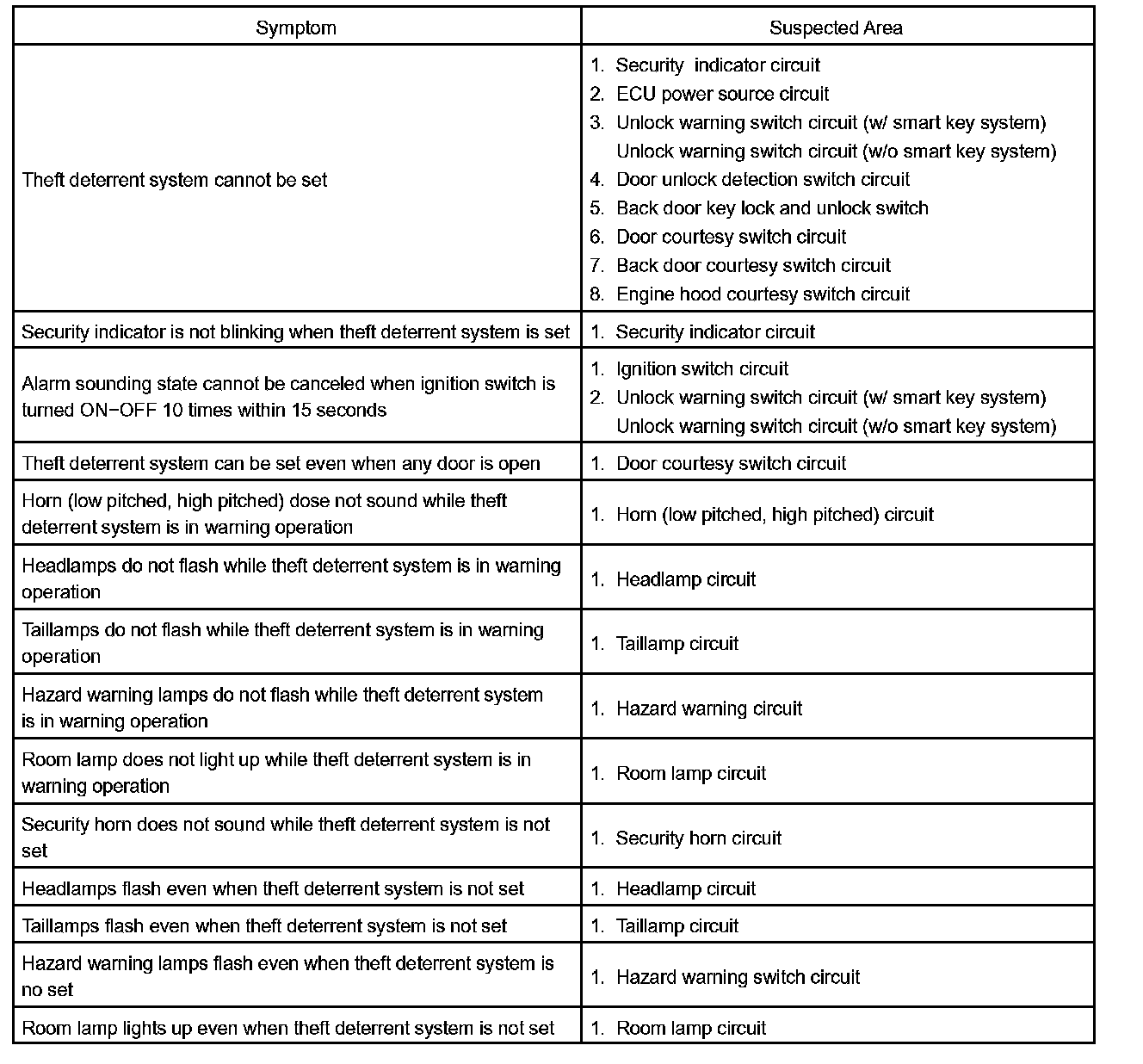

Problem Symptoms Table:
HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system and the wireless door lock control system are operating normally. Check these systems first before troubleshooting the theft deterrent system.
