Fuel Tank: Components

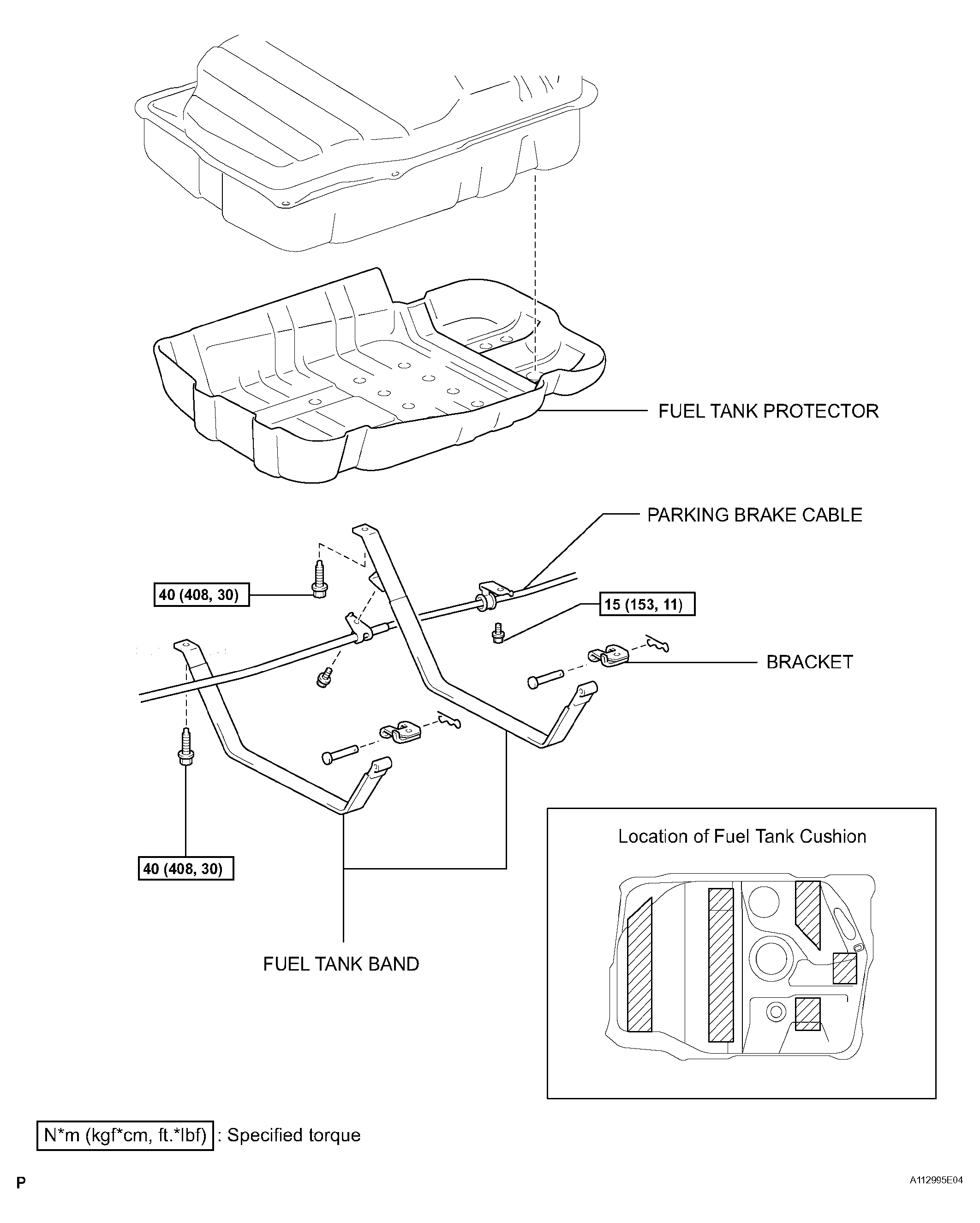

Fig 1: Replacement Components Fuel Tank With Torque Specifications (1 Of 3)
G04062177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

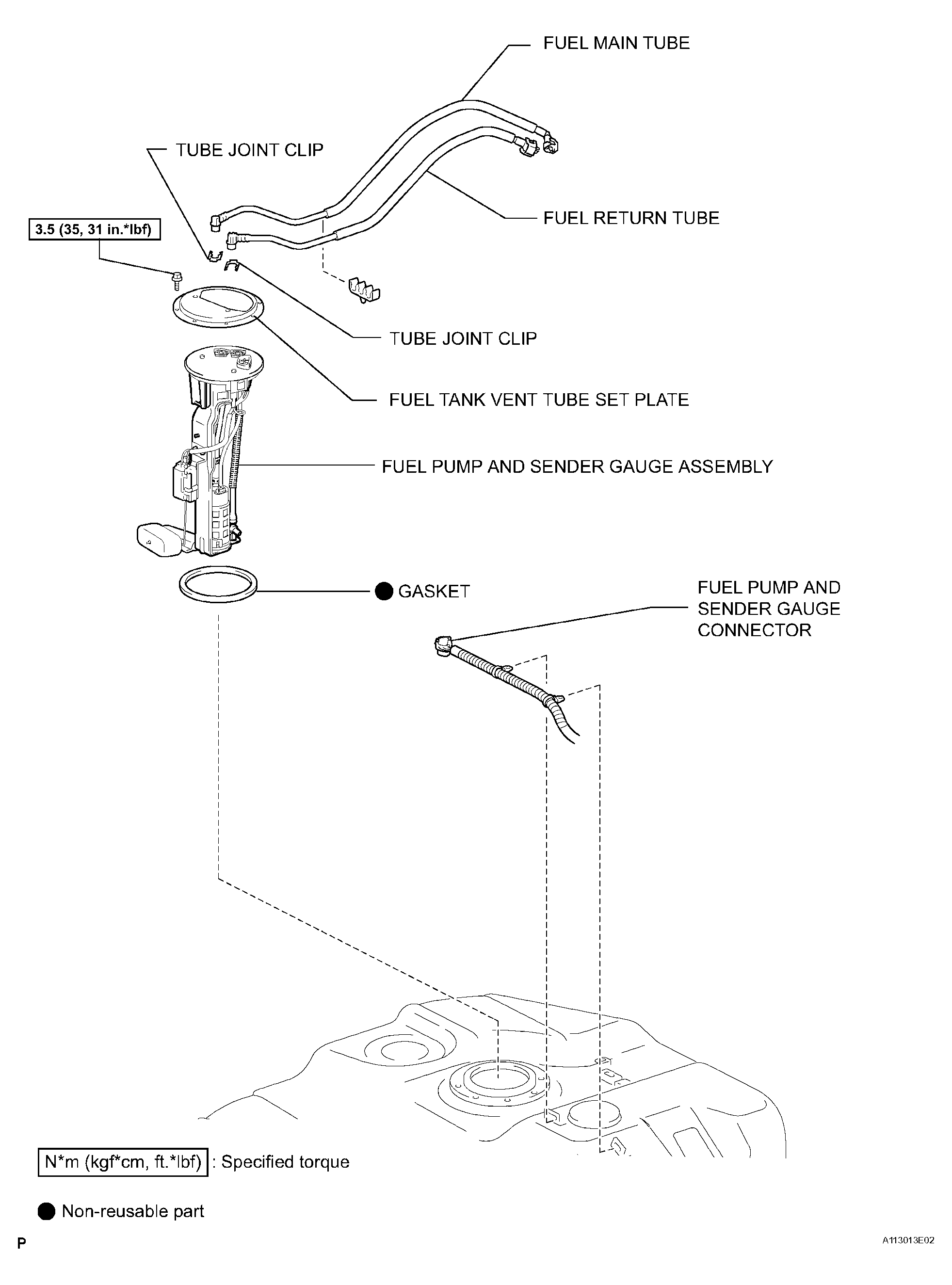

Fig 2: Replacement Components Fuel Tank With Torque Specifications (2 Of 3)
G04062178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

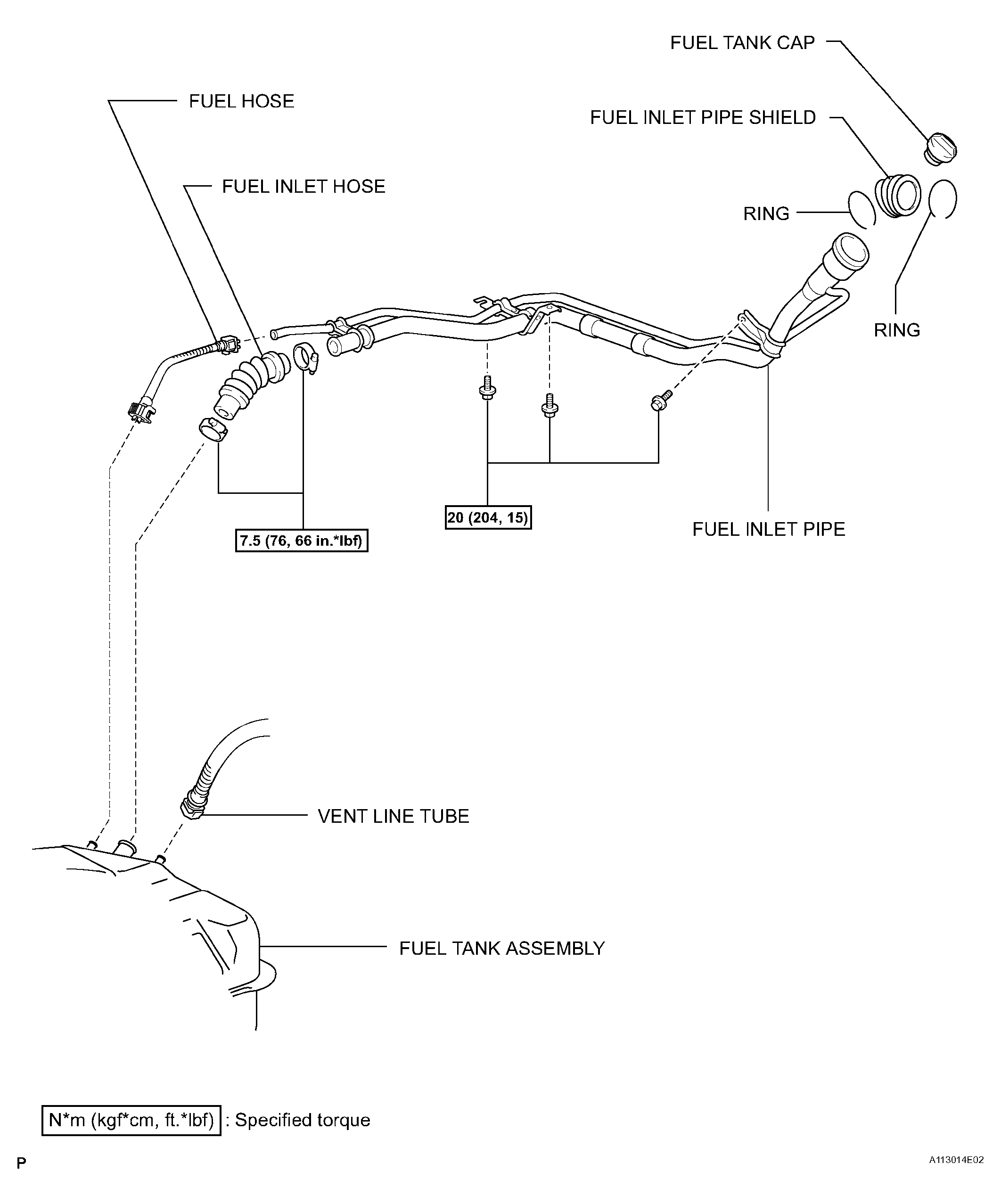

Fig 3: Replacement Components Fuel Tank With Torque Specifications (3 Of 3)
G04062179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
