Throttle Body: Components

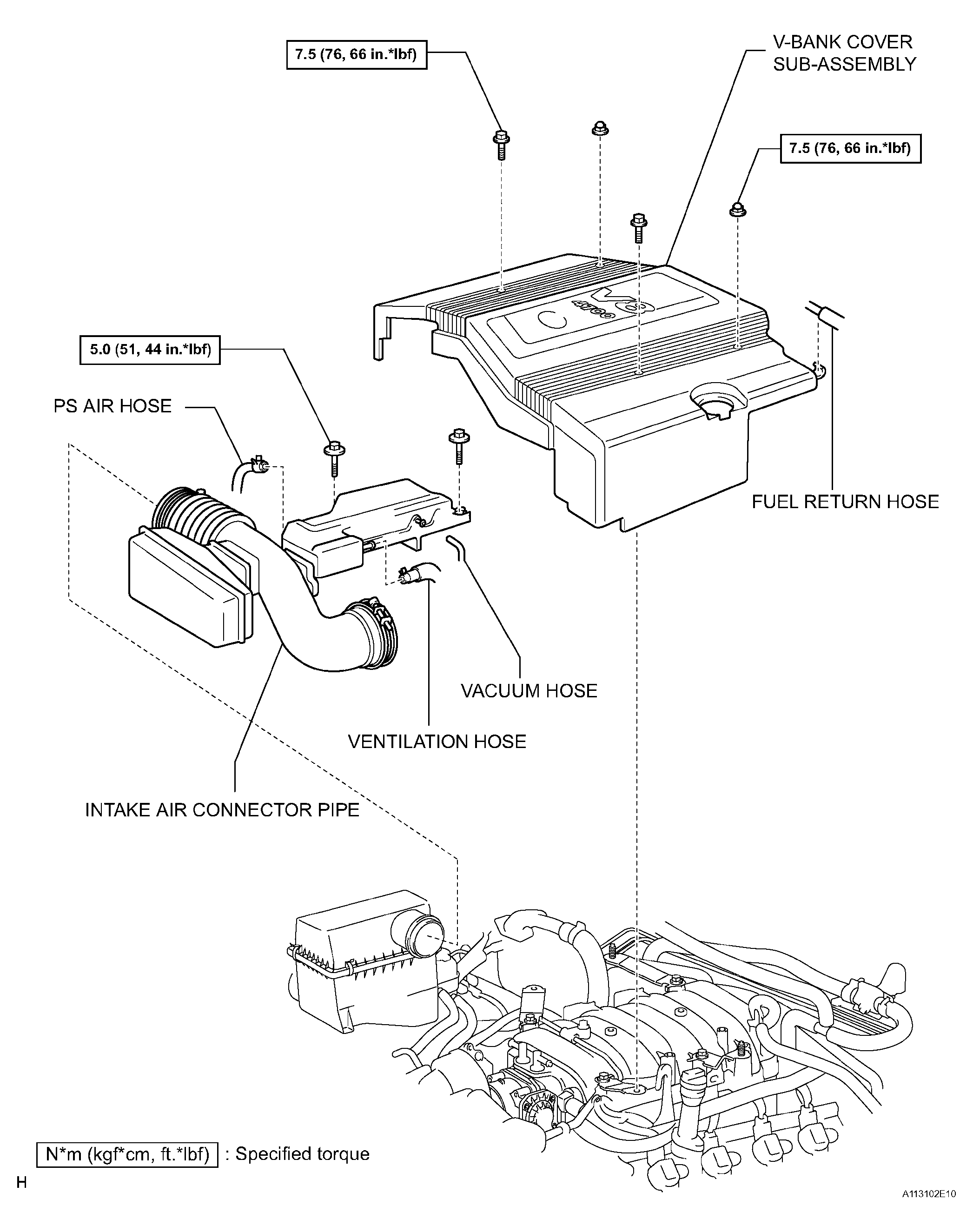

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G04061662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

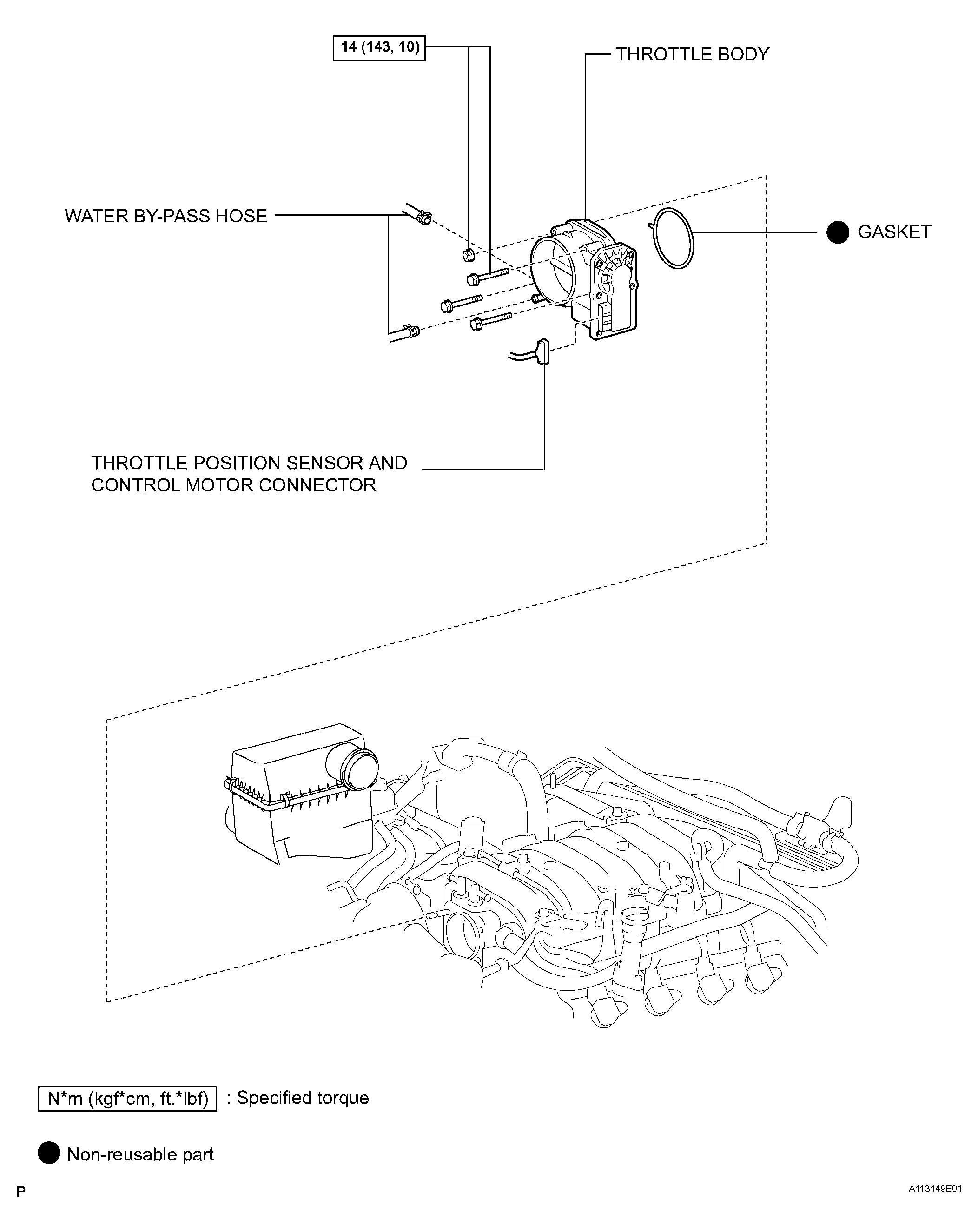

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G04061663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
