Distance Control Ecu: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH
  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER
  3. REMOVE CRUISE CONTROL ECU ASSEMBLY
    1. Disconnect the connector.
    2. Remove the nut and cruise control ECU (distance control ECU) assembly.

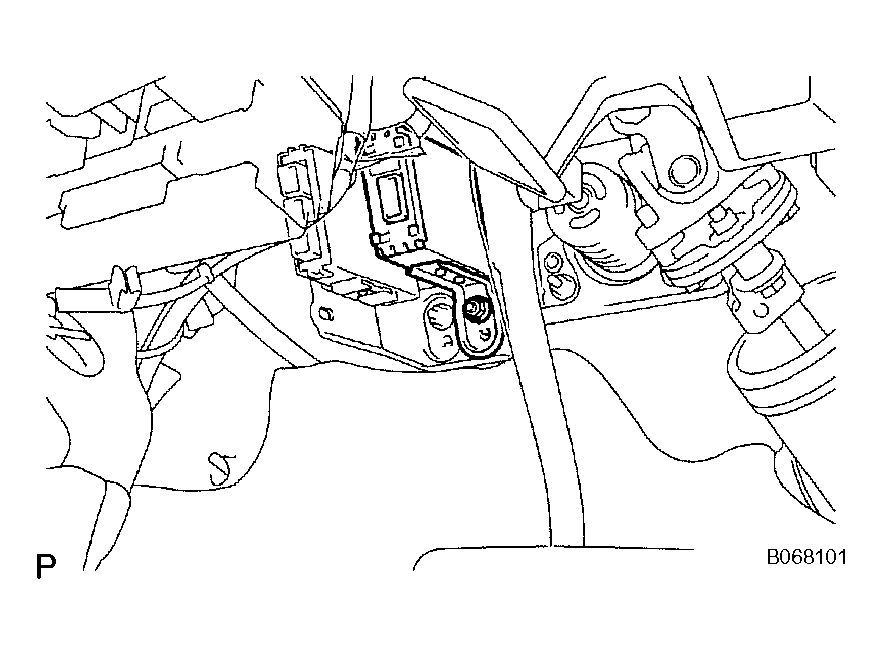

      Fig 1: Removing Cruise Control ECU Assembly
      G04092040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
