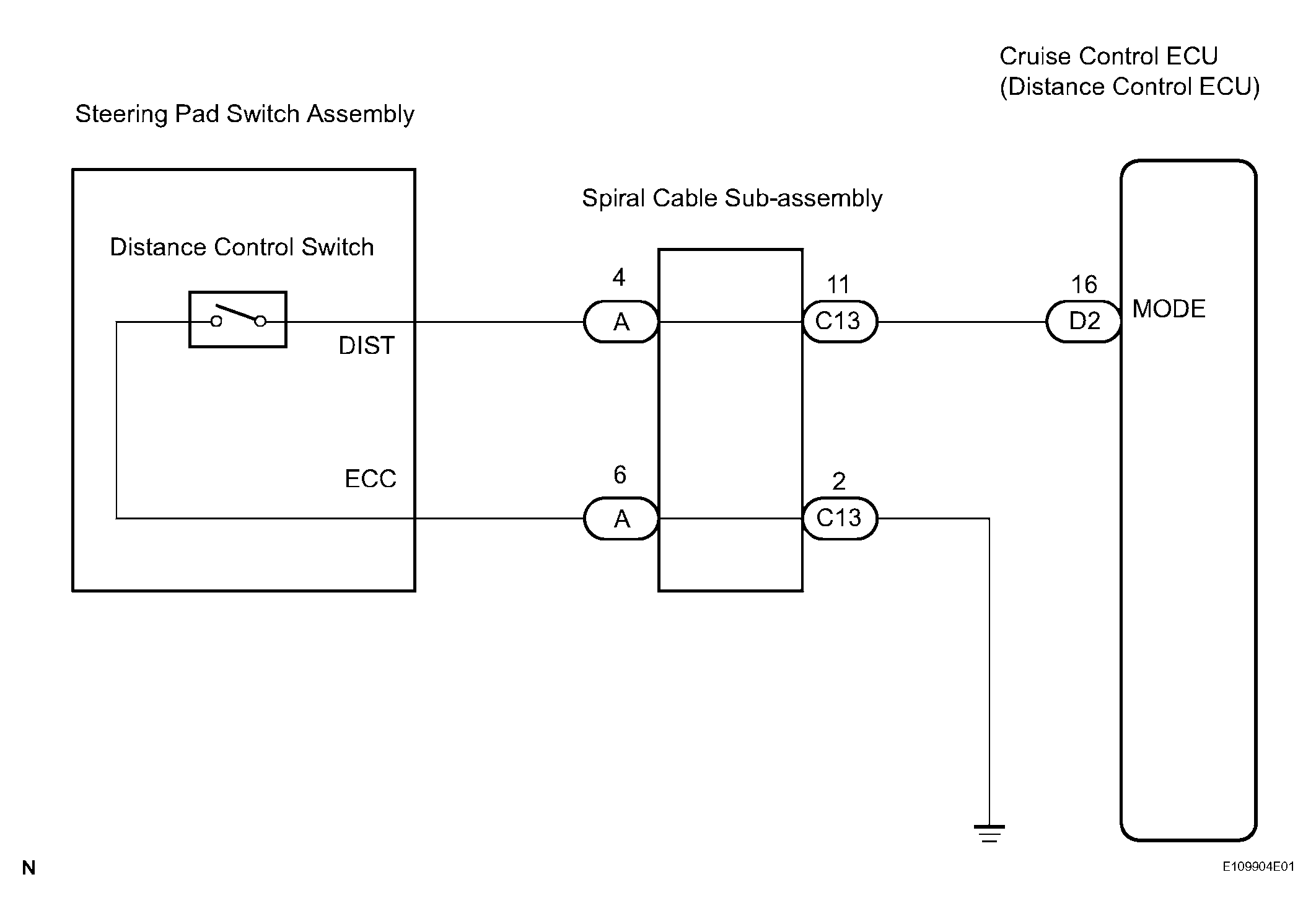

Distance Control Switch Circuit: Wiring Diagram

1. Remove the steering pad switch assembly.

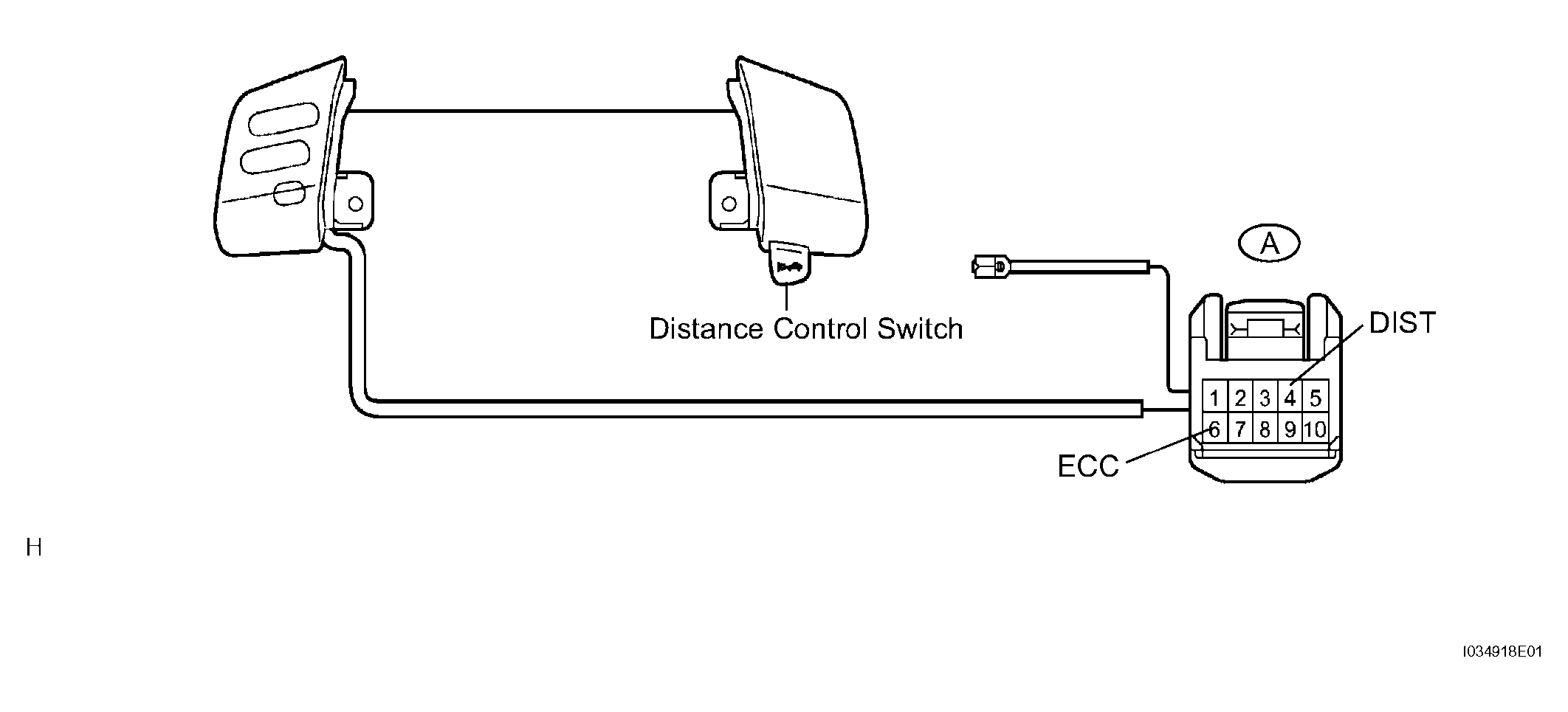

   Fig 2: Inspecting Steering Pad Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance between terminal 4 (DIST) and (ECC) of steering pad switch assembly connector when distance control switch is operated.

   Standard resistance

   SWITCH POSITION - RESISTANCE TABLE



   Switch position	Specified value
   Distance control switch is ON	Below 1 Ω
   Distance control switch is OFF	10 kΩ or higher

   HINT:

   When a malfunction is detected in the distance control switch, replace the steering pad switch assembly.

NG : REPLACE STEERING PAD SWITCH ASSEMBLY

OK : Go to next step

1. Disconnect the spiral cable connector.
2. Measure the resistance according to the value(s) in the table below.

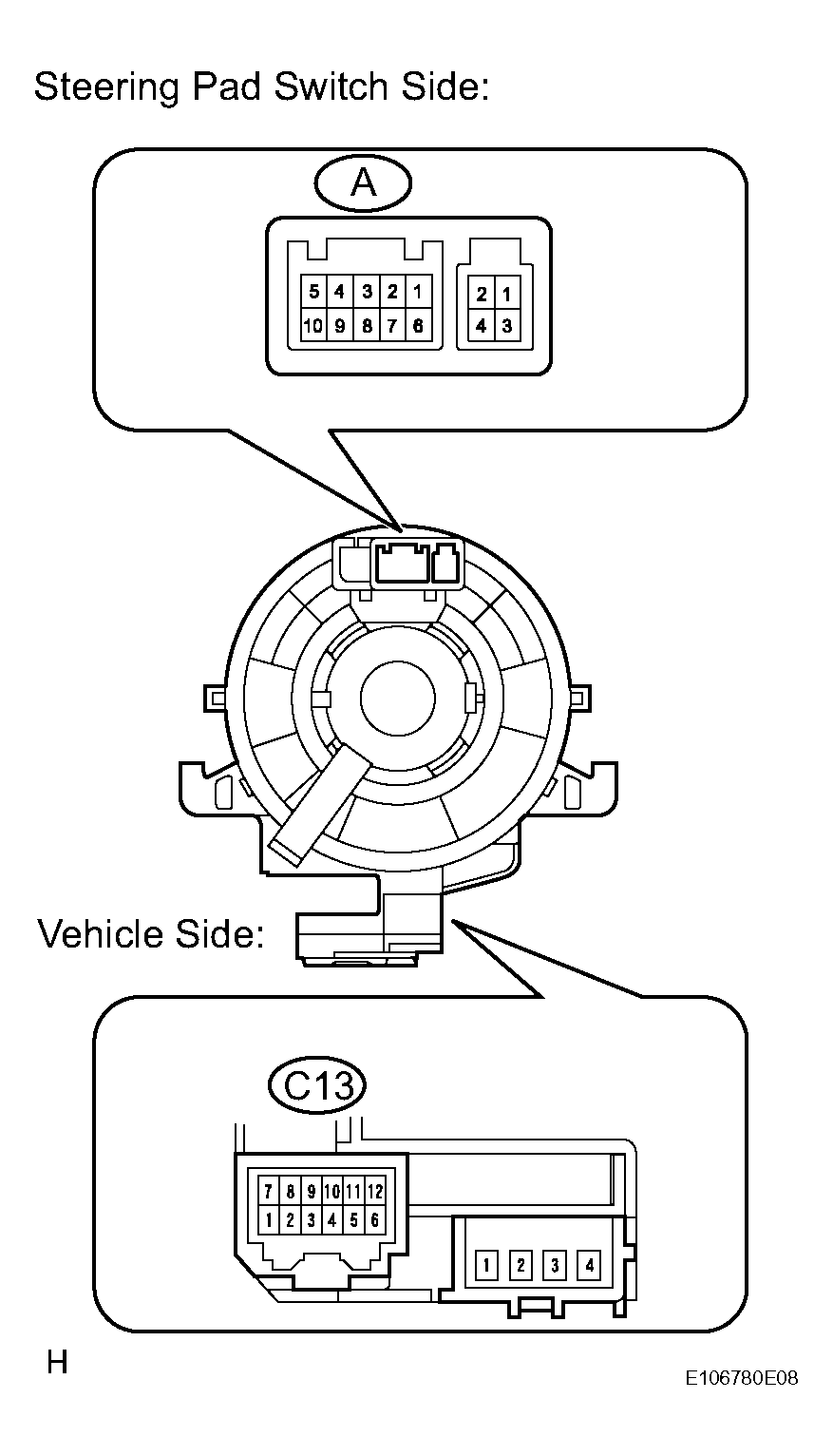

Fig 3: Inspecting Spiral Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

NG : REPLACE SPIRAL CABLE

OK : Go to next step

1. Disconnect the distance control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

Standard resistance

Fig 4: Disconnecting Distance Control ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : Go to next step

1. Measure the resistance according to the value(s) in the table below.

Standard resistance

Fig 5: Identifying Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : Go to next step

1. Remove the distance control ECU (cruise control ECU) with the connector.
2. Turn the ignition switch on.
3. Measure the voltage according to the value(s) in the table below.

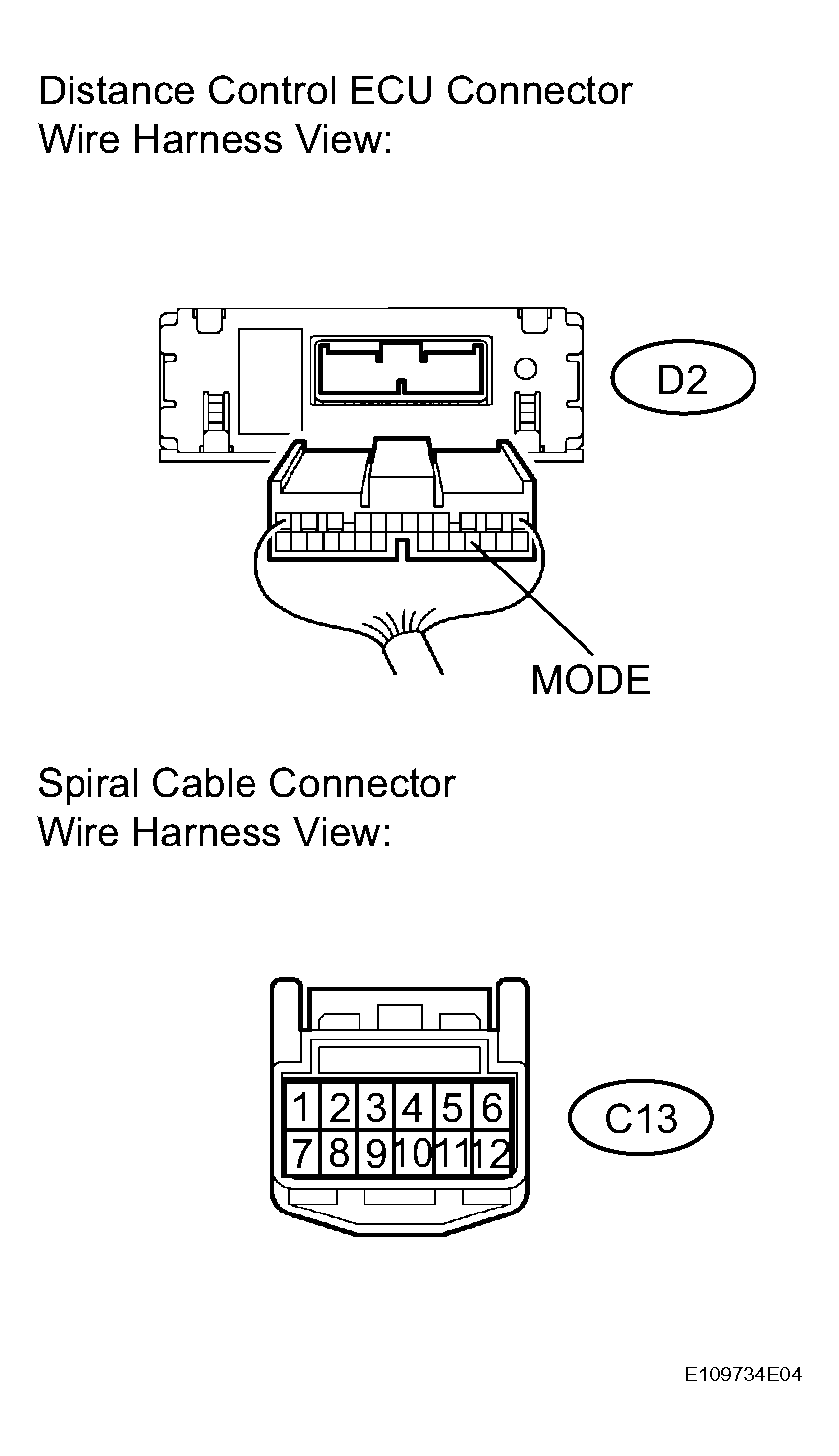

Fig 6: Identifying Terminal D2 Of Distance Control ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

NG : REPLACE DISTANCE CONTROL ECU

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
