Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

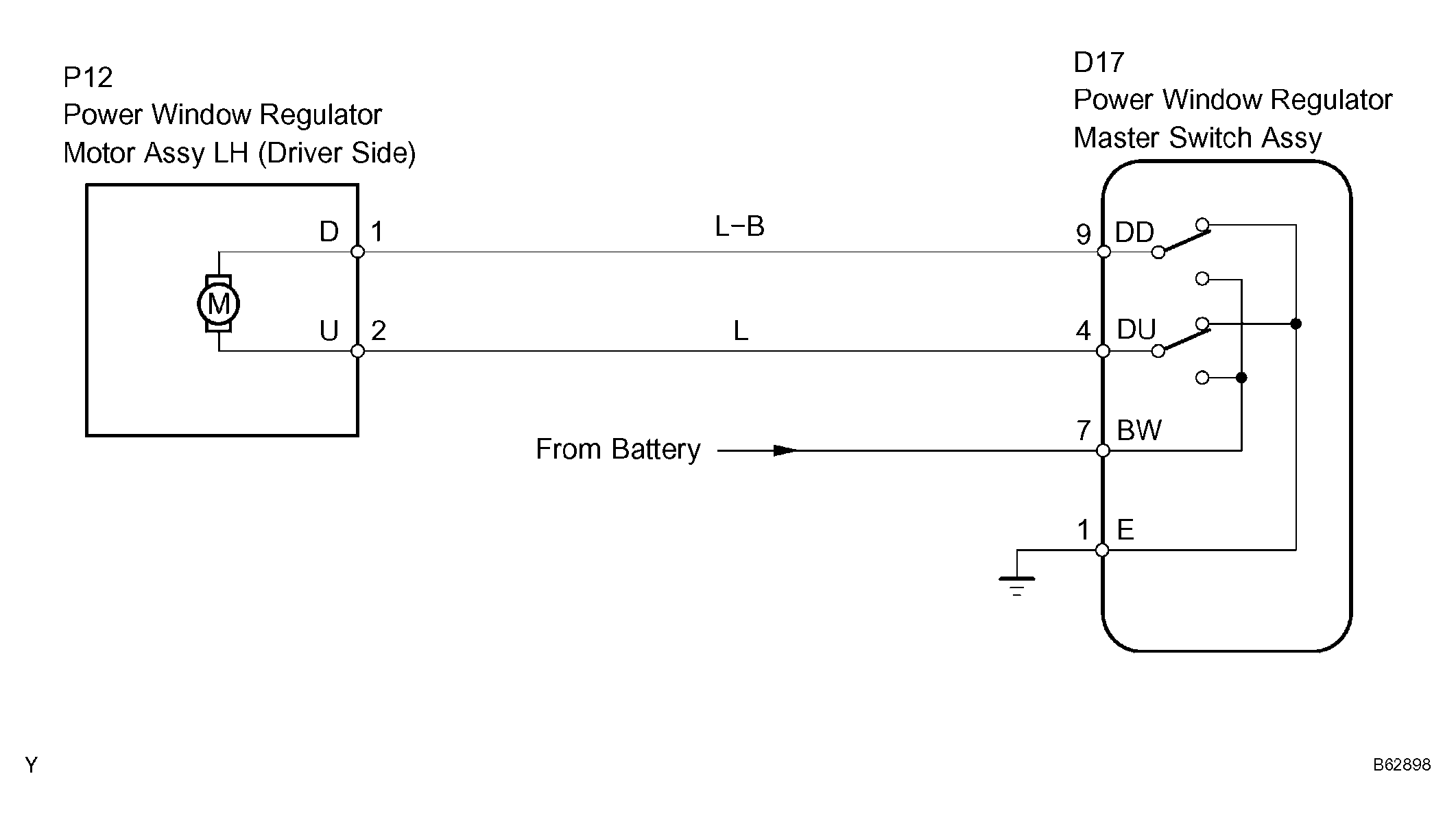

Fig 1: Manual Up/Down Function Does Not Operate On Driver Side - Wiring Diagram
G04336484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
