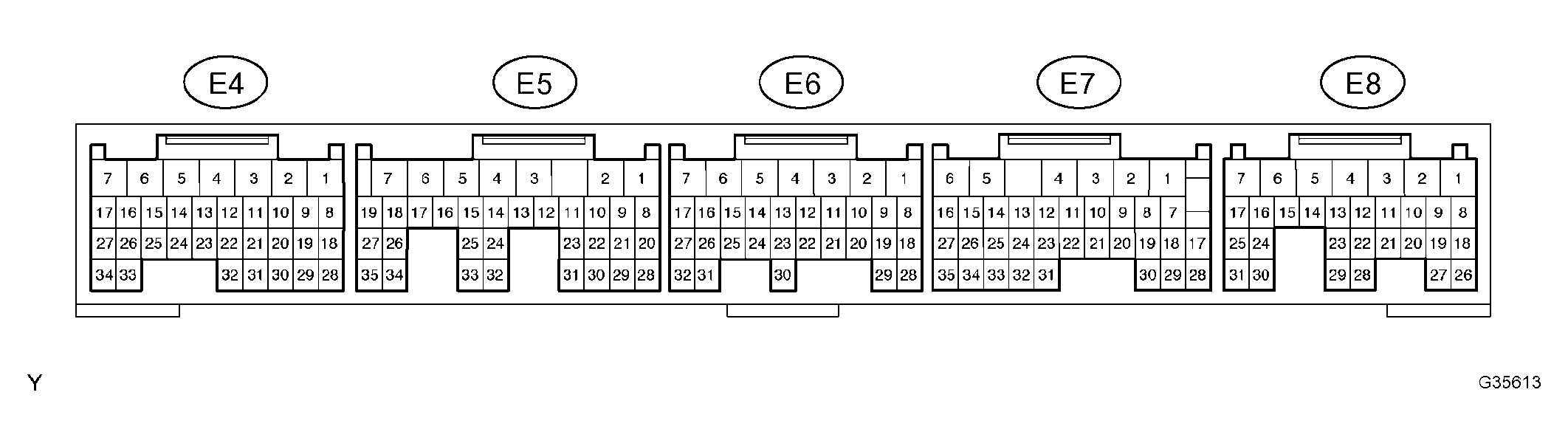

Terminals Of ECM
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
2UZ-FE:
CONNECTOR TERMINAL VOLTAGE SPECIFICATION
| Symbols (Terminals No.) | Wiring Color | Condition | Specified Condition |
|---|---|---|---|
| TC <==> E1 (E8-23 <==> E6-1) | P-L <==> W-B | Ignition switch ON | 10 to 14 V |
| Ignition switch ON Connect terminals TC and CG of DLC3 |
Below 2 V | ||
| ST1- <==> E1 (E8-16 <==> E6-1) | R-L - W-B | Ignition switch ON Depress brake pedal |
Below 1 V |
| Ignition switch ON Release brake pedal |
10 to 14 V | ||
| PI <==> E1 (E7-18 <==> E6-1) | LG <==> W-B | Ignition switch ON Cruise control main switch ON |
0 to 3 V |
| Ignition switch ON Cruise control main switch OFF |
9 to 14 V | ||
| STP <==> E1 (E8-15 <==> E6-1) | G-Y <==> W-B | Ignition switch ON Depress brake pedal |
10 to 14 V |
| Ignition switch ON Release brake pedal |
Below 1 V | ||
| CCS <==> E1 (E7-2 <==> E6-1) | L-B <==> W-B | Ignition switch ON | 9 to 14 V |
| Ignition switch ON CANCEL switch hold ON |
6 to 10.1 V | ||
| Ignition switch ON -/SET switch hold ON |
4 to 7.1 V | ||
| Ignition switch ON +/RES switch hold ON |
2.1 to 4 V | ||
| Ignition switch ON MAIN switch hold ON |
Below 1 V |
1GR-FE:
CONNECTOR TERMINAL VOLTAGE SPECIFICATION
| Symbols (Terminals No.) | Wiring Color | Condition | Specified Condition |
|---|---|---|---|
| TC <==> E1 (E8-23 <==> E6-1) |
P-L <==> W-B | Ignition switch ON | 10 to 14 V |
| Ignition switch ON Connect terminals TC and CG of DLC3 |
Below 2 V | ||
| ST1- <==> E1 (E8-16 <==> E6-1) |
R-L <==> W-B | Ignition switch ON Depress brake pedal |
Below 1 V |
| Ignition switch ON Release brake pedal |
10 to 14 V | ||
| PI <==> E1 (E7-18 <==> E6-1) |
LG <==> W-B | Ignition switch ON Cruise control main switch ON |
0 to 3 V |
| Ignition switch ON Cruise control main switch OFF |
9 to 14 V | ||
| STP <==> E1 (E8-15 <==> E6-1) |
G-Y <==> W-B | Ignition switch ON Depress brake pedal |
10 to 14 V |
| Ignition switch ON Release brake pedal |
Below 1 V | ||
| CCS <==> E1 (E7-2 <==> E6-1) |
L-B <==> W-B | Ignition switch ON | 9 to 14 V |
| Ignition switch ON CANCEL switch hold ON |
6 to 10.1 V | ||
| Ignition switch ON -/SET switch hold ON |
4 to 7.1 V | ||
| Ignition switch ON +/RES switch hold ON |
2.1 to 4 V | ||
| Ignition switch ON MAIN switch hold ON |
Below 1 V |
