Instrument Panel/Meter: Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

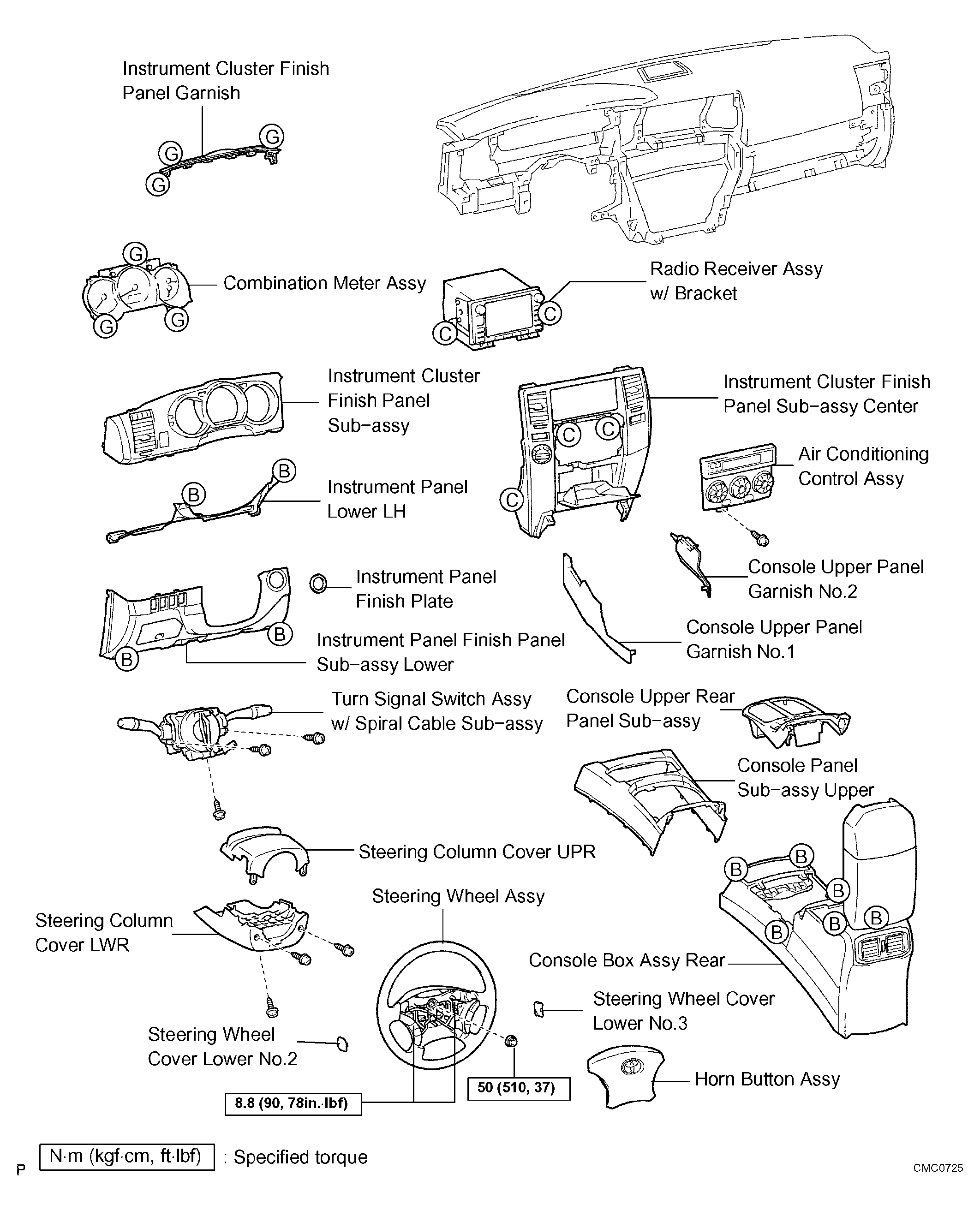

Fig 1: Instrument Panel/Meter Replacement Components With Torque Specifications (1 Of 4)
G04332151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

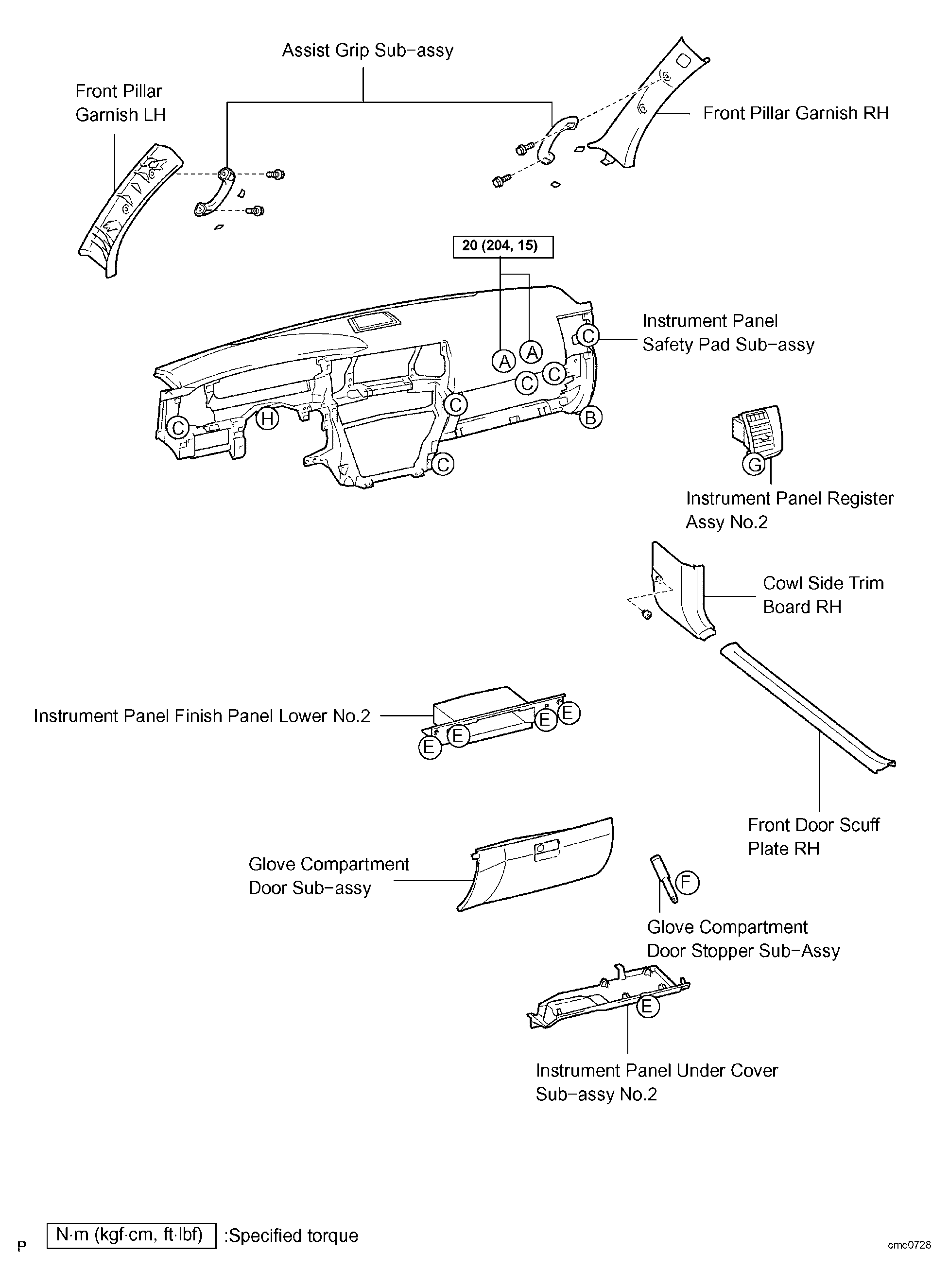

Fig 2: Instrument Panel/Meter Replacement Components With Torque Specifications (2 Of 4)
G04332152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Instrument Panel/Meter Components (3 Of 4)
G04332153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

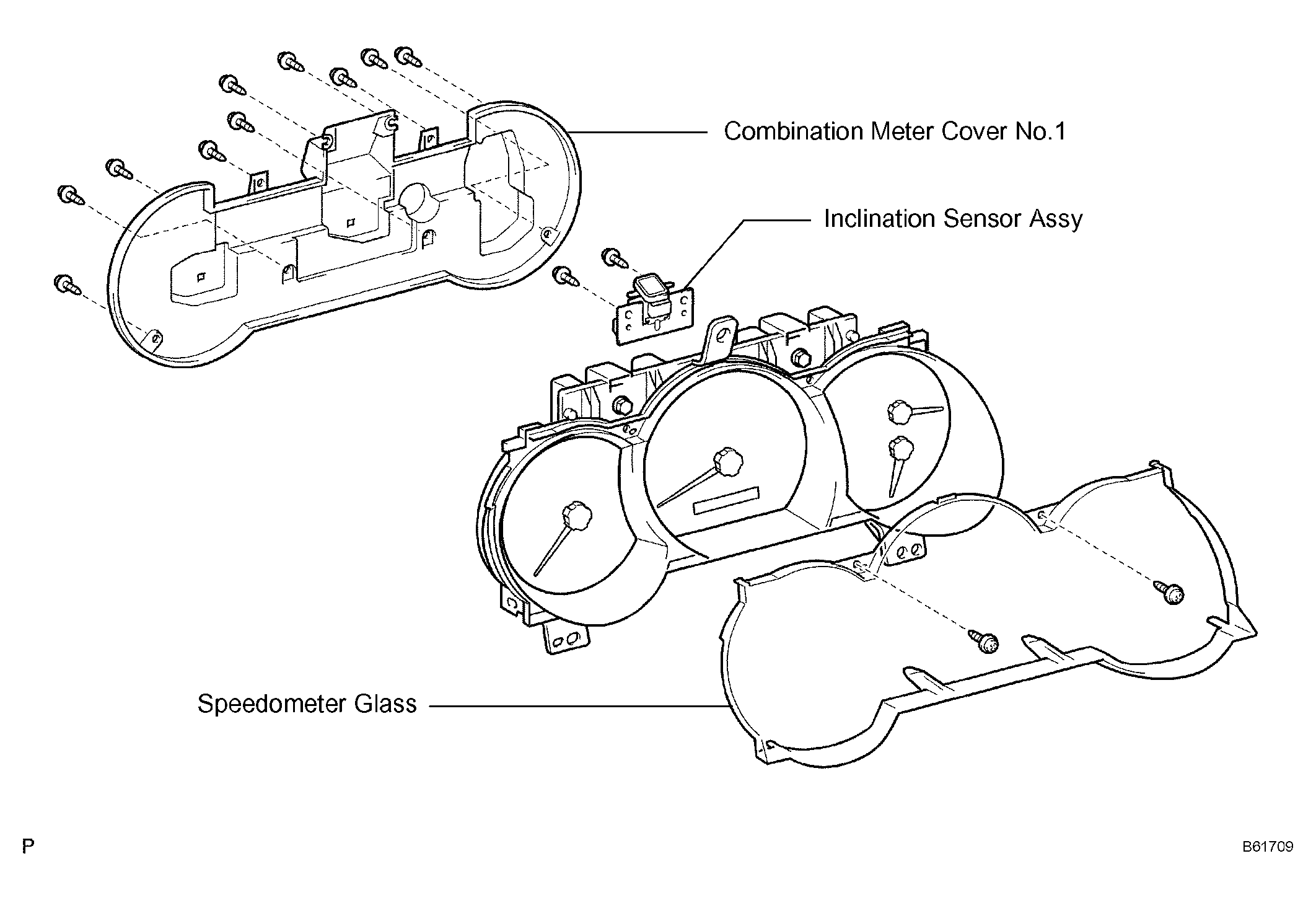

Fig 4: Identifying Instrument Panel/Meter Components (4 Of 4)
G04332154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
