Rear Seat Inner Belt Assembly: Components

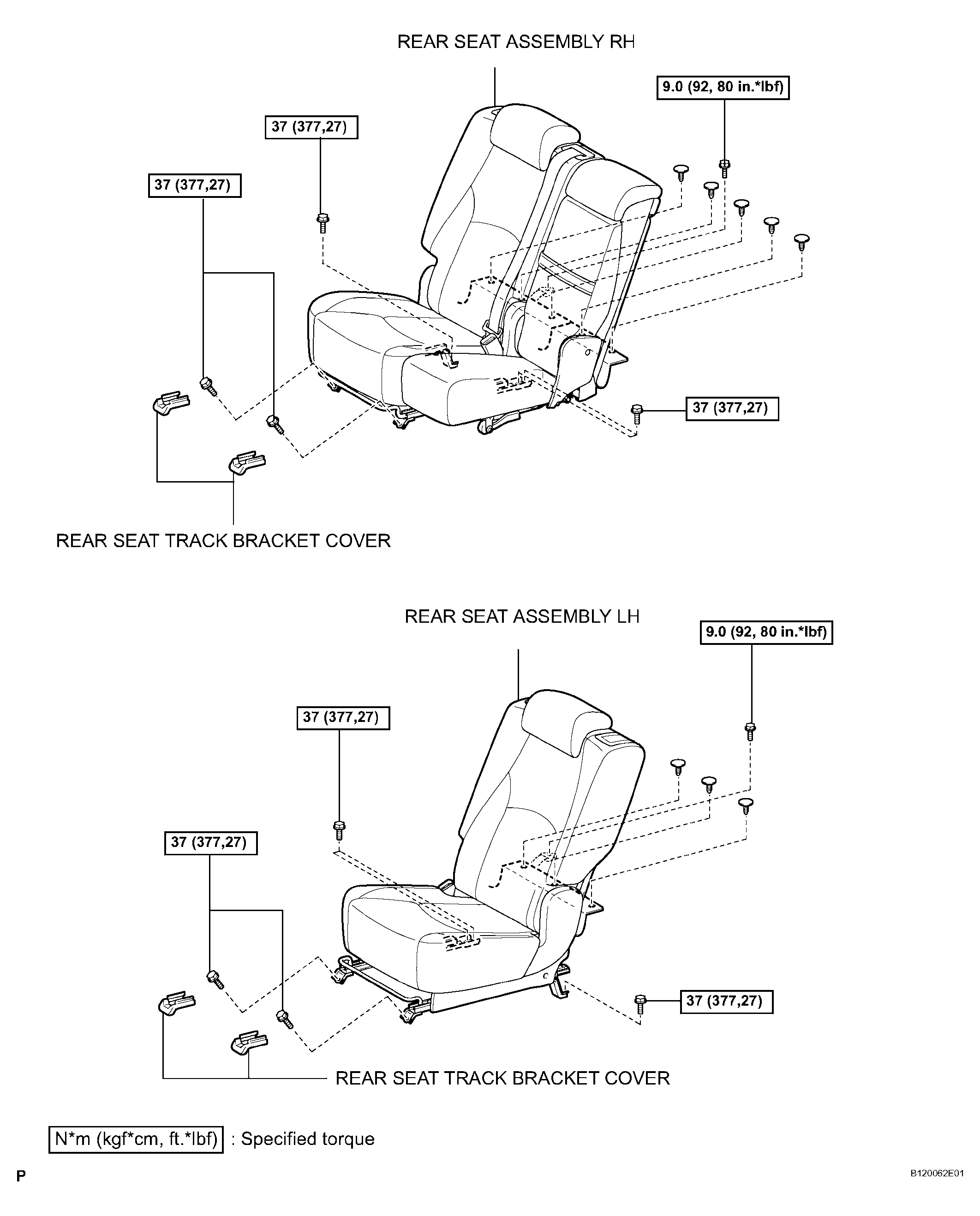

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 Of 3)
G04091857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

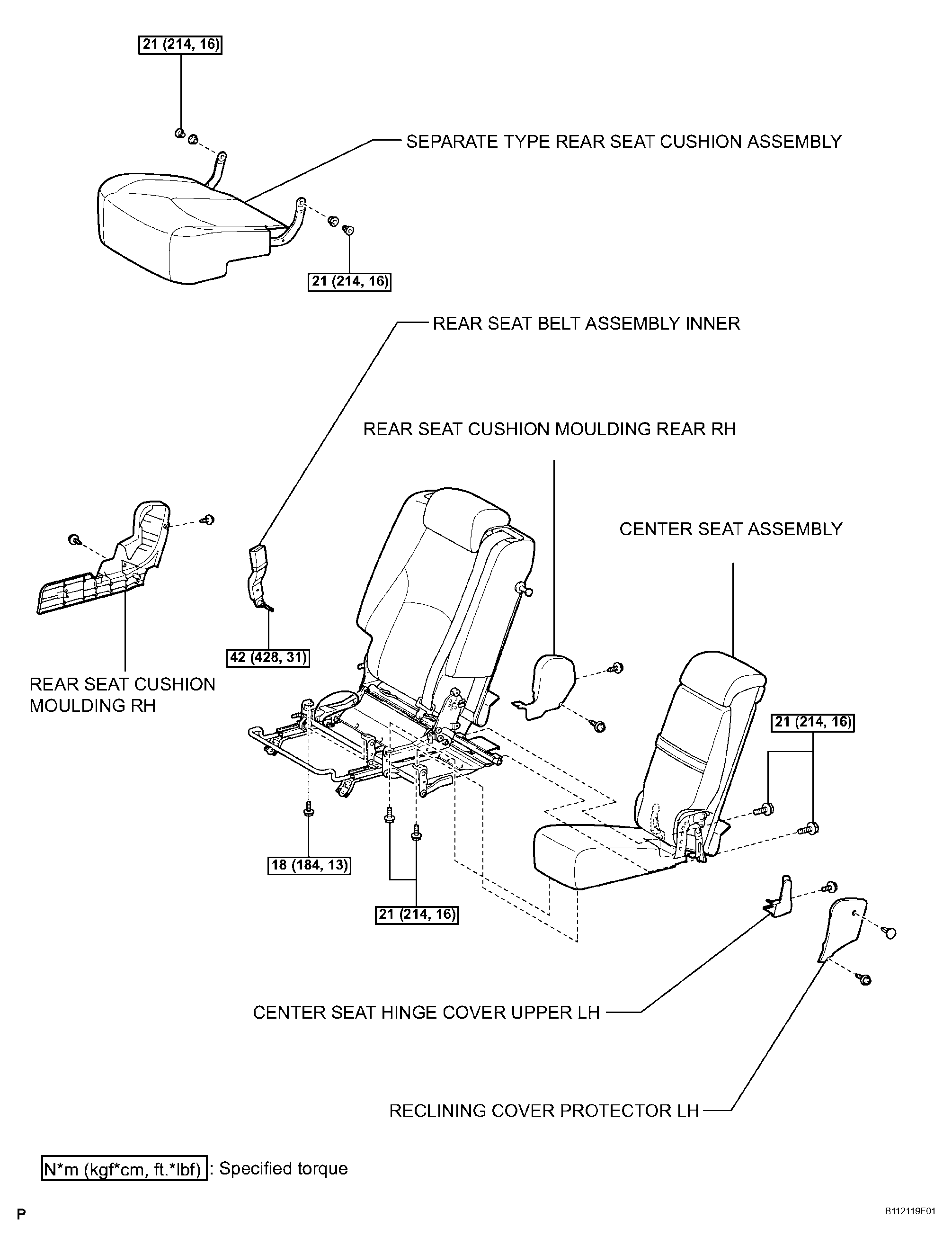

Fig 2: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 3)
G04091858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

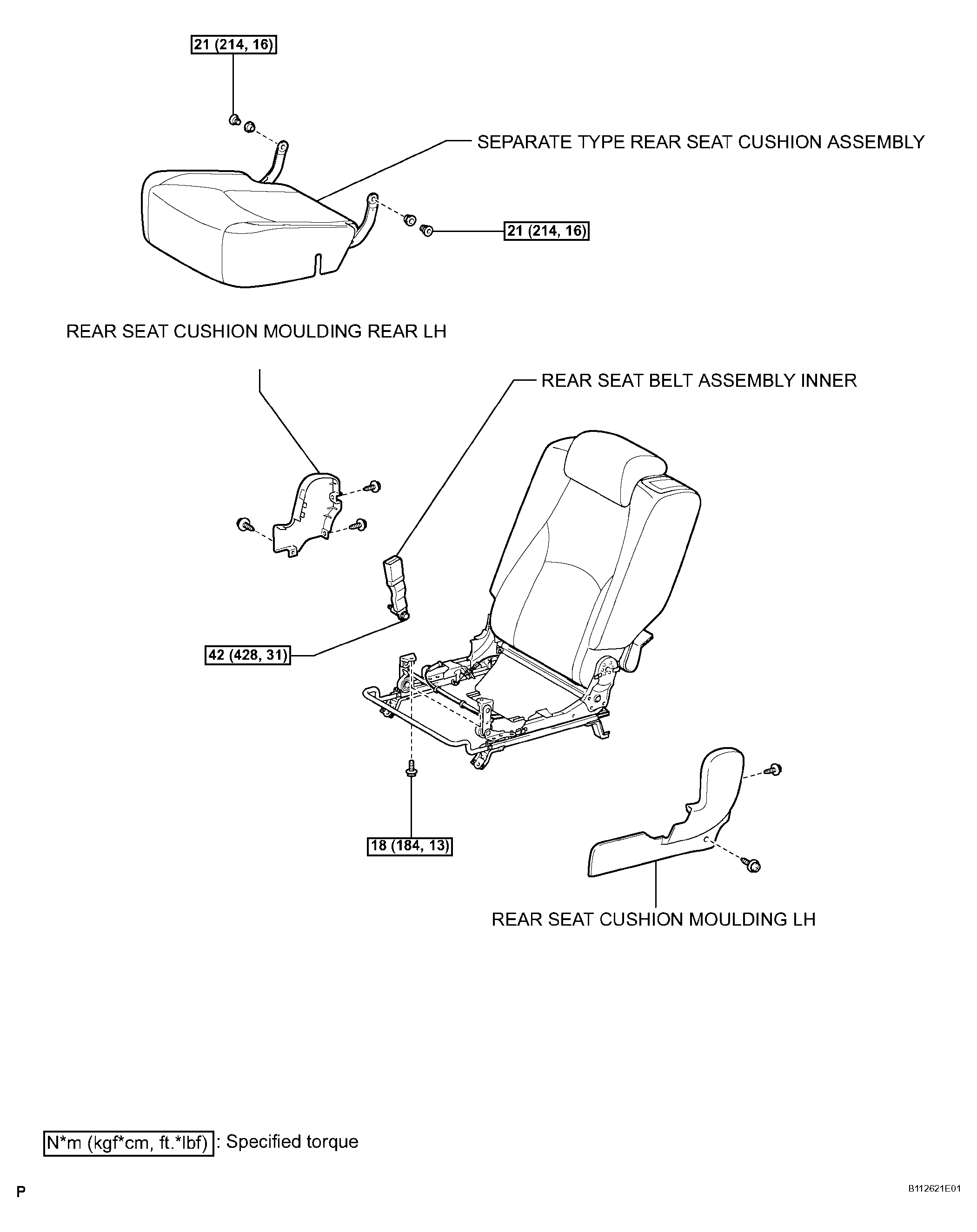

Fig 3: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (3 Of 3)
G04091859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
