Automatic Transaxle Assembly: Components

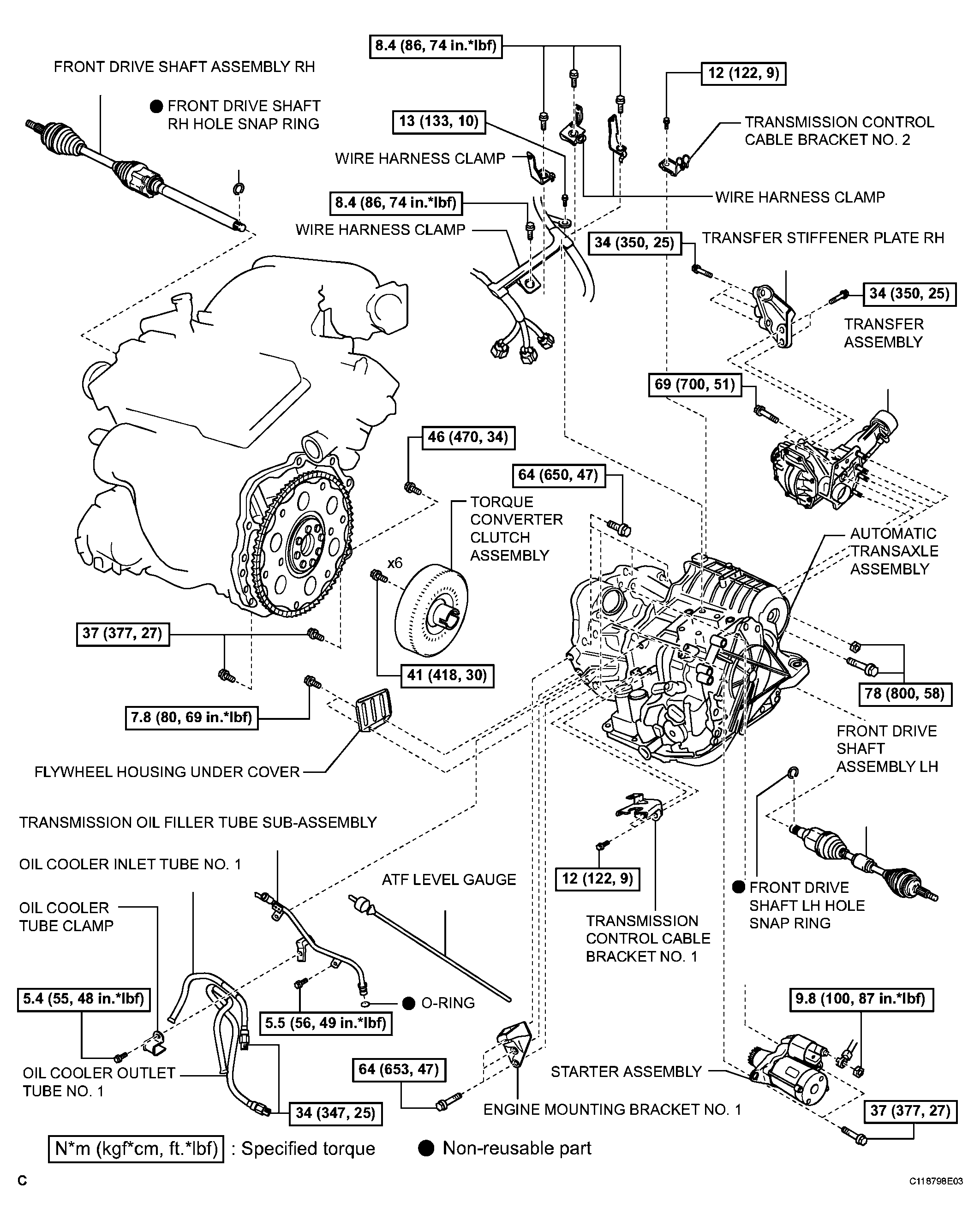

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications
G04089208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
