System Diagram

The configuration of the electronic control system in the U151F automatic transaxles is as shown in the following chart.

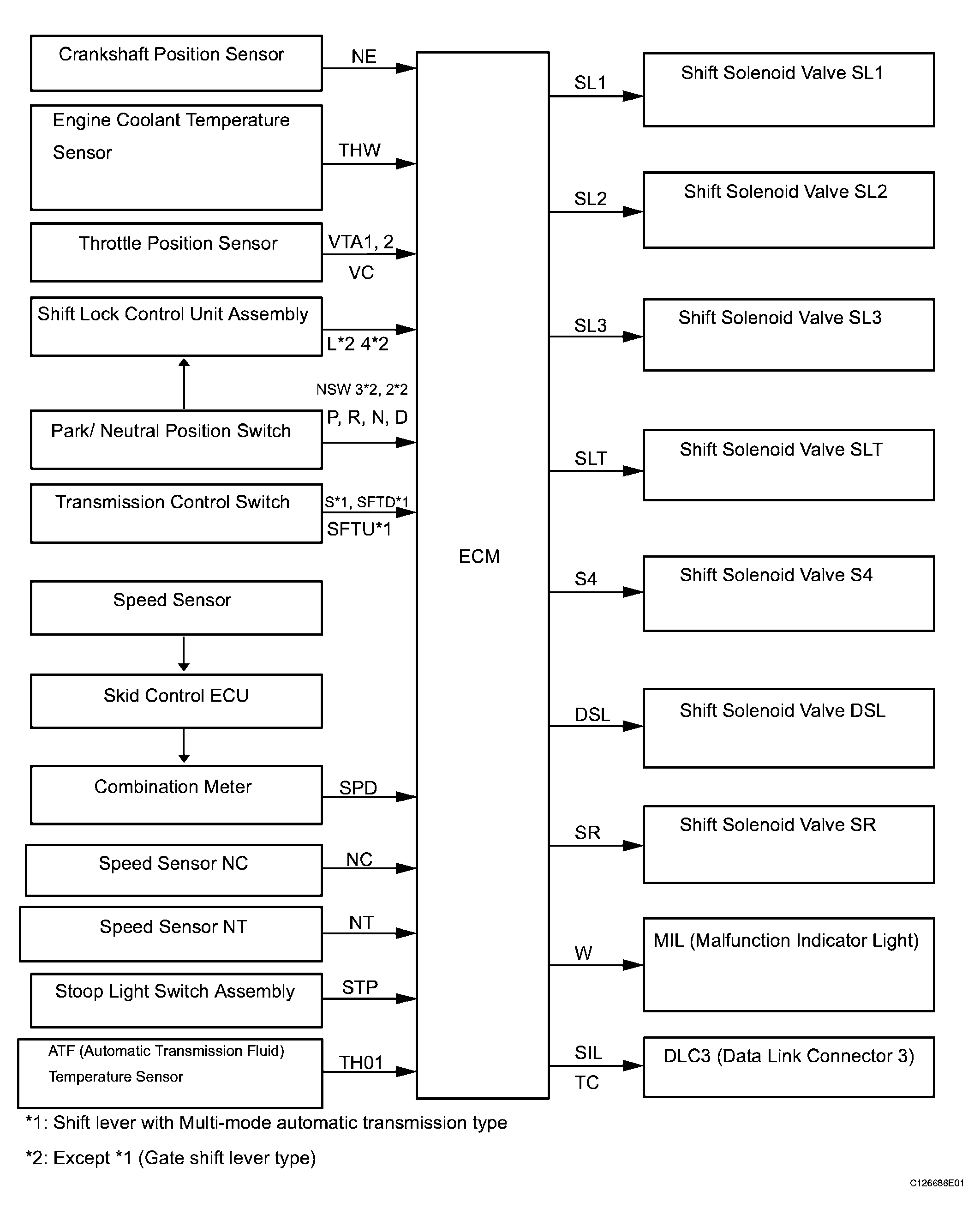

Fig 1: Automatic Transaxle System Diagram
G04089021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
