Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (BATTERY - TRANSMISSION CONTROL SWITCH)
    1. Disconnect the transmission control switch connector of shift lock control unit assembly.
    2. Measure the voltage according to the value(s) in the table below.

    Voltage

    BATTERY - TRANSMISSION CONTROL SWITCH

    Switch Condition Tester Connection Specified Condition
    IG switch ON 3 - Body ground 10 to 14 V
    IG switch OFF Below 1 V
    Fig 1: Checking Harness And Connector (Battery - Transmission Control Switch)
    G04089106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (TRANSMISSION A @ CONTROL SWITCH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

    Resistance

    TRANSMISSION A @ CONTROL SWITCH - BODY GROUND

    Tester Connection Specified Condition
    10 - Body ground Below 1 Ω
    Fig 2: Checking Harness And Connector (Transmission A @ Control Switch - Body Ground)
    G04089107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Measure resistance between each terminal of shift lock control unit assembly when the shift lever is moved to each position.
    Fig 3: Inspecting Transmission Floor Shift Assembly
    G04089108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Resistance (Check for short)

    TRANSMISSION FLOOR SHIFT ASSEMBLY (CHECK FOR SHORT)

    Shift Position Tester Connection Specified Condition
    S, "+" and "-" 3 - 8 Below 1 Ω
    Except S, "+" and "-" 10 kΩ or higher
    Press continuously "+" (Up shift) 4 - 10 Below 1 Ω
    S 10 kΩ or higher
    Press continuously "-" (Down shift) 5 - 10 Below 1 Ω
    S 10 kΩ or higher

    NG: REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
    1. Connect the transmission control switch connector of shift lock control unit assembly.
    2. Turn the ignition switch to the ON position, and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.
      Fig 4: Checking Harness And Connector (Transmission Control Switch - ECM)
      G04089109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Voltage

      TRANSMISSION CONTROL SWITCH - ECM (VOLTAGE)

      Shift Position Tester Connection Specified Condition
      S, "+" and "-" E6 - 23 (S) - Body ground 10 to 14 V
      Except S, "+" and "-" Below 1 V
    3. Turn the ignition switch to the LOCK position.
    4. Disconnect the ECM connector.
    5. Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

    Resistance

    TRANSMISSION CONTROL SWITCH - ECM (RESISTANCE)

    Shift Position Tester Connection Specified Condition
    Press continuously "+" (Up shift) E6 - 22 (SFTU) - Body ground Below 1 Ω
    S 10 kΩ or higher
    Press continuously "-" (Down shift) E6 - 21 (SFTD) - Body ground Below 1 Ω
    S 10 kΩ or higher

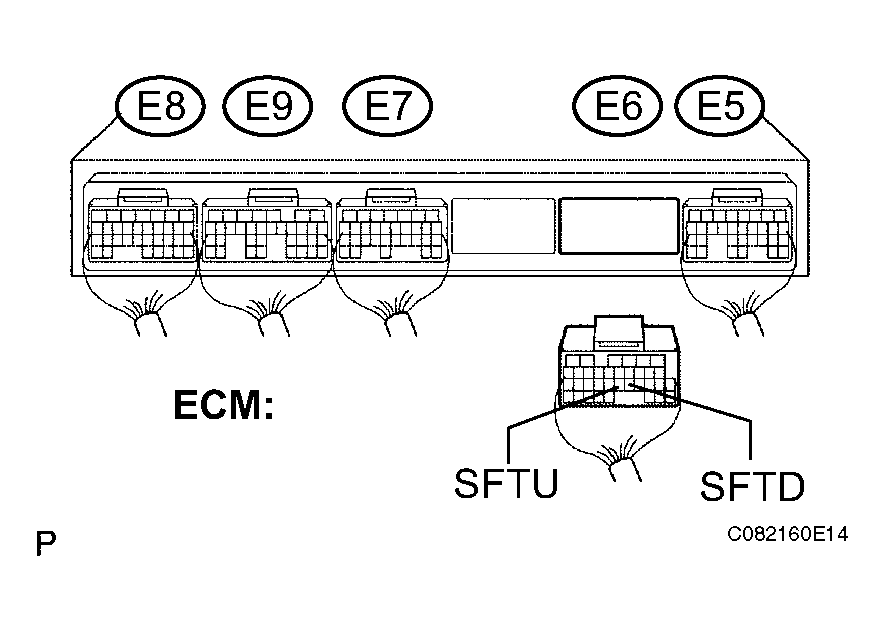

    Fig 5: Checking Harness And Connector (Transmission Control Switch - ECM)
    G04089110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
