Differential Case: Components

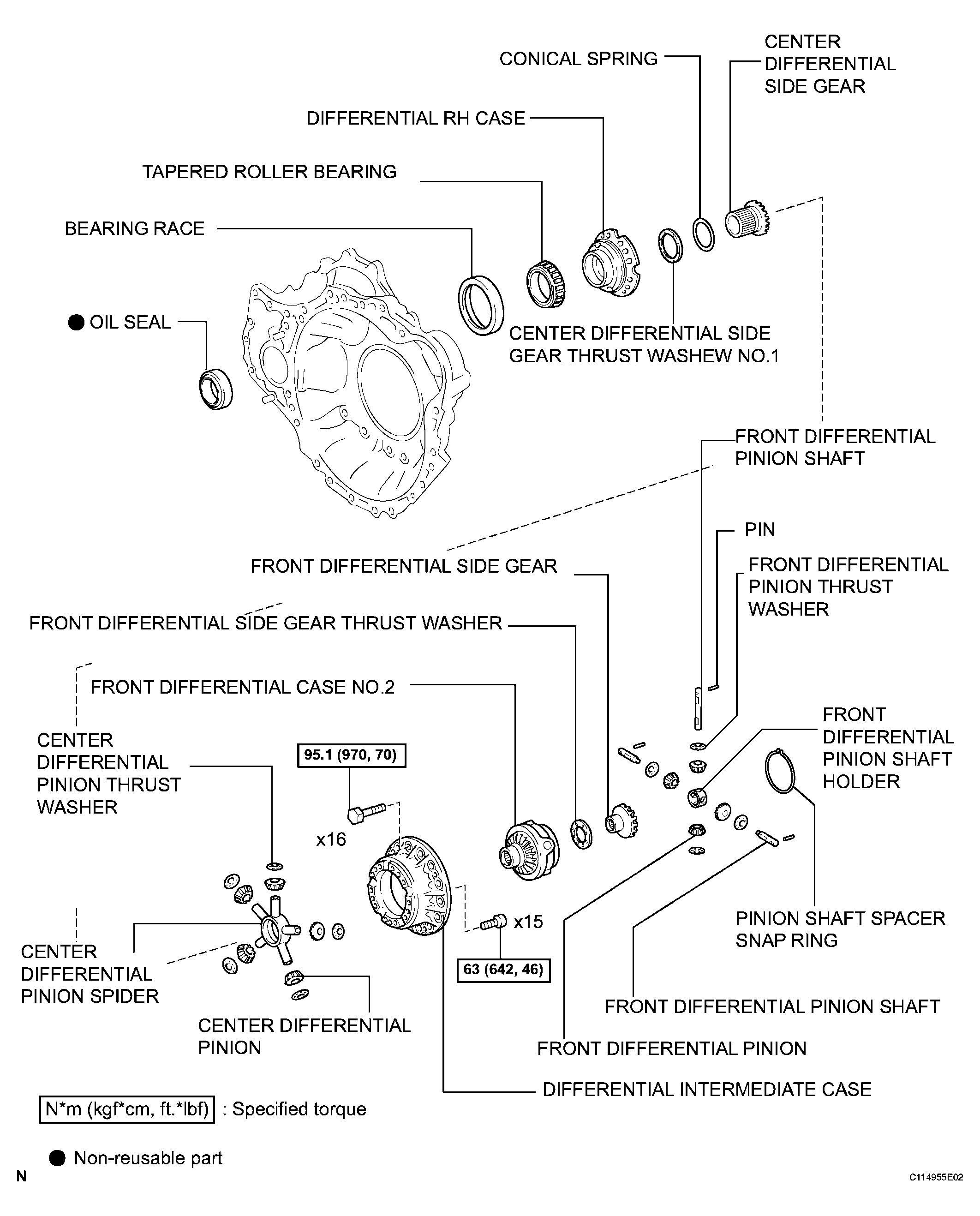

Fig 1: Exploded View Of Differential Case Components With Torque Specifications (1 Of 2)
G04089642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

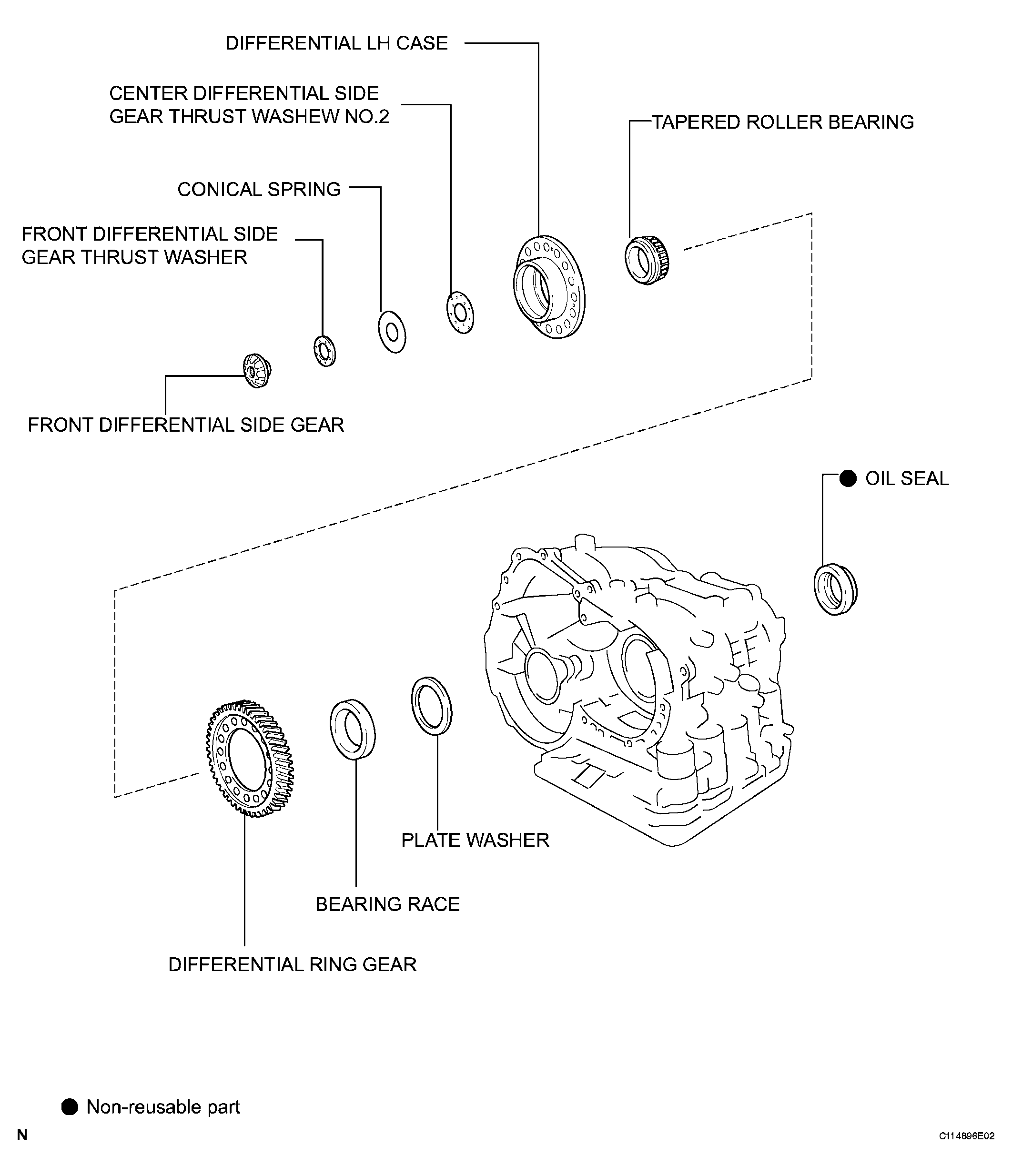

Fig 2: Exploded View Of Differential Case Components (2 Of 2)
G04089643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
