Direct Clutch: Components

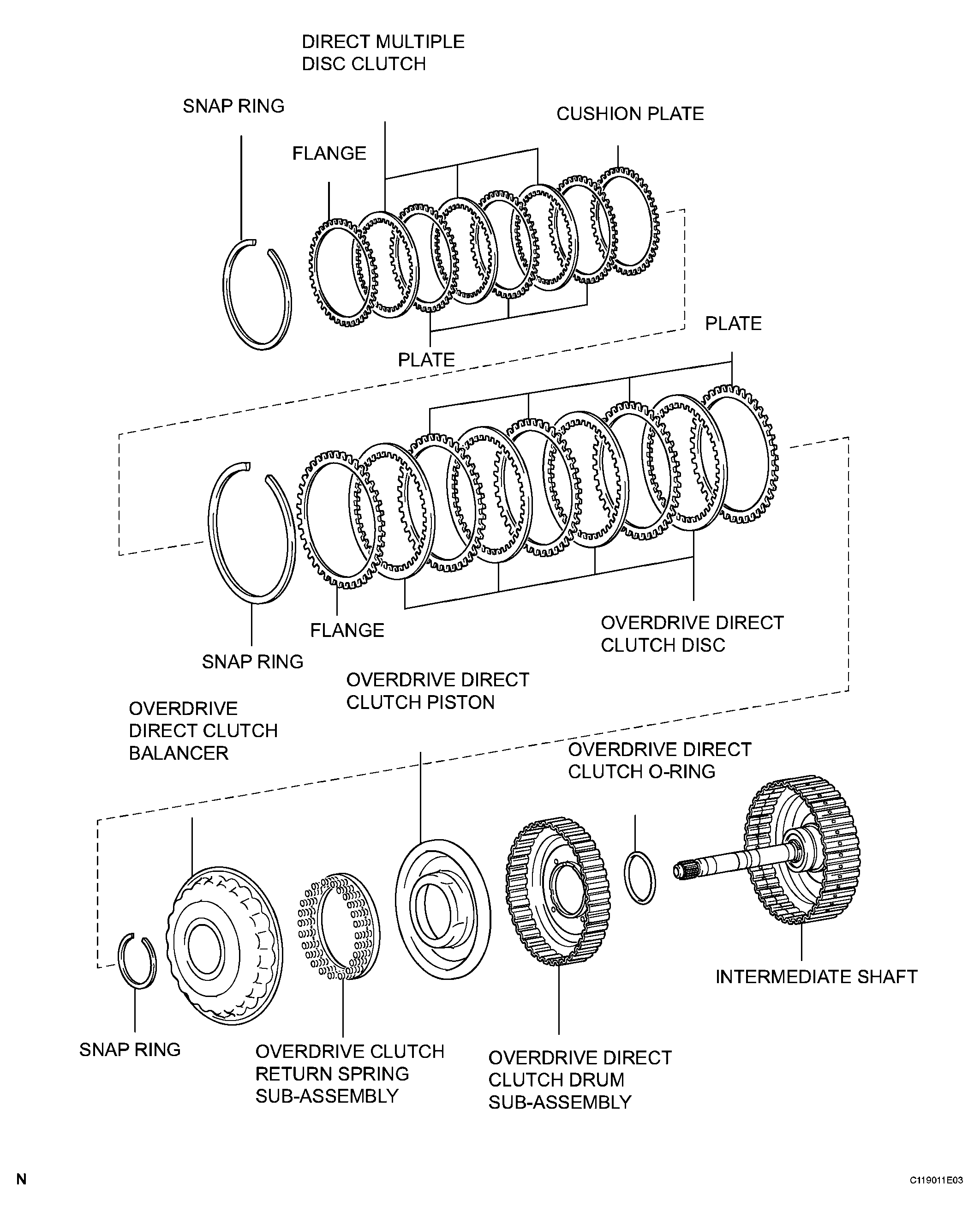

Fig 1: Exploded View Of Direct Clutch Components
G04089570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
