Speed Sensor: Removal

REMOVE BATTERY
REMOVE AIR CLEANER ASSEMBLY
HINT:

(See REMOVAL )
REMOVE AIR CLEANER HOSE NO. 1
HINT:

(See REMOVAL )
REMOVE AIR CLEANER INLET NO. 2
HINT:

(See REMOVAL )
REMOVE AIR CLEANER BRACKET
HINT:

(See REMOVAL )
REMOVE AIR CLEANER INLET NO. 1
HINT:

(See REMOVAL )
REMOVE SPEED SENSOR (NT SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

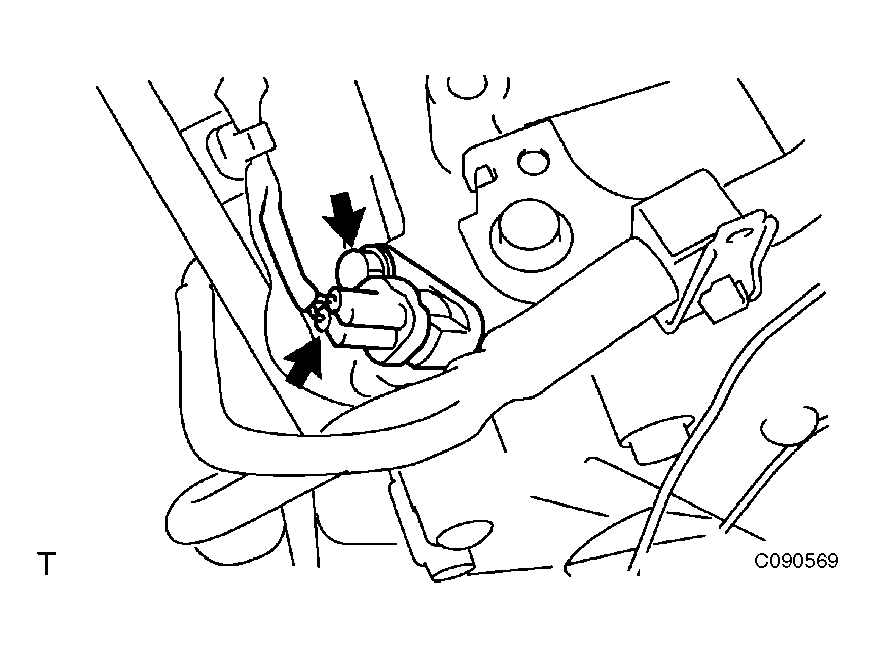

Fig 1: Identifying Speed Sensor (NT Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR (NC SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

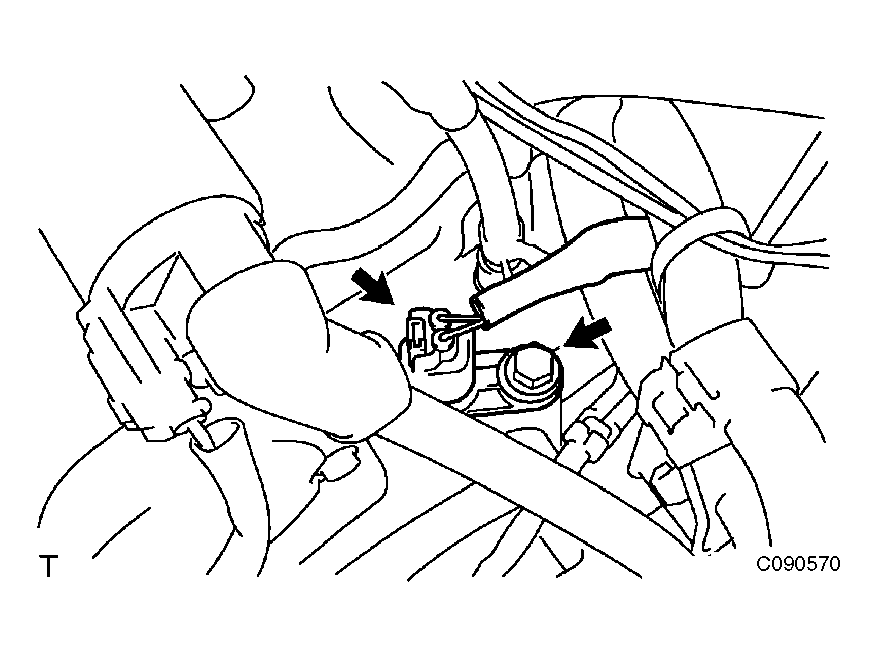

Fig 2: Identifying Speed Sensor (NC Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
