Fuse Block: Locations
Engine Room R/B 1:

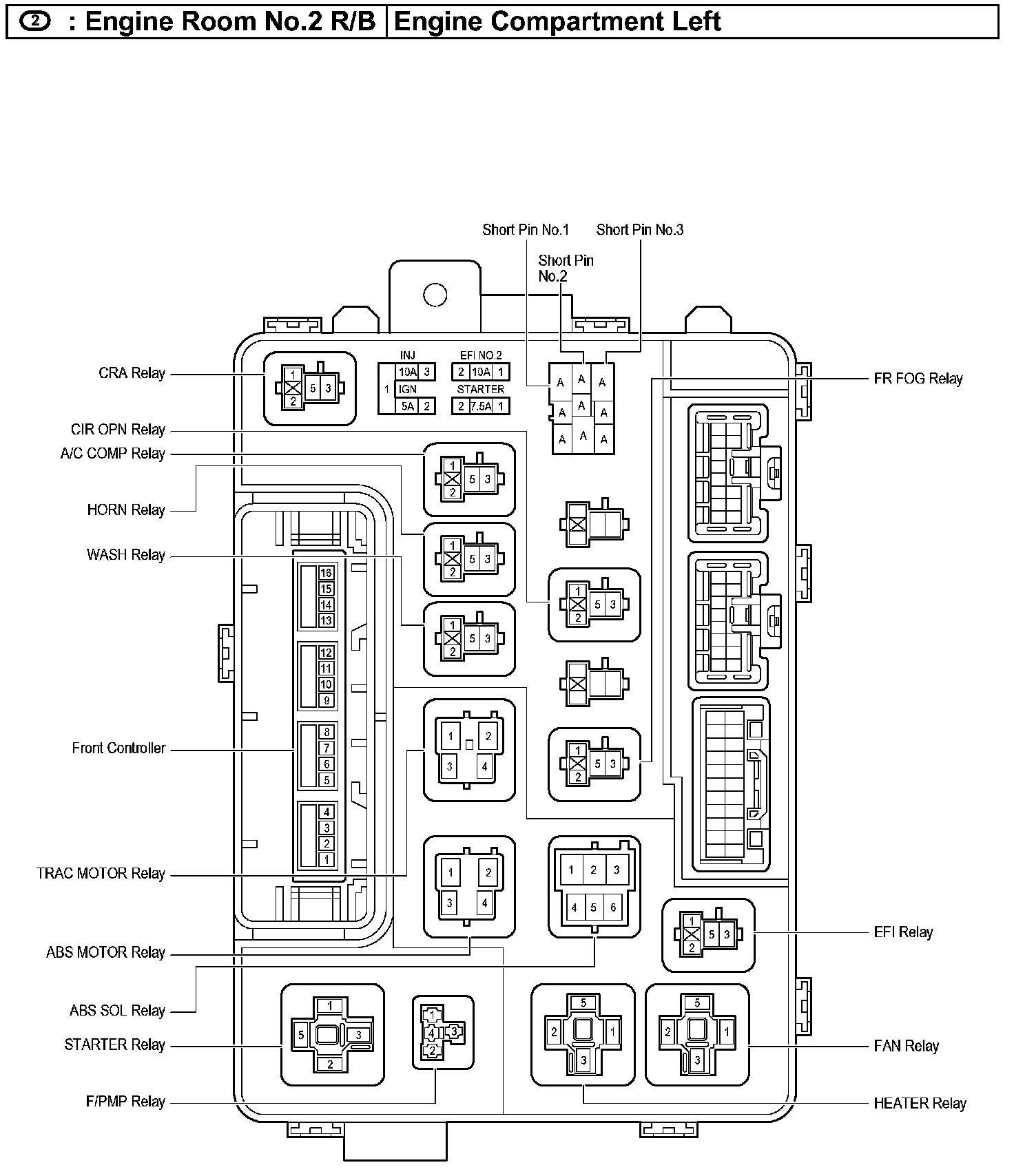

Engine Room R/B 2:
Driver Side J/B Left Kick Panel:
Driver Side J/B Left Kick Panel:
Passenger Side J/B Right Kick Panel:
Passenger Side J/B Right Kick Panel:
Luggage Room J/B Left:

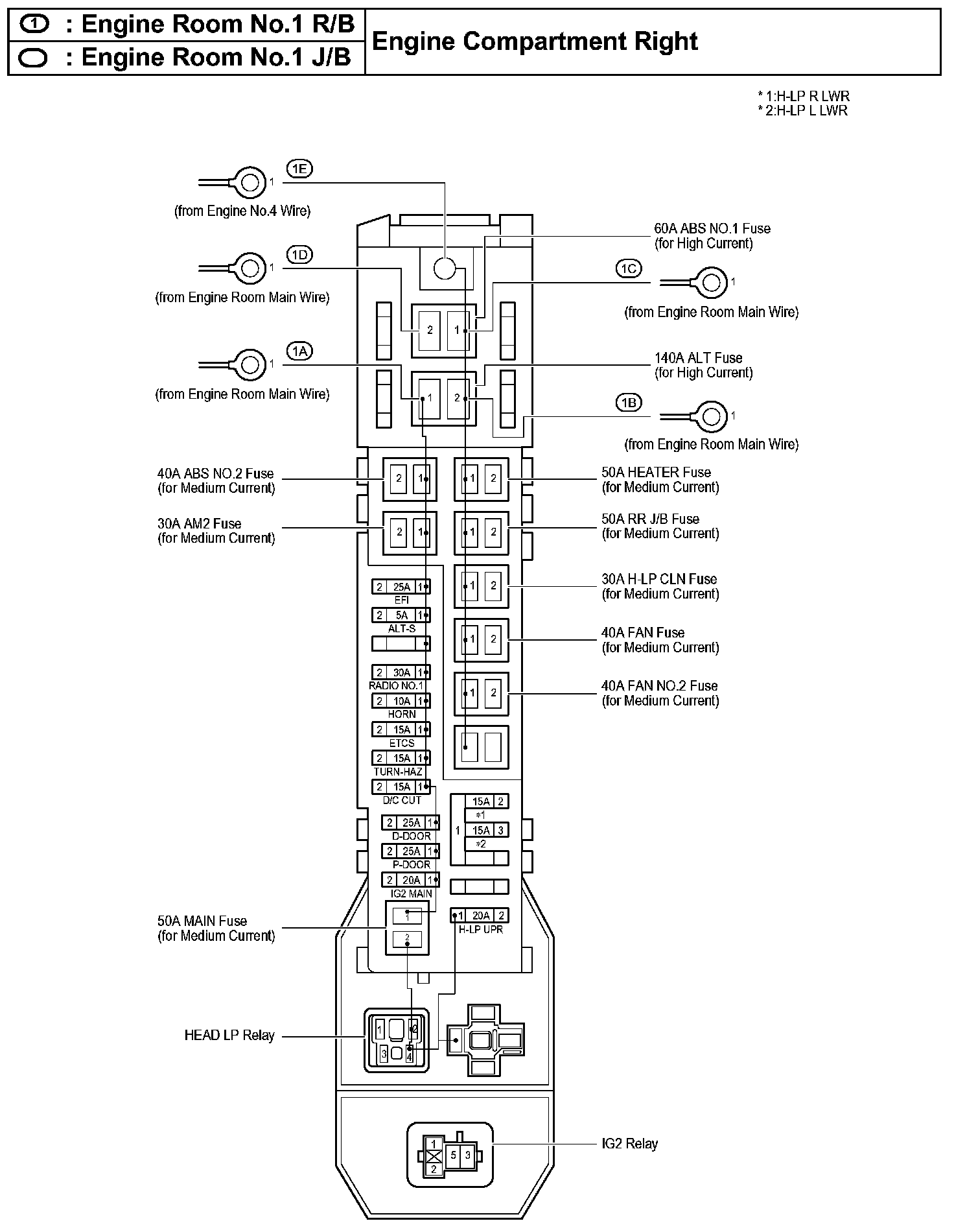

Engine Room No.1 R/B, Engine Room No.1 J/B - Engine Compartment Right:

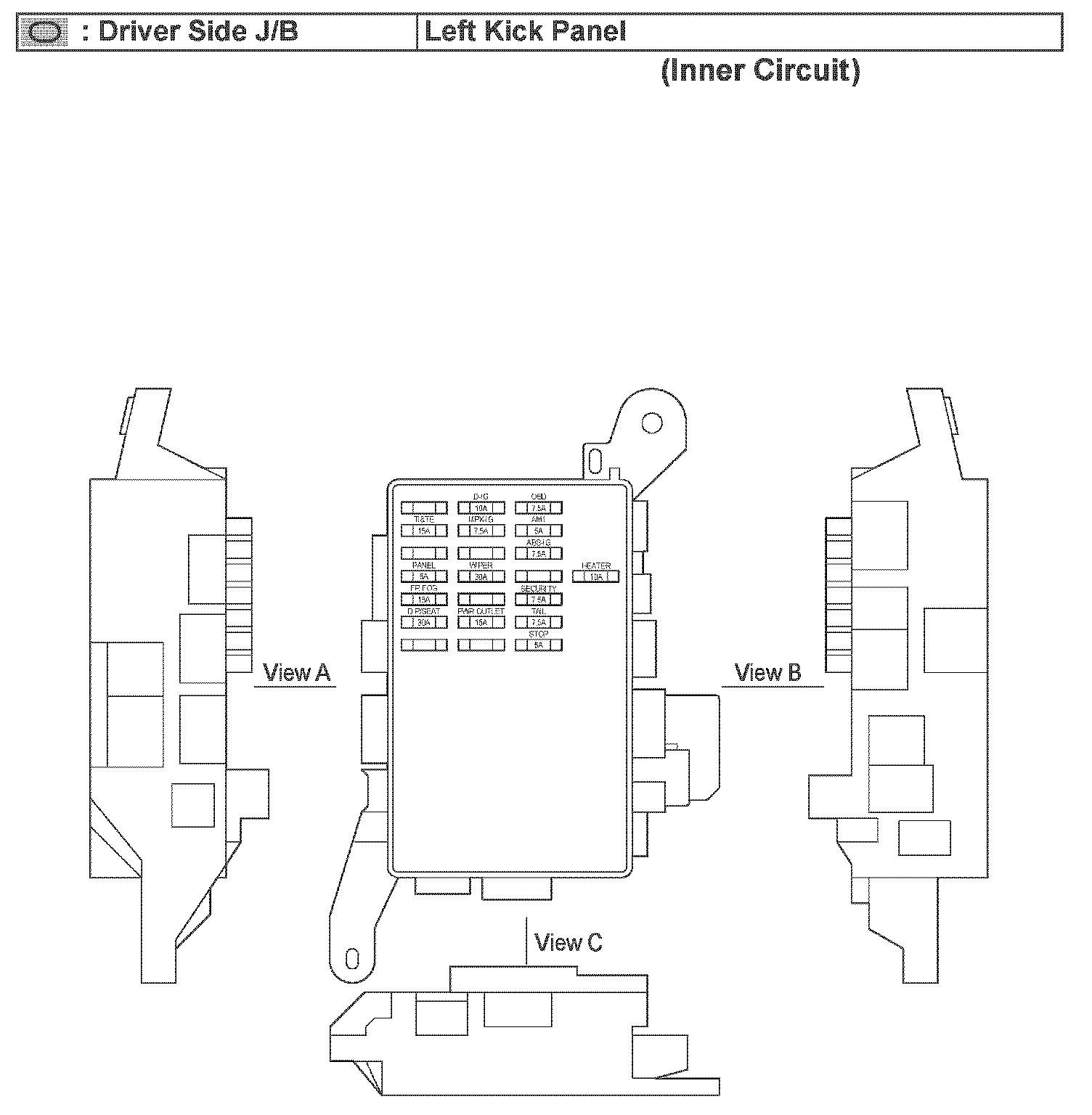

Driver Side J/B - Left Kick Panel:

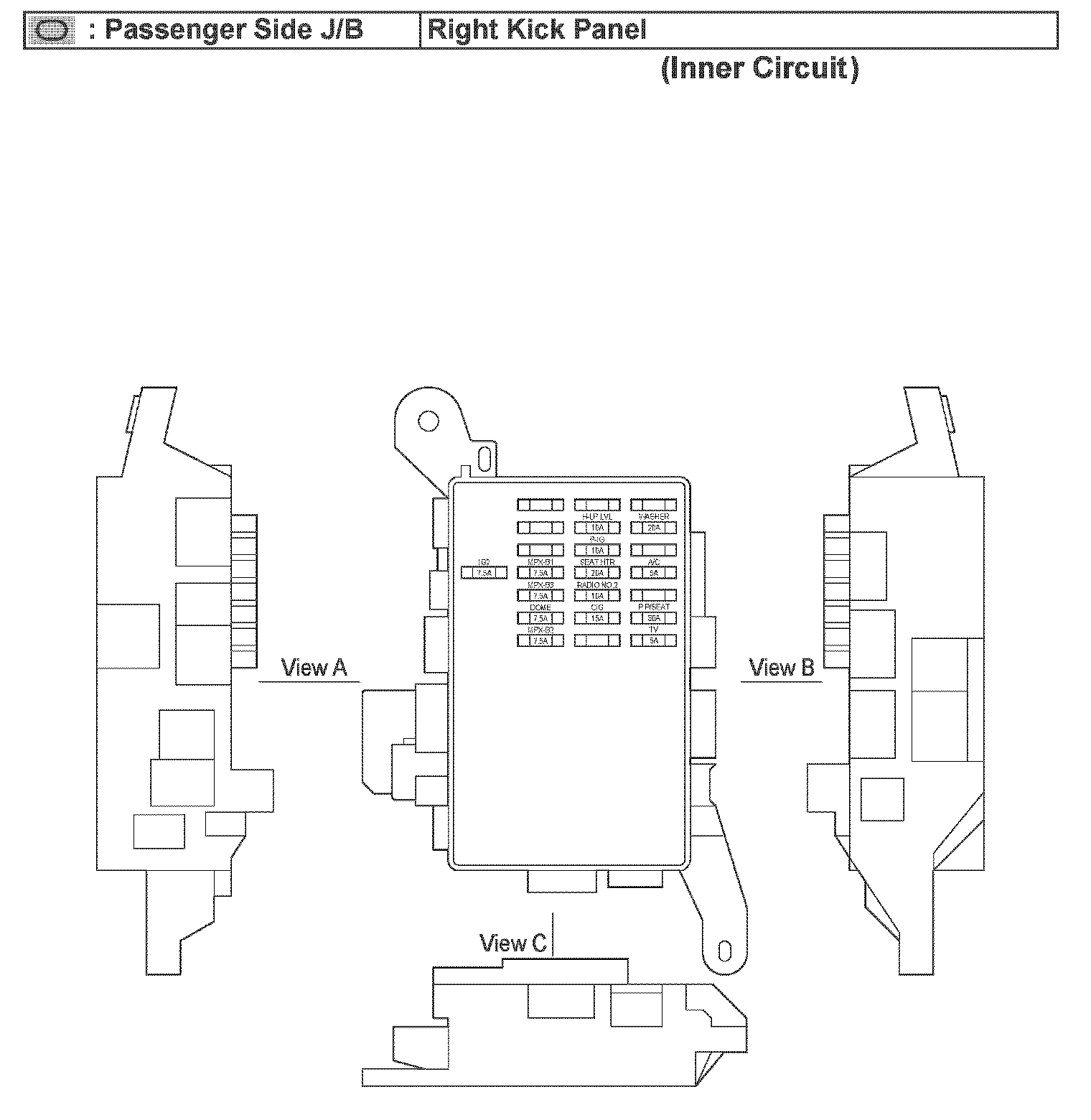

Passenger Side J/B - Right Kick Panel:

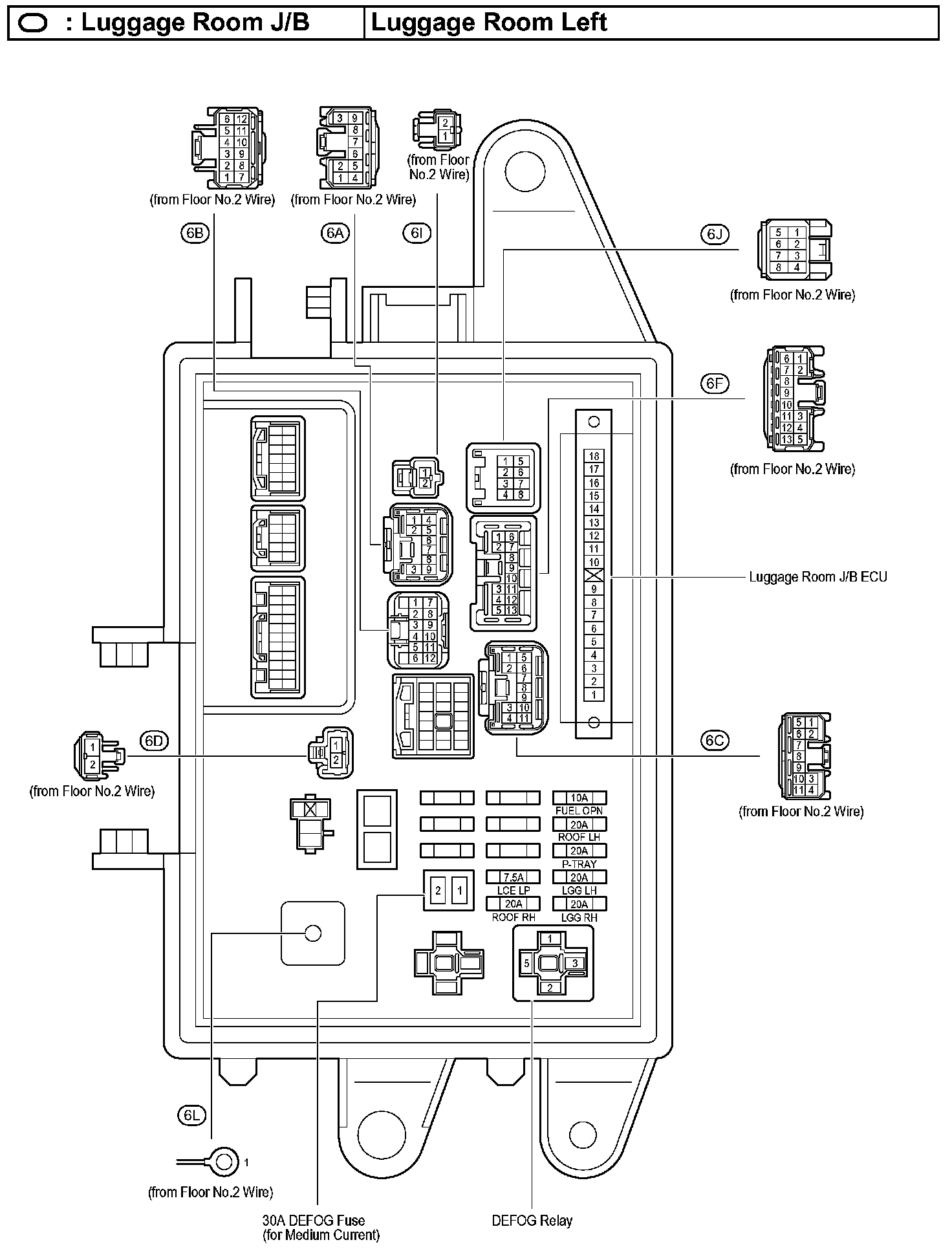

Luggage Room J/B - Luggage Room Left:
Fuse Details

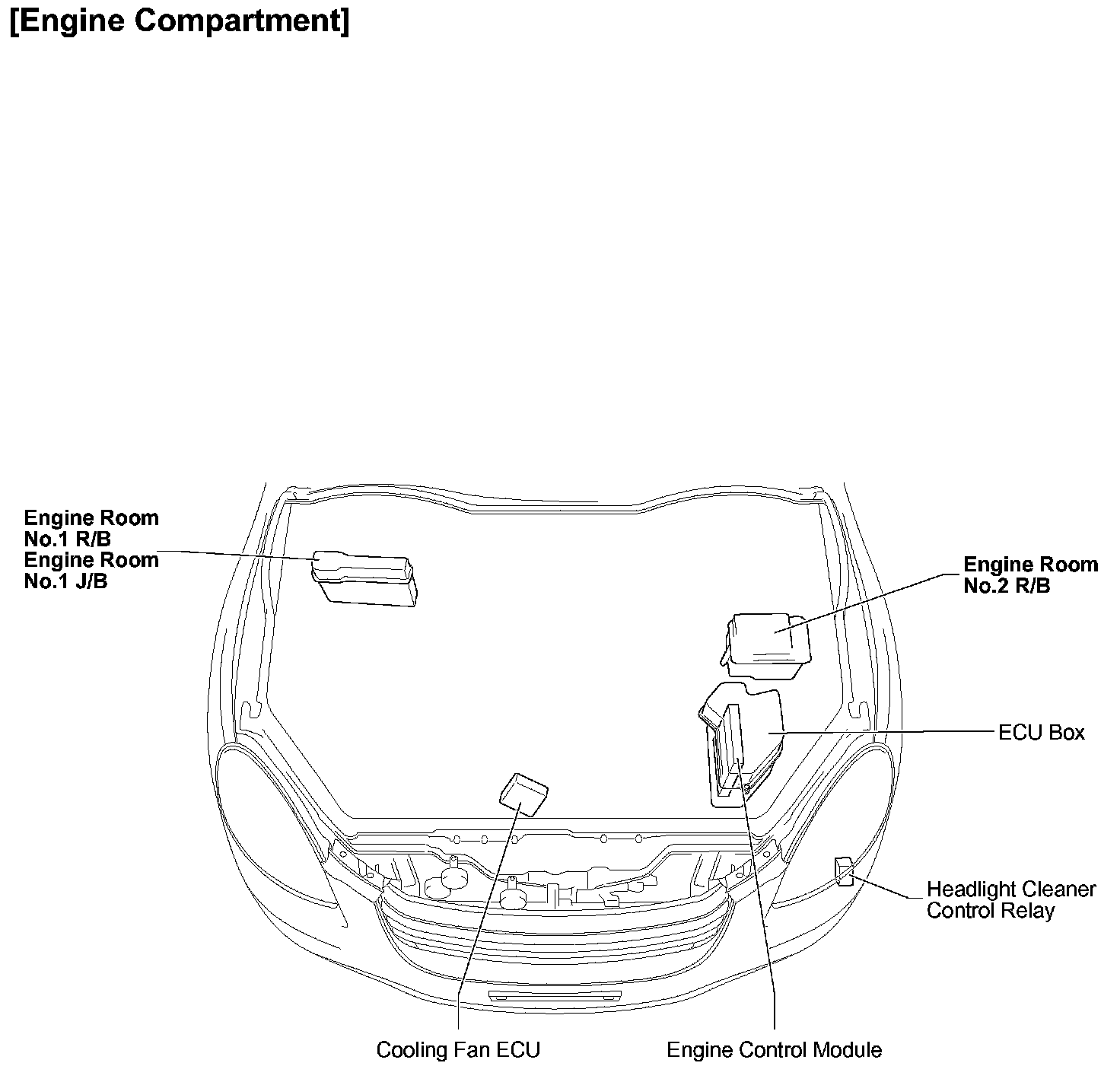

Engine Compartment:

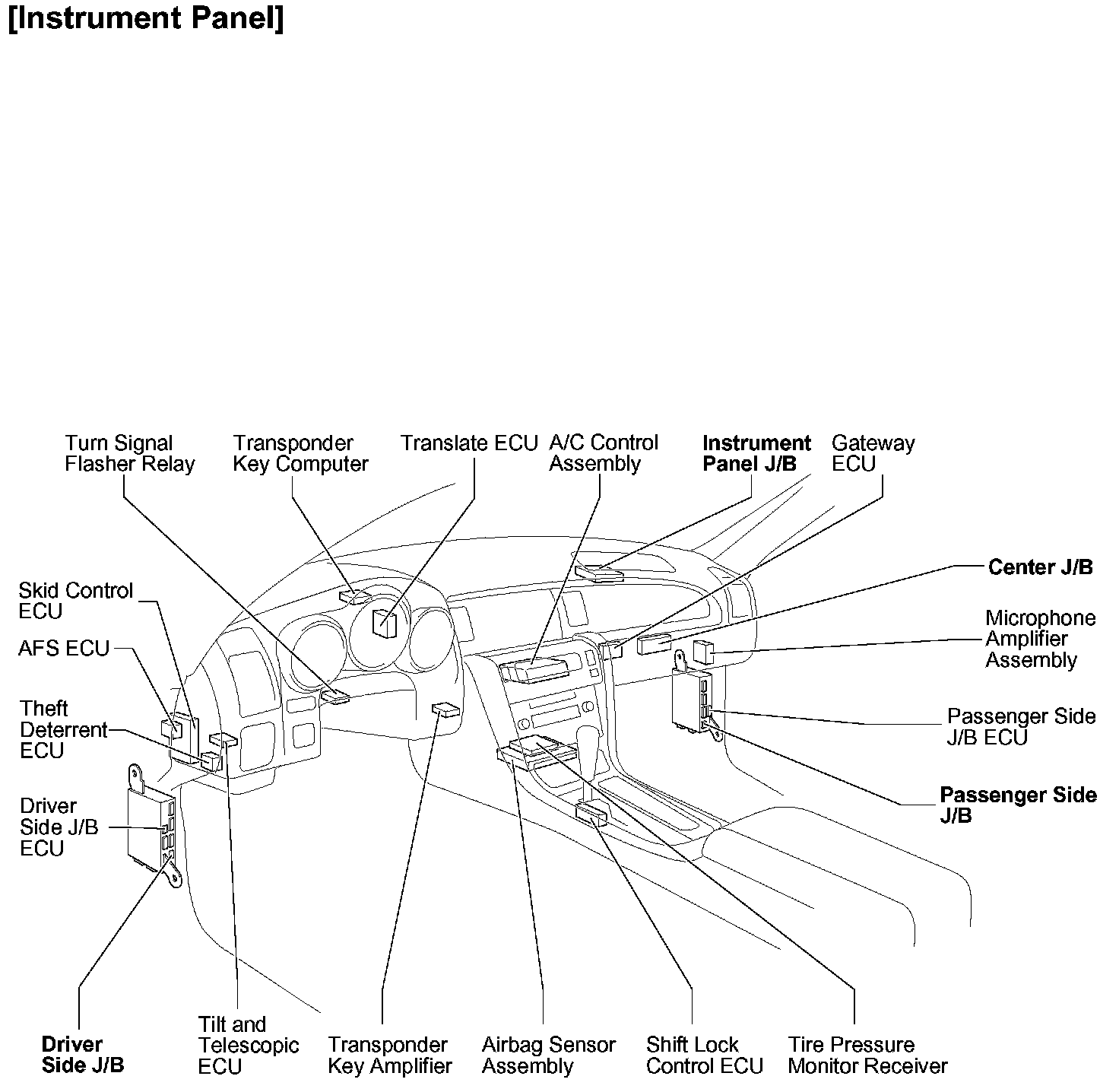

Instrument Panel:

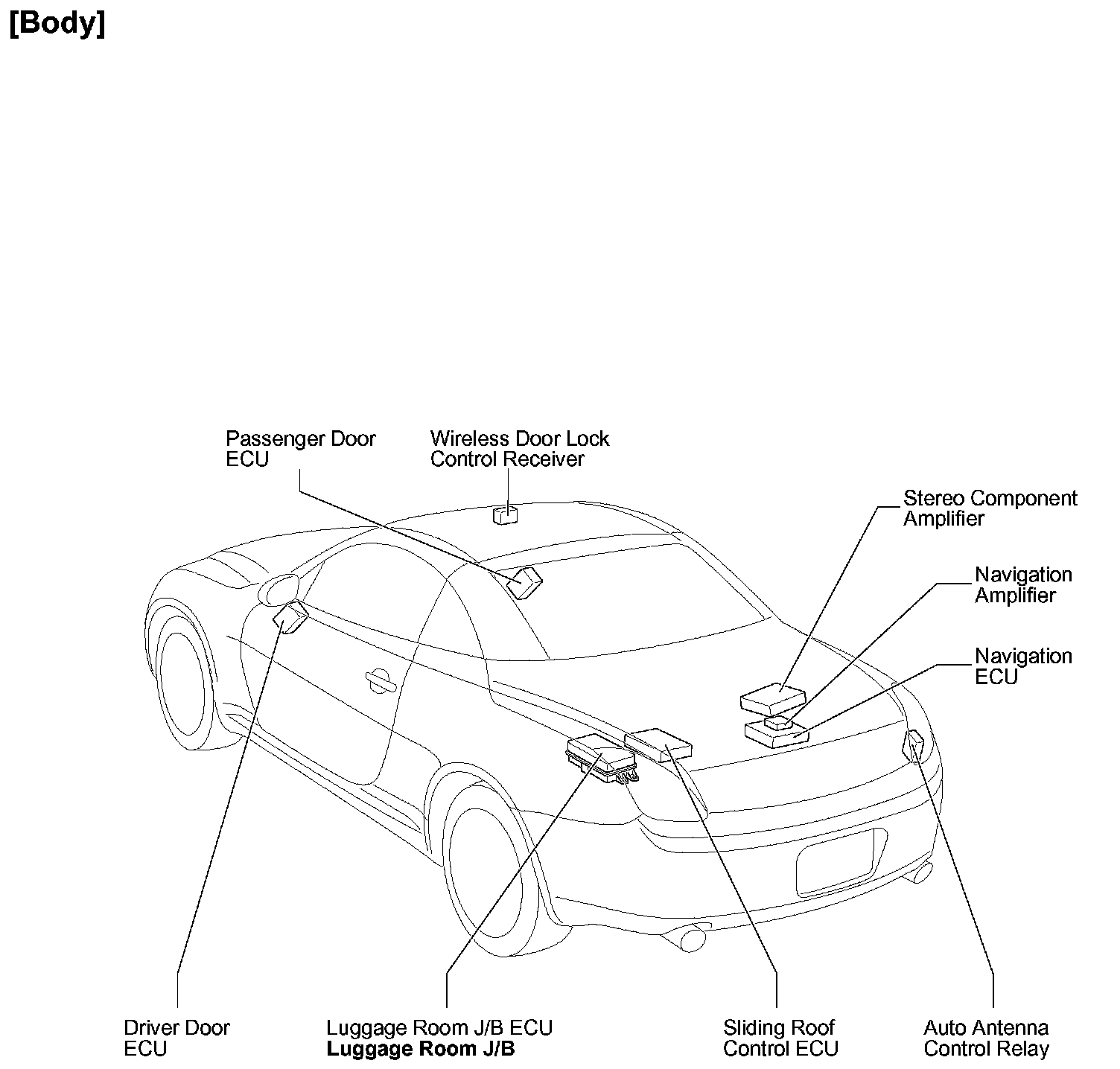

Body:
Locations
