Charging System: Location

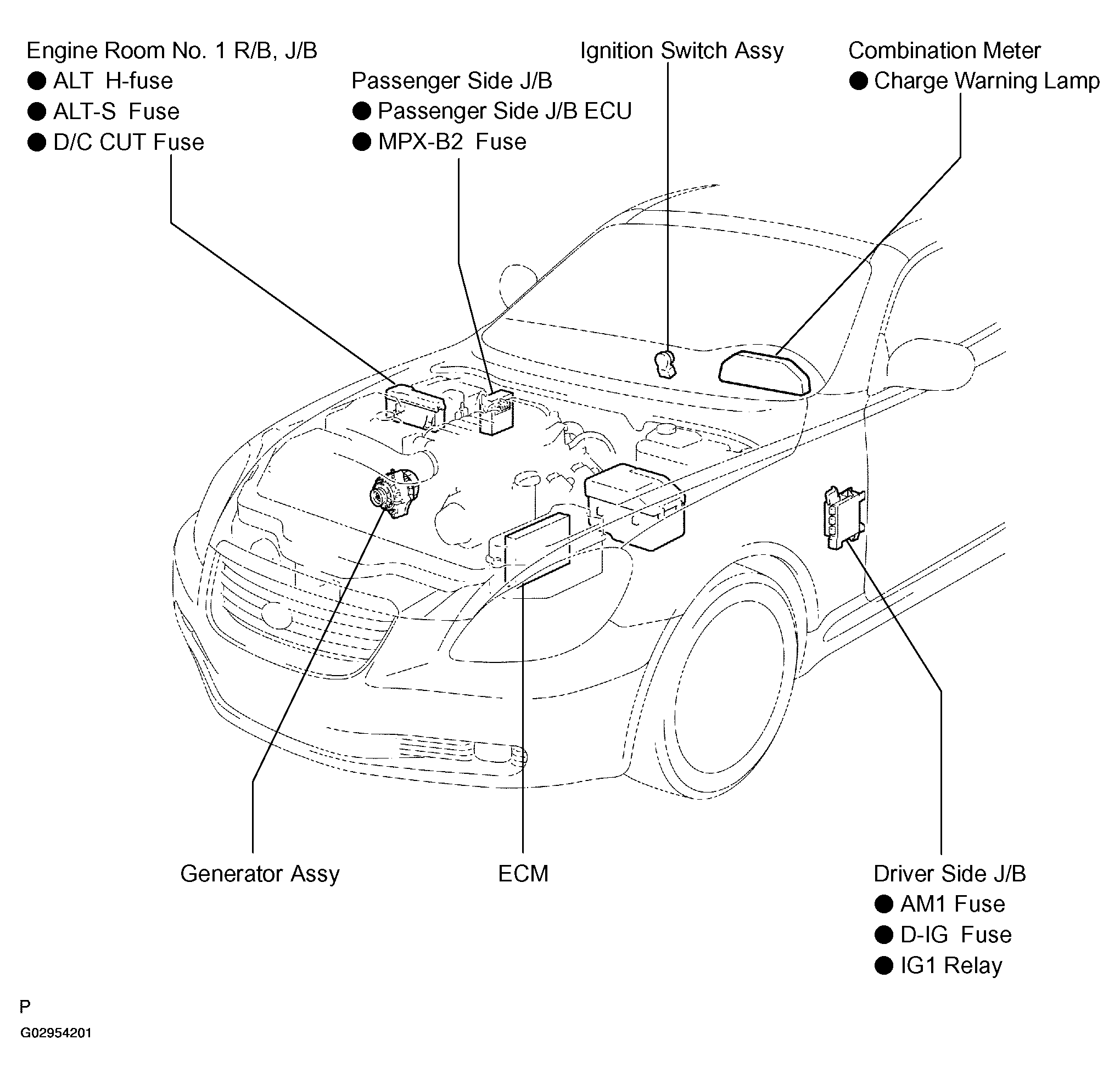

Fig 1: Identifying Location Of Charging System Components & Replacements
G02954201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
