Inspection Procedure

1. Disconnect the connector of pattern select switch.
2. Measure the resistance according to the value(s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   3 - Body ground	Below 1 Ω

   Fig 1: Identifying E11 Pattern Select Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )

OK: GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	3 - 7	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

   Fig 2: Inspecting Pattern Select Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE PATTERN SELECT SWITCH ASSY NO.1

OK: GO TO NEXT STEP

1. Connect the connector of pattern select switch.
2. Disconnect the passenger side junction block assy (multiplex network body ECU) connector.
3. Measure the resistance between terminal PWR of passenger side junction block assy (multiplex network body ECU) and body ground.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	P4-18 (PWR) - Body ground	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

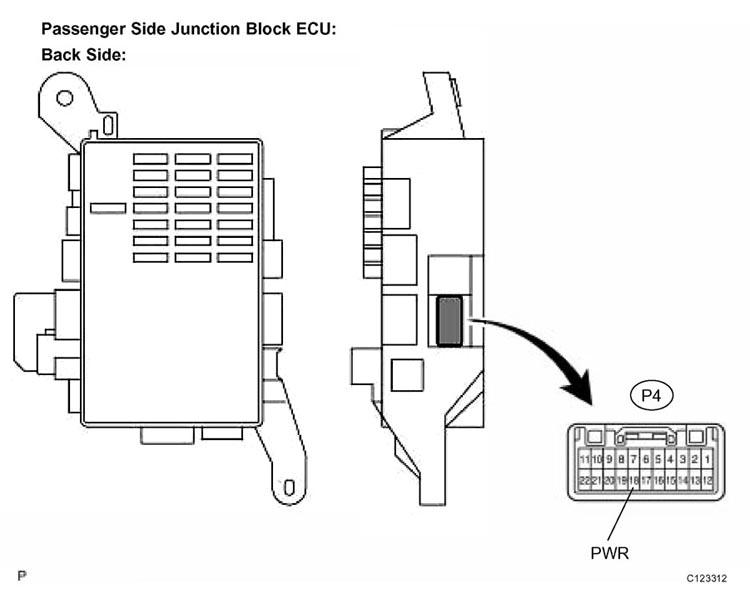

Fig 3: Identifying Passenger Side Junction Block ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
