Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

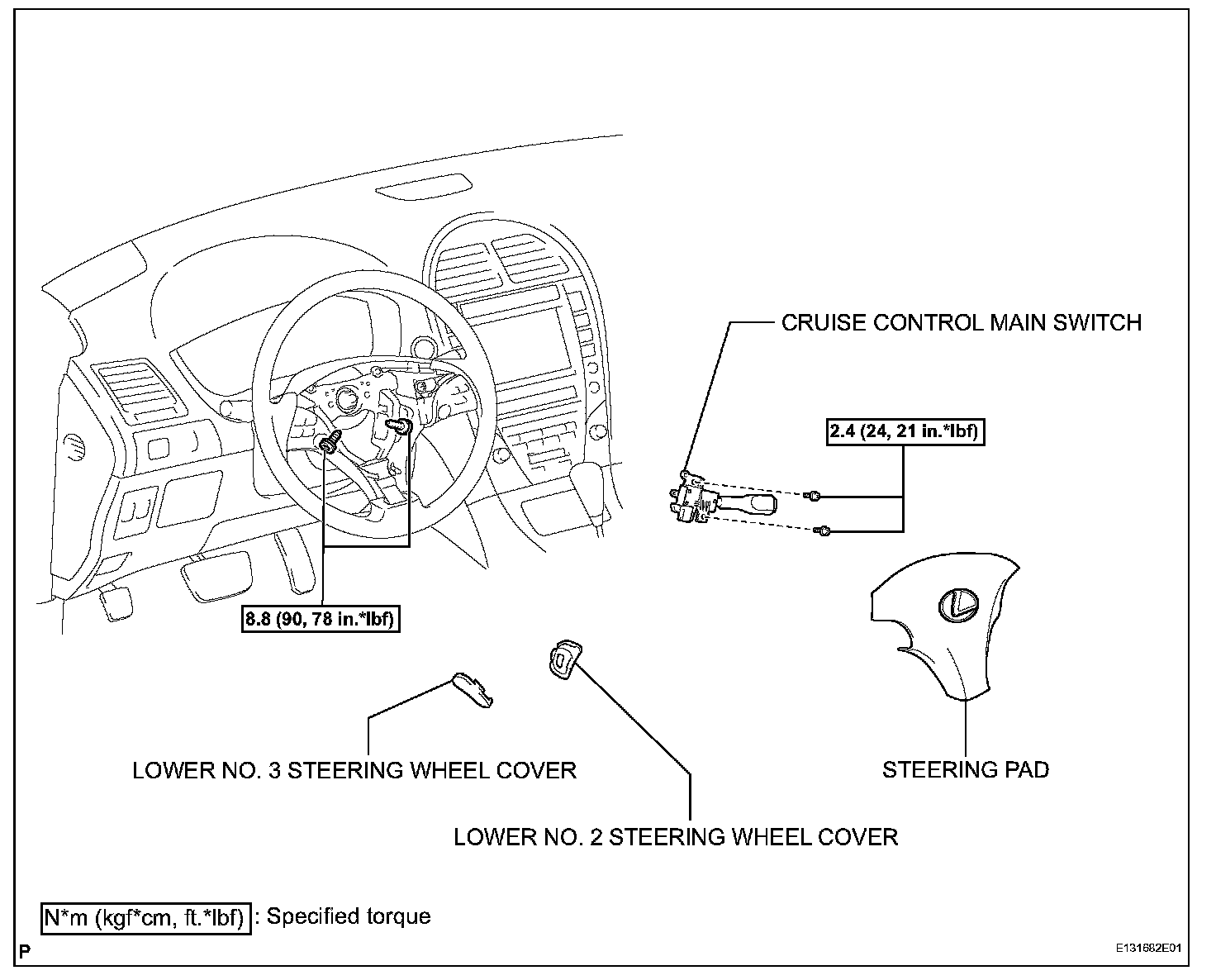

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER
3. REMOVE LOWER NO. 2 STEERING WHEEL COVER
4. REMOVE STEERING PAD

5. REMOVE CRUISE CONTROL MAIN SWITCH




a. Disconnect the connector.
b. Remove the 2 screws and the cruise control main switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH




a. Install the cruise control main switch with the 2 screws.

Torque: 2.4 N.m (24 kgf.cm, 21 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD
3. INSTALL LOWER NO. 2 STEERING WHEEL COVER
4. INSTALL LOWER NO. 3 STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT STEERING PAD
7. INSPECT SRS WARNING LIGHT
8. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
