Front Door Lock: Components

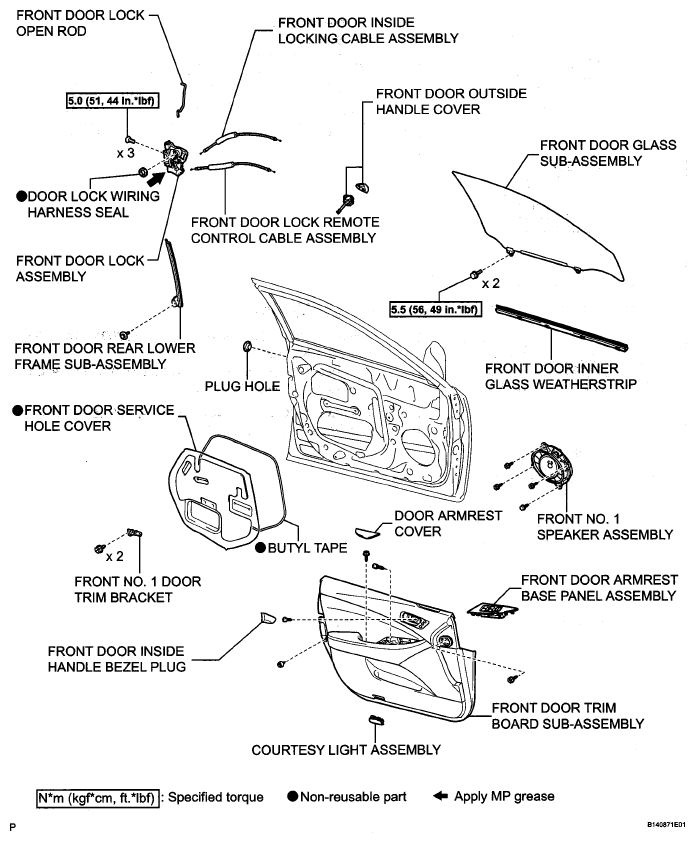

Fig 1: Front Door Lock Replacement Components With Torque Specifications
G05252789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
