Fuel Pump Resistor: Components: Notes

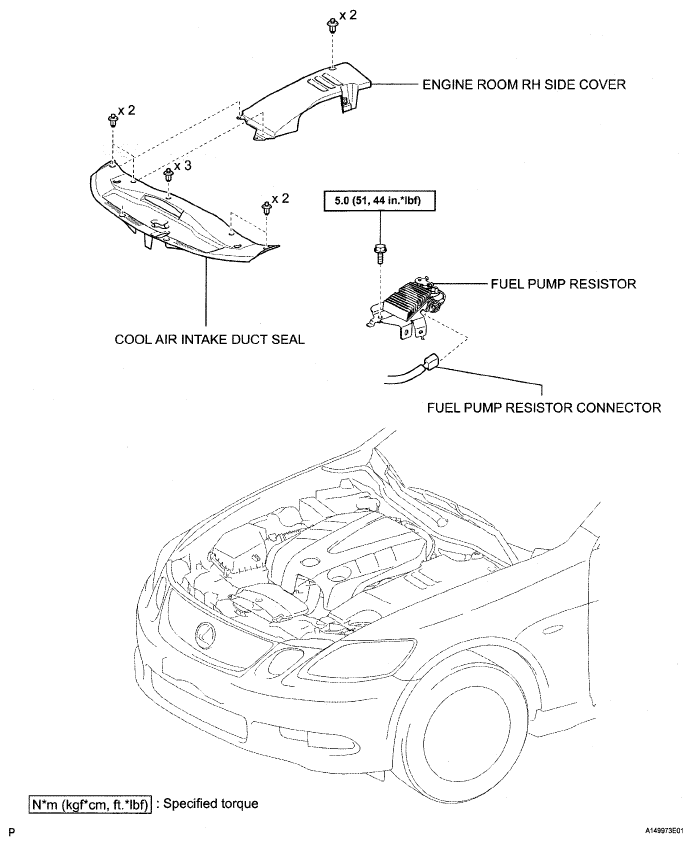

Fig 1: Fuel Pump Resistor Replacement Components With Torque Specifications
G05287058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
